Function test

Check whether steering column can be turned without catching or difficulty of movement.
Check whether length and height of steering column are adjustable.
Check whether a gap -dimension A- is present between carriage and mounting bracket.
If dimension -A- is larger than 0.5 mm, steering column is damaged and must be replaced.

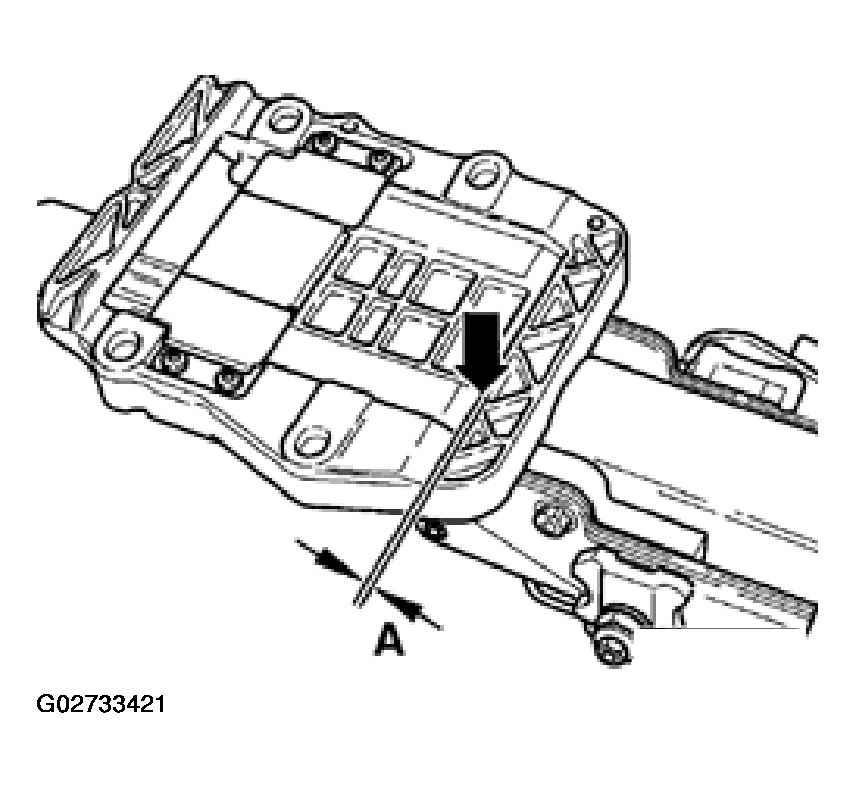

Fig 1: Checking Gap -Dimension A- Between Carriage And Mounting Bracket

Courtesy of AUDI OF AMERICA, INC.
