Steering column, removing and installing: Installing: Notes

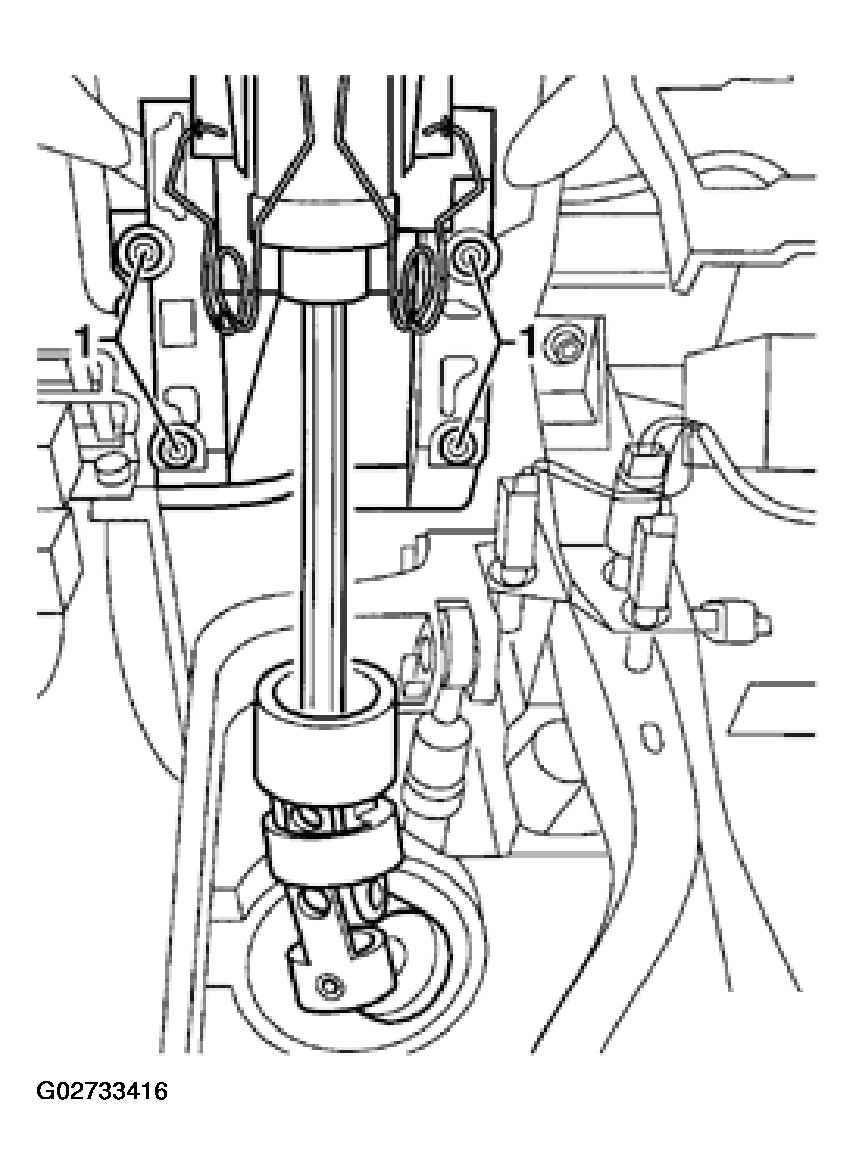

Fig 1: Attaching Steering Column To Crossmember

Courtesy of AUDI OF AMERICA, INC.

Attach universal joint to pinion gear of steering gear.
Insert locking screw (Torx T50) through lower part and pretension by counter clockwise.
Insert hex nut and tighten to 30 Nm.

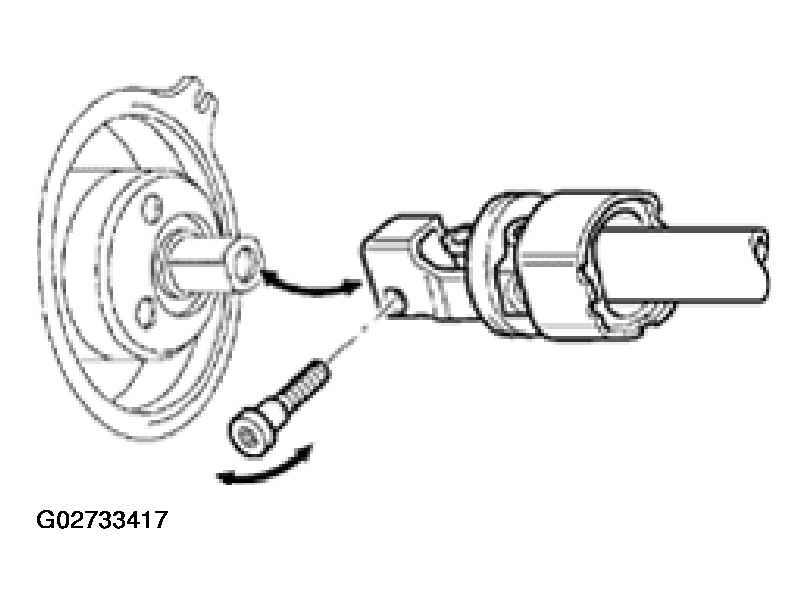

Fig 2: Attaching Universal Joint To Pinion Gear Of Steering Gear
Courtesy of AUDI OF AMERICA, INC.

For vehicles with automatic transmission, engage locking cable:
Switch ignition key to position -B- "Ignition ON" to engage locking cable.
Place selector lever in park position.
Insert locking cable -2- in ignition lock housing. Make sure locking bracket -1- engages.

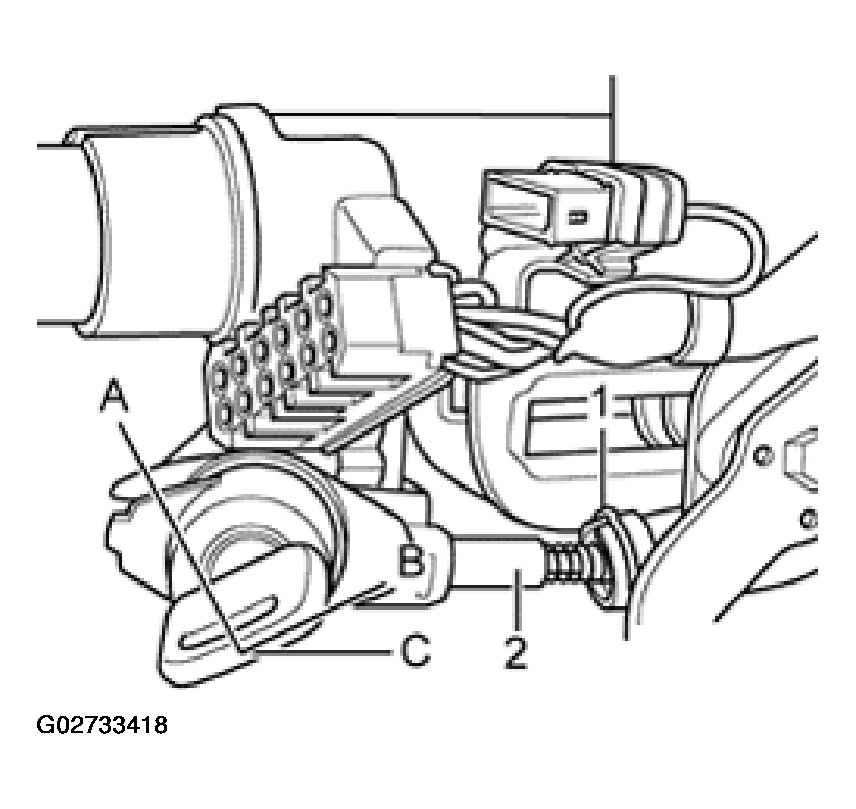

Fig 3: Engaging Locking Cable

Courtesy of AUDI OF AMERICA, INC.
