09G Transaxle

Requirements for checking ATF level are as follows:
- Transmission not in emergency running mode.
- Vehicle in horizontal position.
- Vehicle diagnostic, testing and information system VAS 5051 connected, vehicle self-diagnosis mode activated and vehicle system "02 - transmission electronics" selected.
- Air conditioner and heating must be switched off.
- At start of test, ATF temperature must not be higher than 30° C; allow transmission to cool down if necessary.
Using VAS 5051 (factory scan tool), or equivalent aftermarket scan tool, select diagnosis function "08-Read measured value block" from menu (1). See Fig 1 . Enter display group (maximum input value = 255). Enter "6" for "display group number 6" in zone "2", and confirm entry by pressing "Q" key. See Fig 2 . Read ATF temperature in display zone (1). See Fig 3 . Check ATF level once ATF temperature is 86° F (30° C).

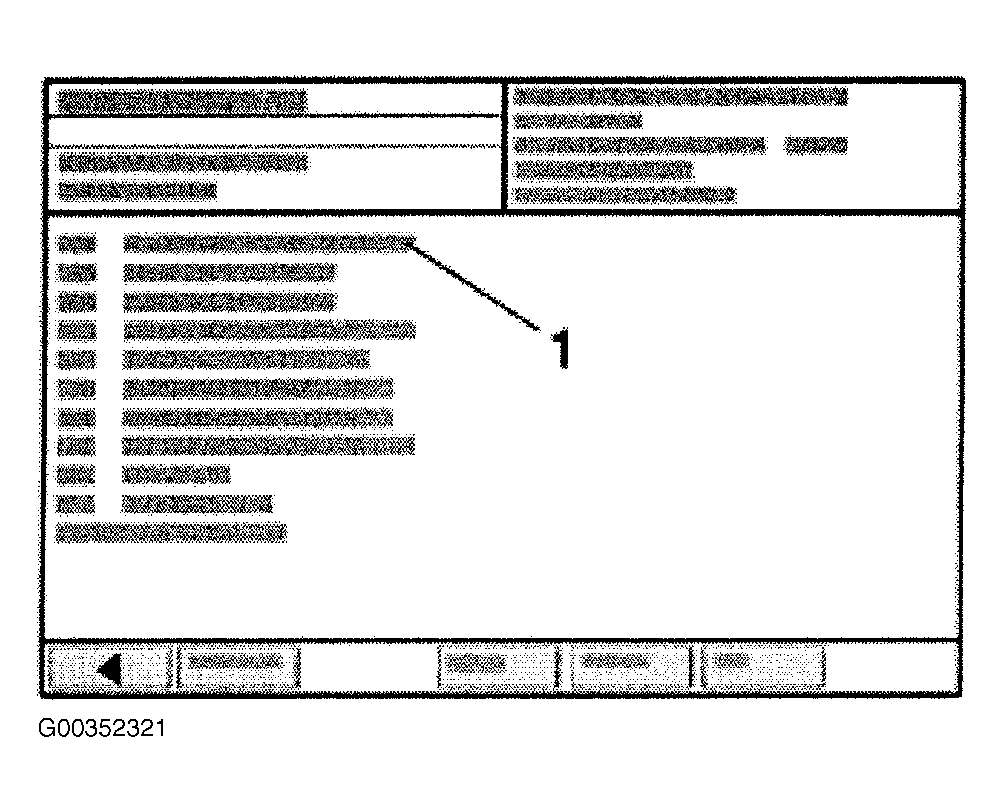

Fig 1: Identifying VAS 5051 Screen (1 Of 3)
Courtesy of AUDI OF AMERICA, INC.

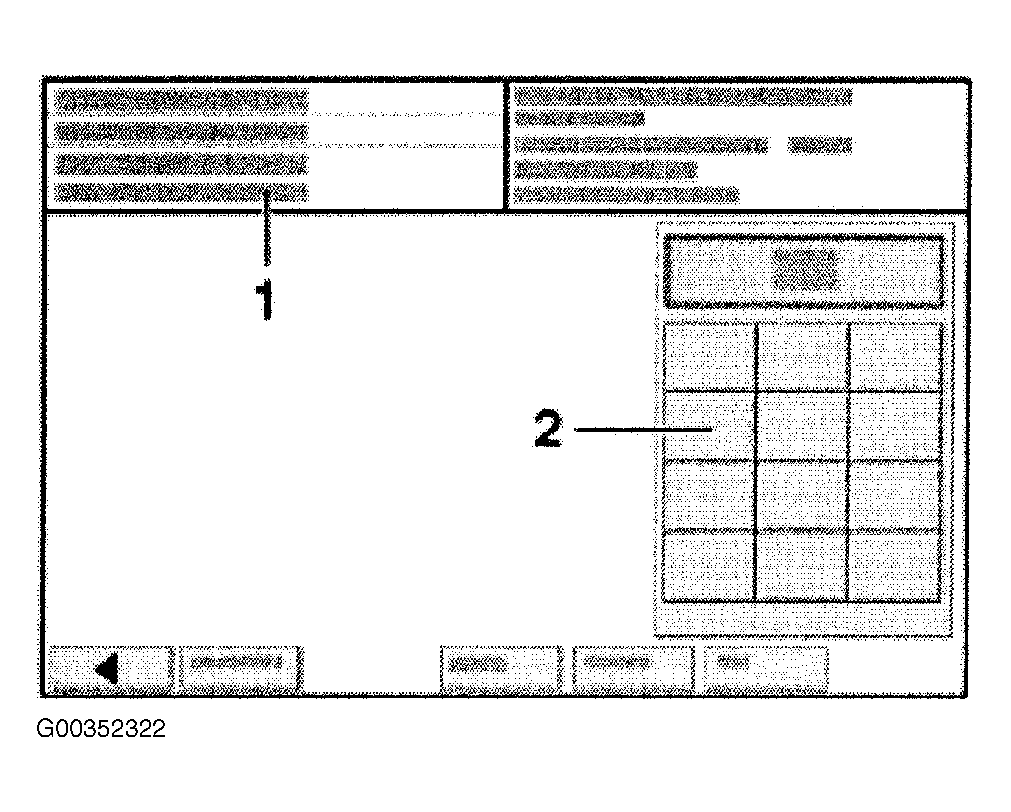

Fig 2: Identifying VAS 5051 Screen (2 Of 3)
Courtesy of AUDI OF AMERICA, INC.

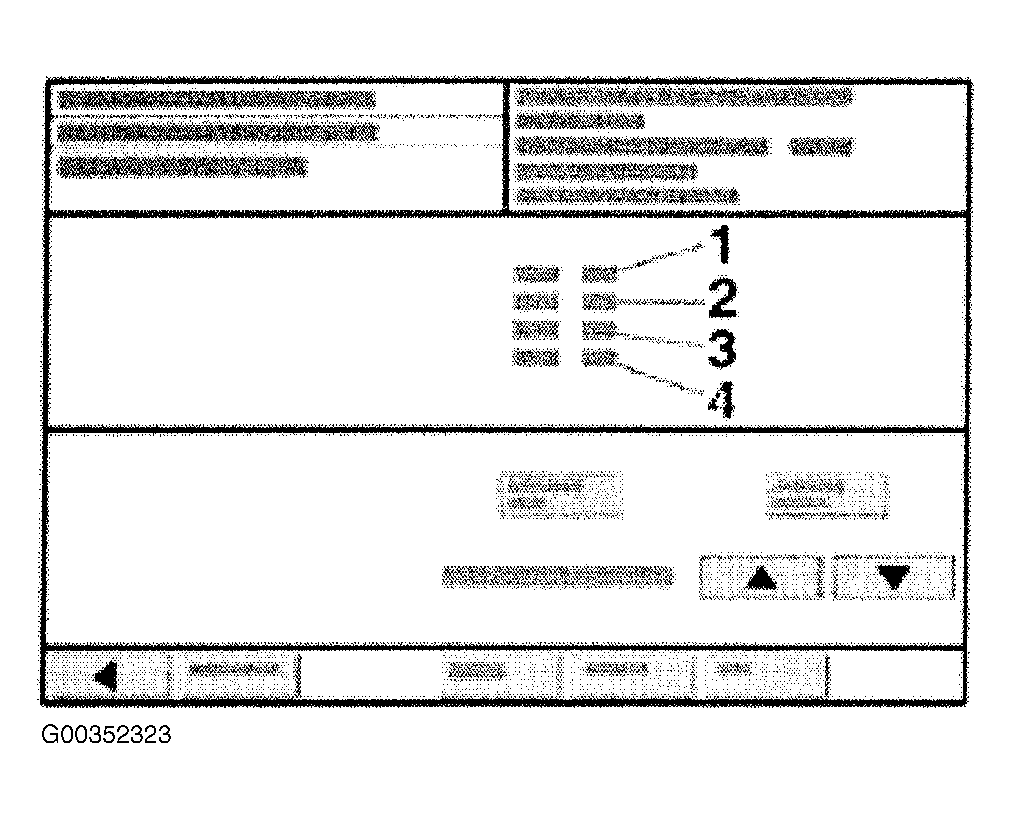

Fig 3: Identifying VAS 5051 Screen (3 Of 3)
Courtesy of AUDI OF AMERICA, INC.

WARNING: Radiator fan may switch on automatically. When working close to radiator, always maintain a certain distance from fan. There is a risk of injury. Wear protective goggles.

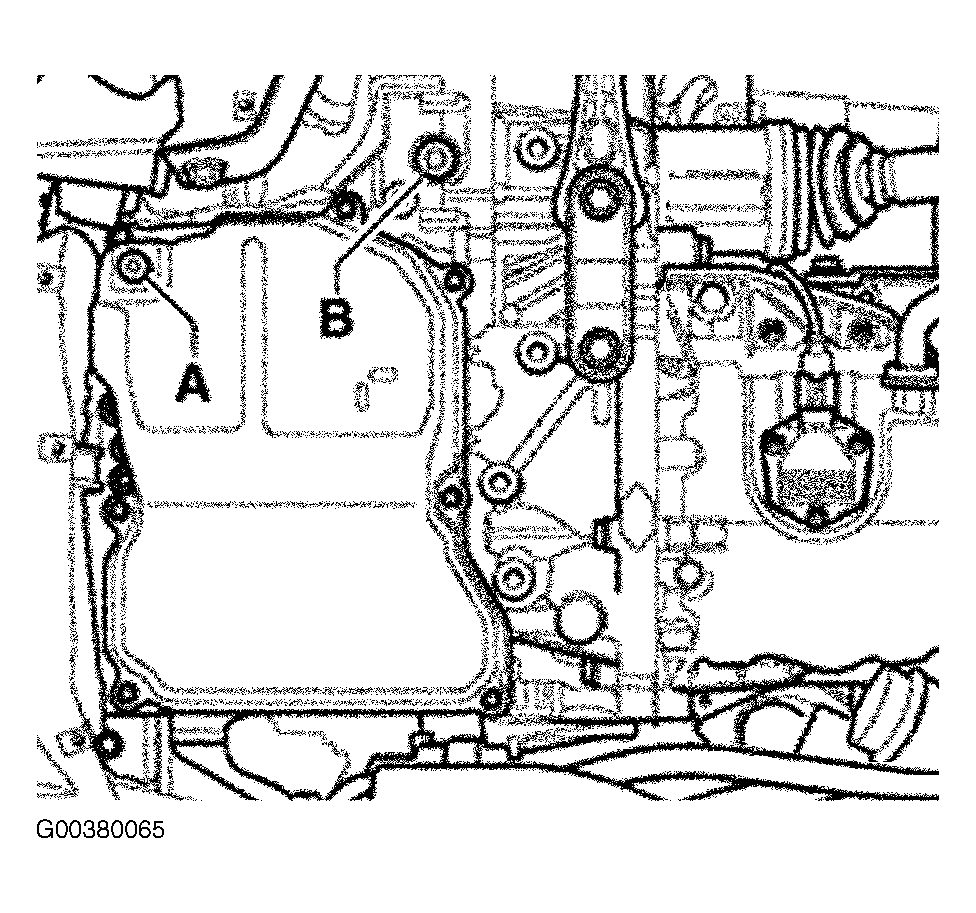

Fig 4: Locating ATF Inspection & Drain Plugs

Courtesy of AUDI OF AMERICA, INC.

Raise and support vehicle. Ensure vehicle is level. Place drip tray (V.A.G. 1306) underneath transmission. Start engine and let idle. Once ATF temperature reaches 95° F (35° C), unscrew ATF inspection plug (A). See Fig 4 .

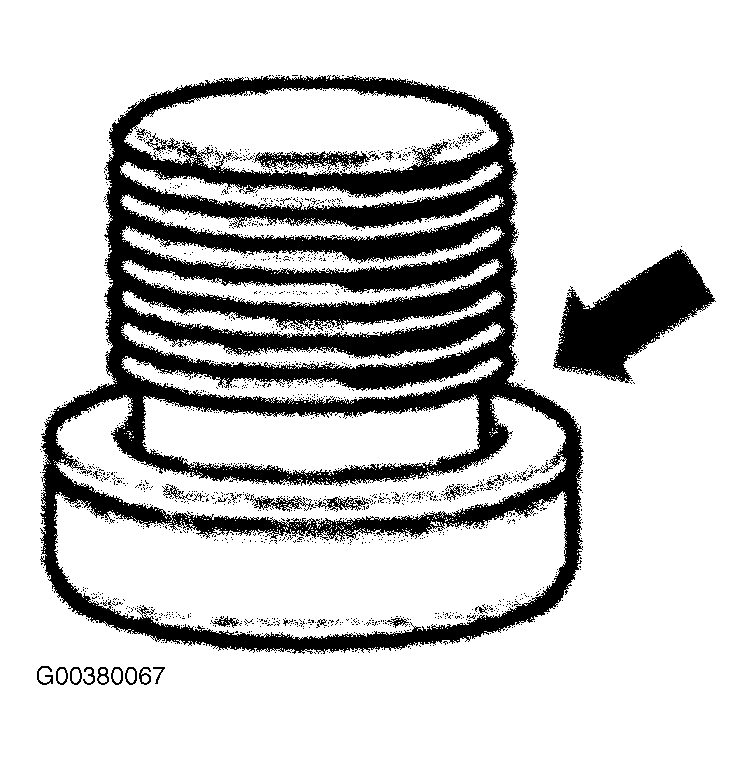

NOTE: Always replace seal for ATF inspection plug. See Fig 5 .

NOTE: ATF inspection plug must be screwed in before ATF reaches 113° F (45° C), or 122° F (50° C) for tropical countries.

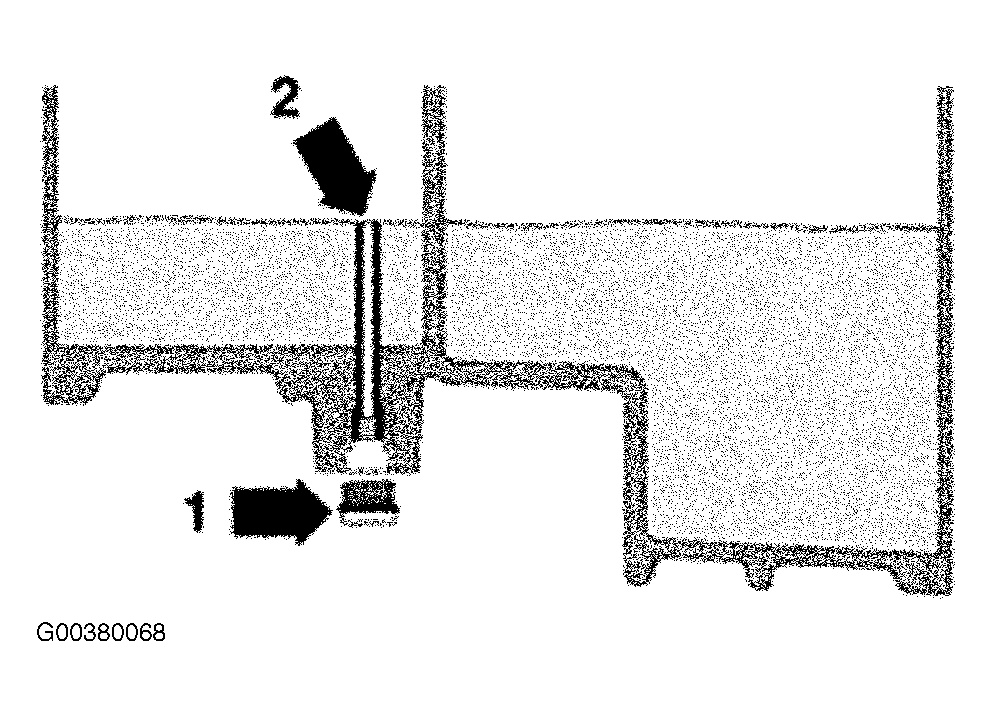

Fig 5: Locating Inspection Plug Seal

Courtesy of AUDI OF AMERICA, INC.

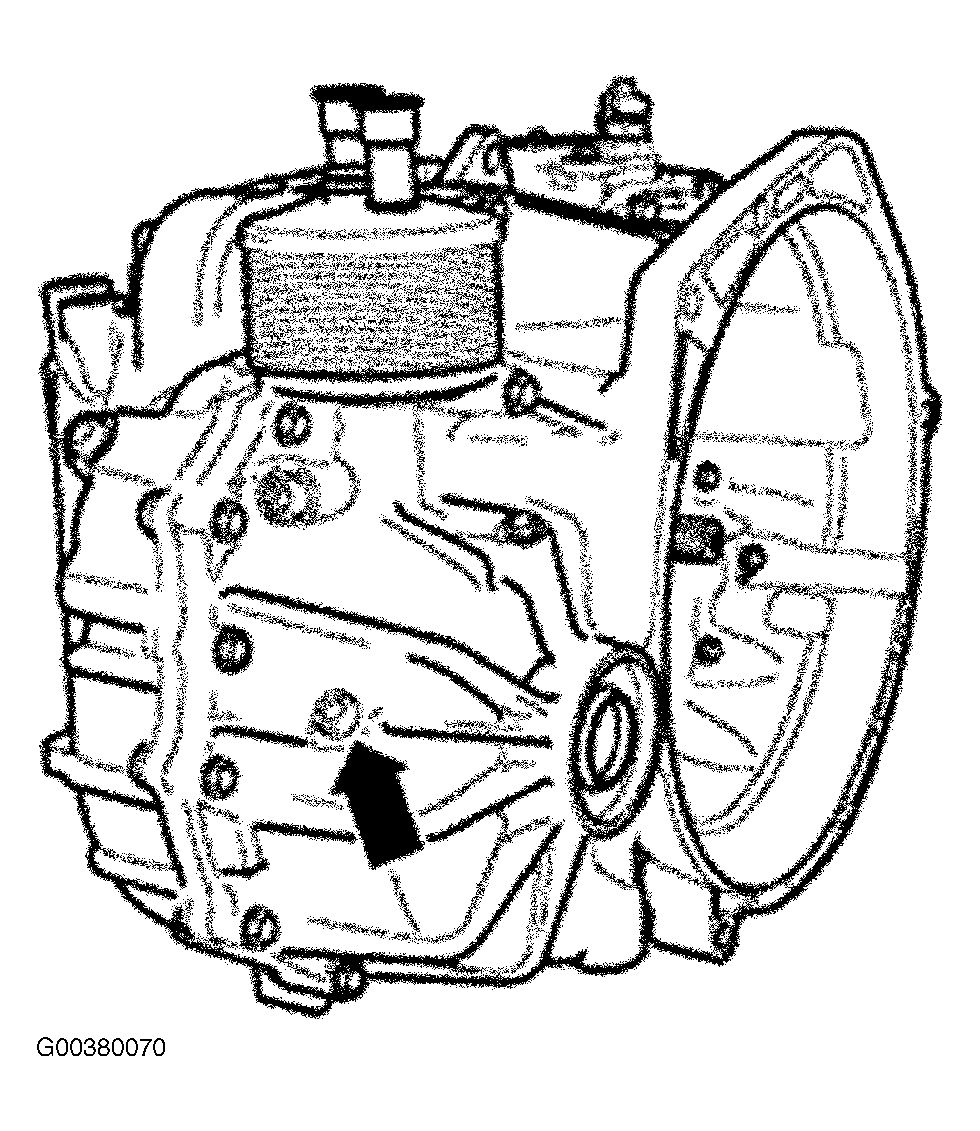

Fig 6: Locating ATF Overflow Pipe & Inspection Plug

Courtesy of AUDI OF AMERICA, INC.

ATF present in overflow pipe (arrow "2") will leak when inspection plug is removed. See Fig 6 . If ATF drains from inspection hole before ATF has reached 104° F (40° C), ATF level is OK. Tighten ATF inspection plug with NEW seal to specification. See TORQUE SPECIFICATIONS .
If no ATF emerges from inspection hole before ATF has reached 113° F (45° C), top off ATF.

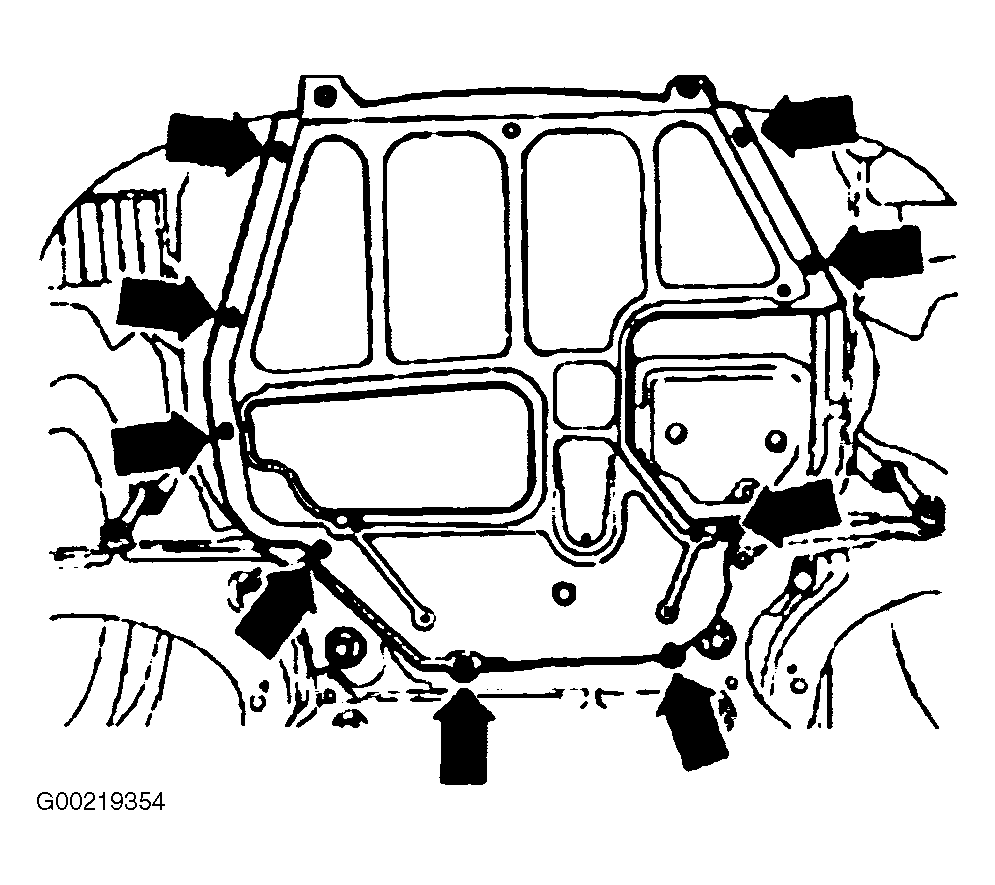

Remove sound insulation tray (arrows). See Figure .
Using Torx socket head (T55), remove filler plug (arrow). See Figure . Filler plug seal MUST always be replaced.

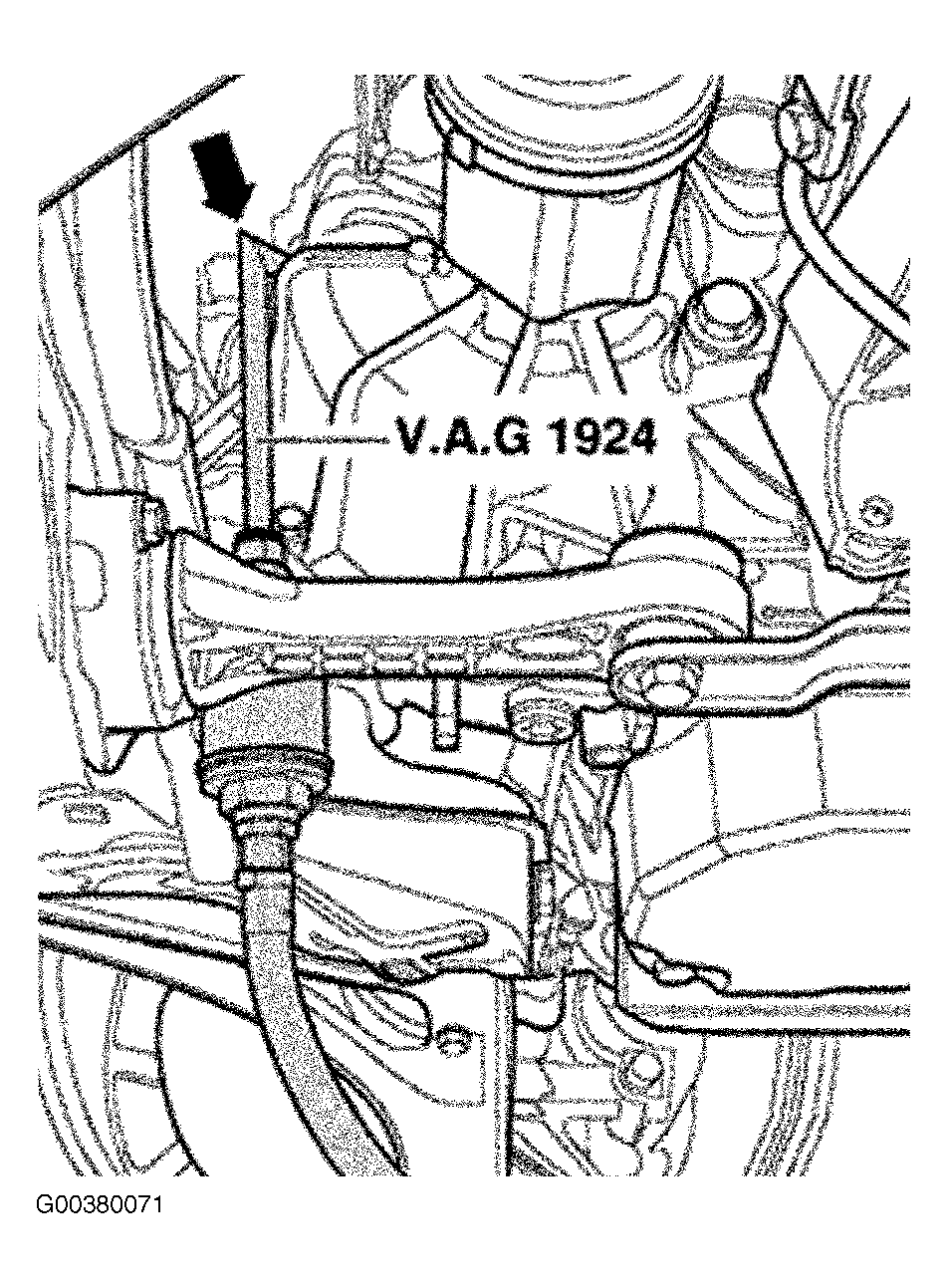

Attach hook of filler system (V.A.G. 1924) in filler plug hole (arrow). See Figure . Top off ATF until ATF emerges via overflow pipe (arrow "2") from inspection hole. See Fig 6 .
Install ATF inspection plug. Tighten ATF inspection plug to specification. See TORQUE SPECIFICATIONS . Install sound insulation tray.
Once ATF level is OK, exit function "08 - Read measured value block" by pressing "left arrow" key. Switch ignition off and disconnect Data Link Connector.
