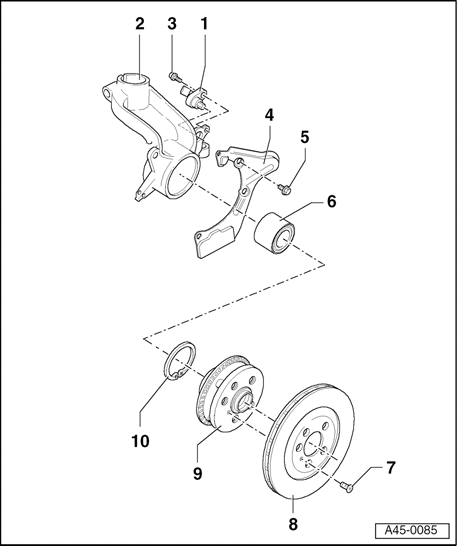

Exploded view
1 - ABS wheel speed sensor
- Removing and installing. Refer to ABS wheel speed sensor, removing and installing
- Before installing speed sensor, clean inner surface of hole and coat speed sensor all around with lubricant paste G 000 650
- Replacing speed sensor wire. Refer to Wheel speed sensor wire, replacing
2 - Wheel bearing housing
3 - Hex socket-head screw 8 Nm
4 - Backing plate
5 - Hex bolt, 10 Nm
- Tightening torque. Refer to Exploded view
6 - Wheel bearing
- Removing and installing
Refer to 40 FRONT SUSPENSION
7 - Phillips-head screw
- Tightening torque. Refer to Exploded view
8 - Brake disc
- Application. Refer to Application of PR Nos./brakes
9 - Wheel hub with rotor
- Checking rotor. Refer to Rotor, checking
- Only replace complete
Refer to 40 FRONT SUSPENSION
10 - Circlip
