Rear Toe Adjustment

Before attempting toe adjustment, see PRELIMINARY CHECKS  and WHEEL ALIGNMENT WORK SEQUENCE  . Loosen toe eccentric securing nut (C). Adjust toe by turning eccentric bolt (D) to specified value. See WHEEL ALIGNMENT SPECIFICATIONS  . See Fig 1 . Tighten nut, and recheck alignment angles after adjustments.

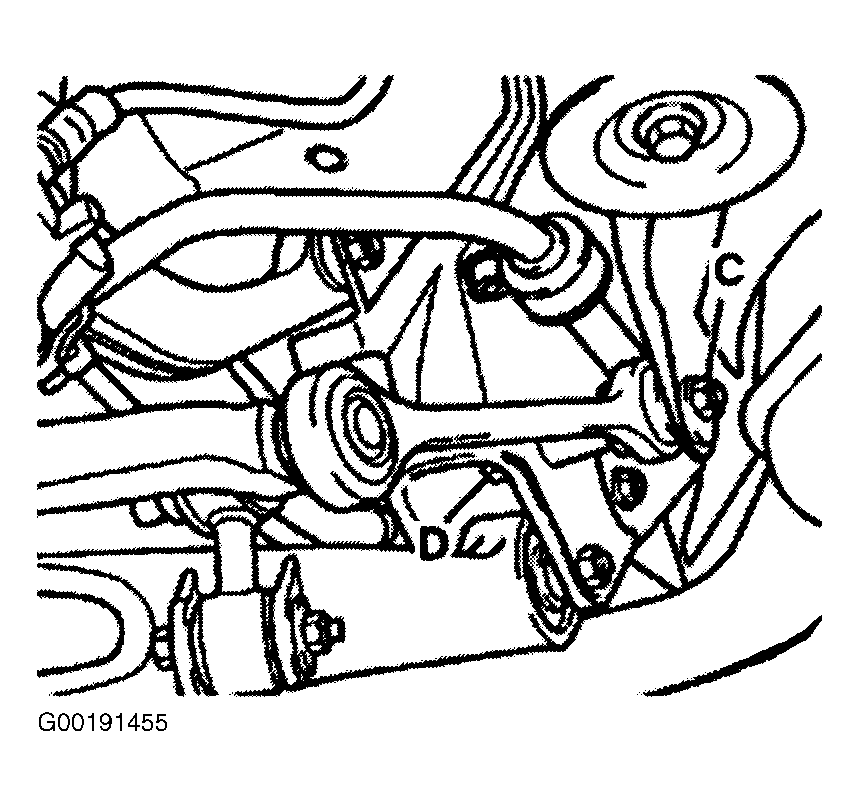

Fig 1: Locating & Adjusting Rear Toe At Eccentric Bolt

Courtesy of AUDI OF AMERICA, INC.
