Camber Adjustment (Rear)

Before attempting any adjustments, see PRELIMINARY CHECKS  and WHEEL ALIGNMENT WORK SEQUENCE  . Loosen eccentric retaining nut (A) located on the lower rear control arm. See Fig 1 . Set camber by turning eccentric bolt (B) until specified camber value is met. See WHEEL ALIGNMENT SPECIFICATIONS  . Tighten eccentric nut. Recheck rear camber after adjustment.

NOTE: Maximum adjustment range is 90 degrees to the left or right of the center position.

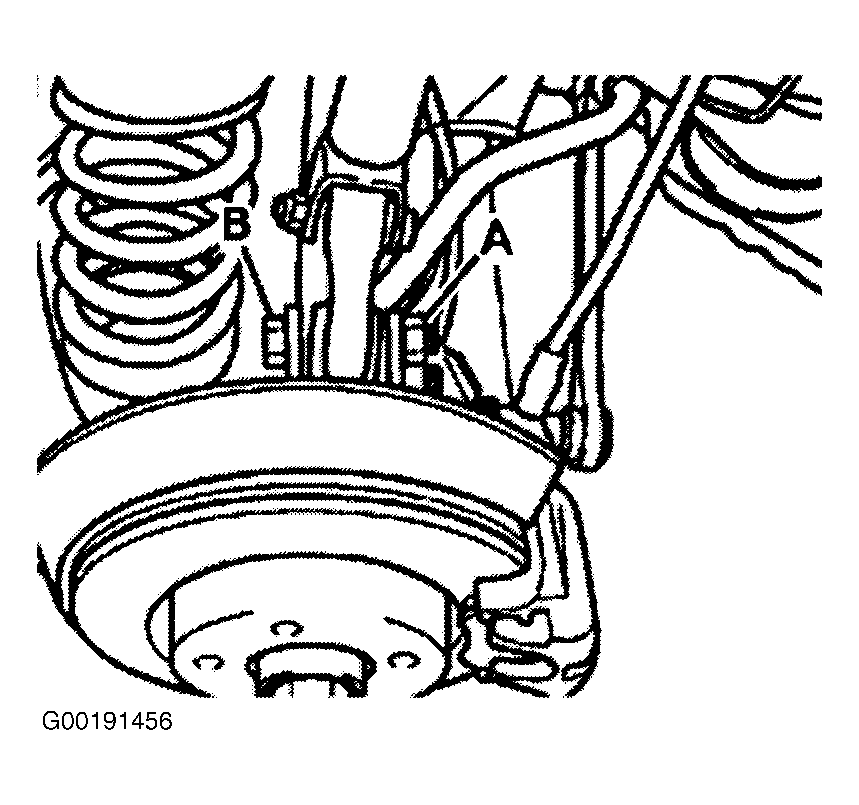

Fig 1: Adjusting Read Camber At Eccentric Bolt
G00191456Courtesy of AUDI OF AMERICA, INC.
