Frame & Underbody

The vehicle may only be lifted at the points shown in order to prevent damaging the floor of the vehicle and to prevent the vehicle from tipping. See Fig 1 . The vehicle should NEVER be lifted by the engine oil pan, the transmission, or the front or rear subframe. Otherwise major damage may be caused.

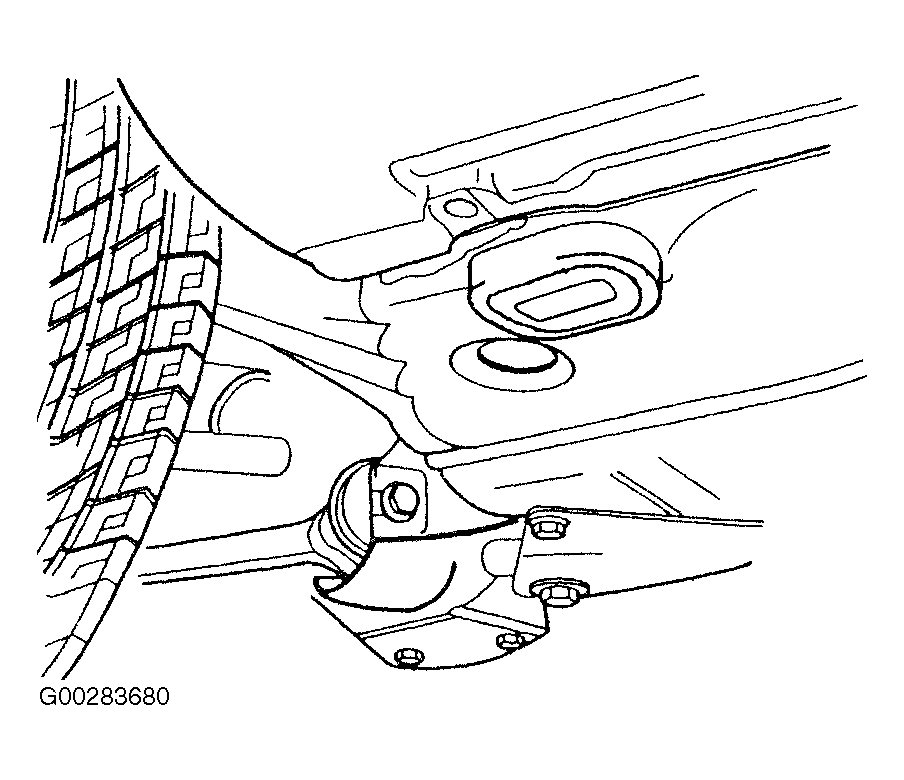

Fig 1: Identifying Vehicle Lift Points

Courtesy of AUDI OF AMERICA, INC.
