Test requirements: Notes

• Fuses for engine electronics OK
• Fuel Pump (FP) relay OK

• Connect VAS5051 tester or VAG1551 scan tool and select control module for engine electronics using "address word" 01. Ignition must remain switched ON for this.

  Indicated on display:

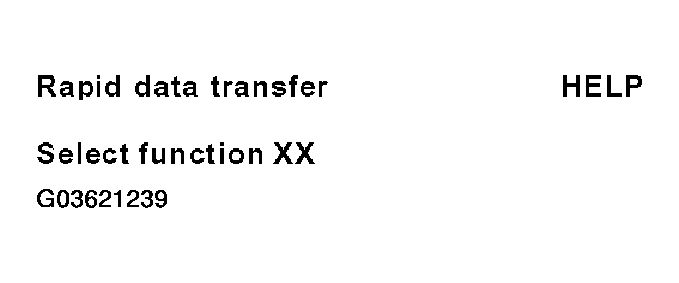

  Fig 1: VAG1551 Scan Tool Display - Output Diagnostic Test Mode: Engine Code AYS (1 Of 2)

  Courtesy of AUDI OF AMERICA, INC.
• Press buttons -0- and -3- to select "Output Diagnostic Test Mode (DTM)" function 03.

  Indicated on display:

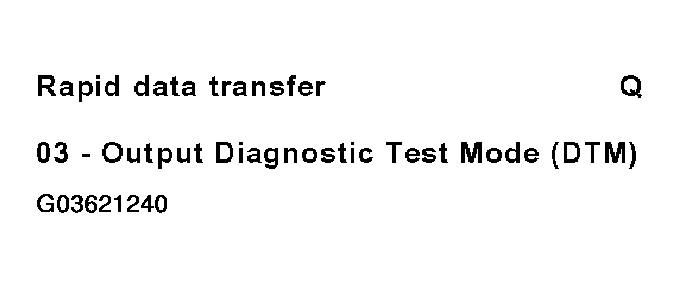

  Fig 2: VAG1551 Scan Tool Display - Output Diagnostic Test Mode: Engine Code AYS (2 Of 2)

  Courtesy of AUDI OF AMERICA, INC.
• Press -Q- button to confirm input.
