Test table: display group 6 (006)

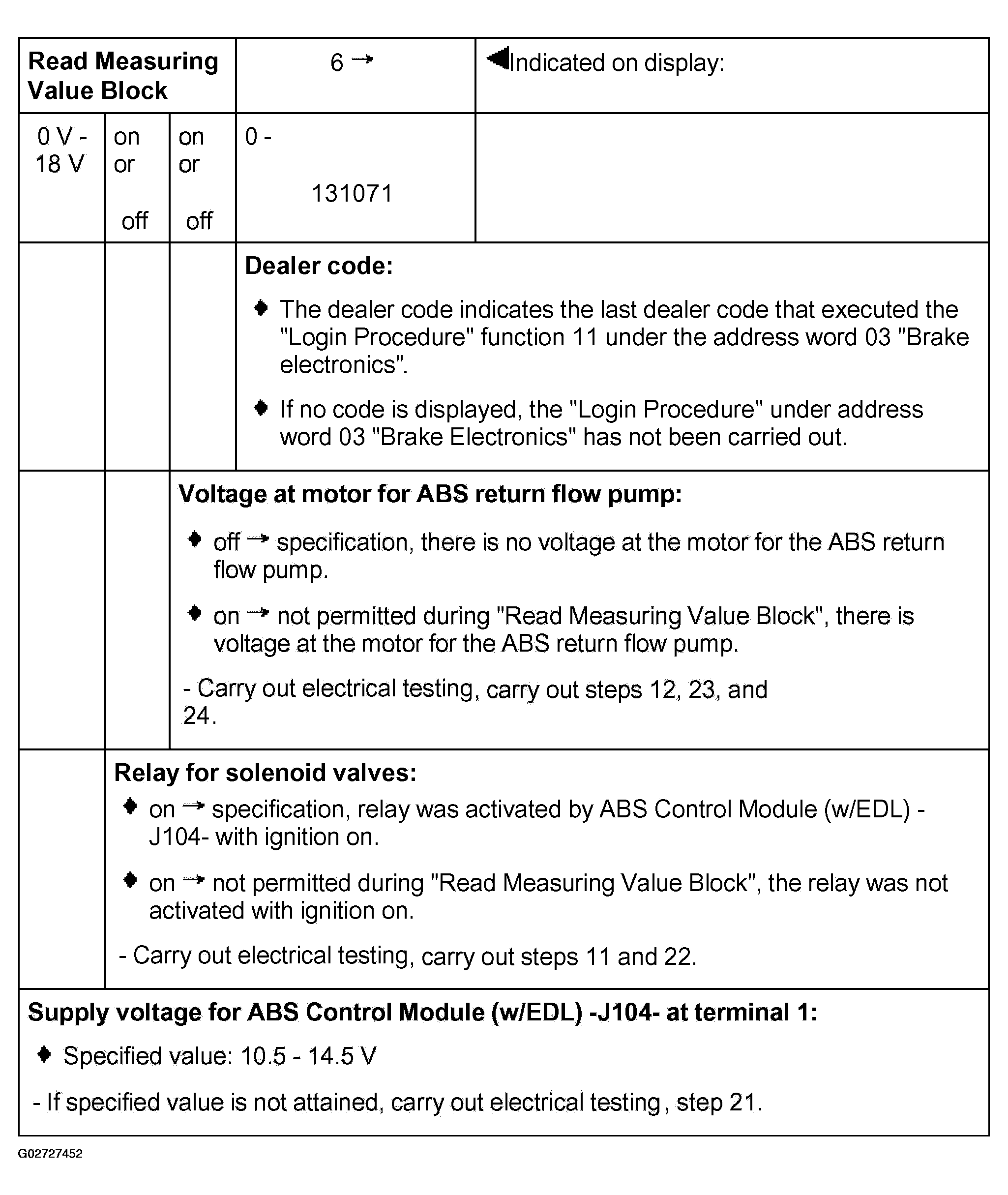

Fig 1: Test Table: Display Group 6 (006) - Bosch

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .
For "Login Procedure", see LOGIN PROCEDURE (SCAN TOOL FUNCTION 11) .

NOTE: The display group numbers can be selected in sequence by pressing buttons <-1 and 3-> on the VAG1551 scan tool, arrow buttons "UP" and "DOWN" on the VAG1552 scan tool, or the arrow buttons => and => on the screen of the VAS5051 tester.

Press -C- button to input display group number manually.

Indicated on display

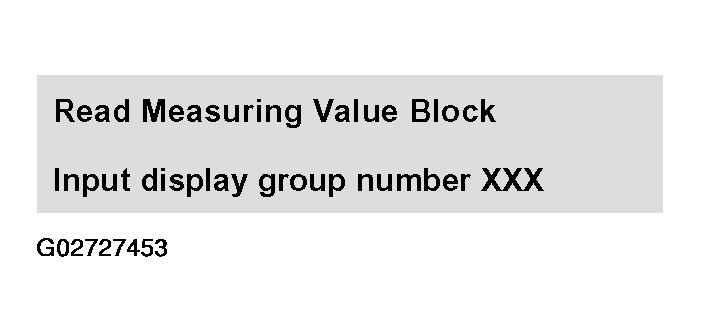

Fig 2: VAG Scan Tool Display - Measuring Value Block, Bosch 5.3 (Input Group Number)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -5-.
Press the -Q- button to confirm input.
