Test table: display group 4 (004)

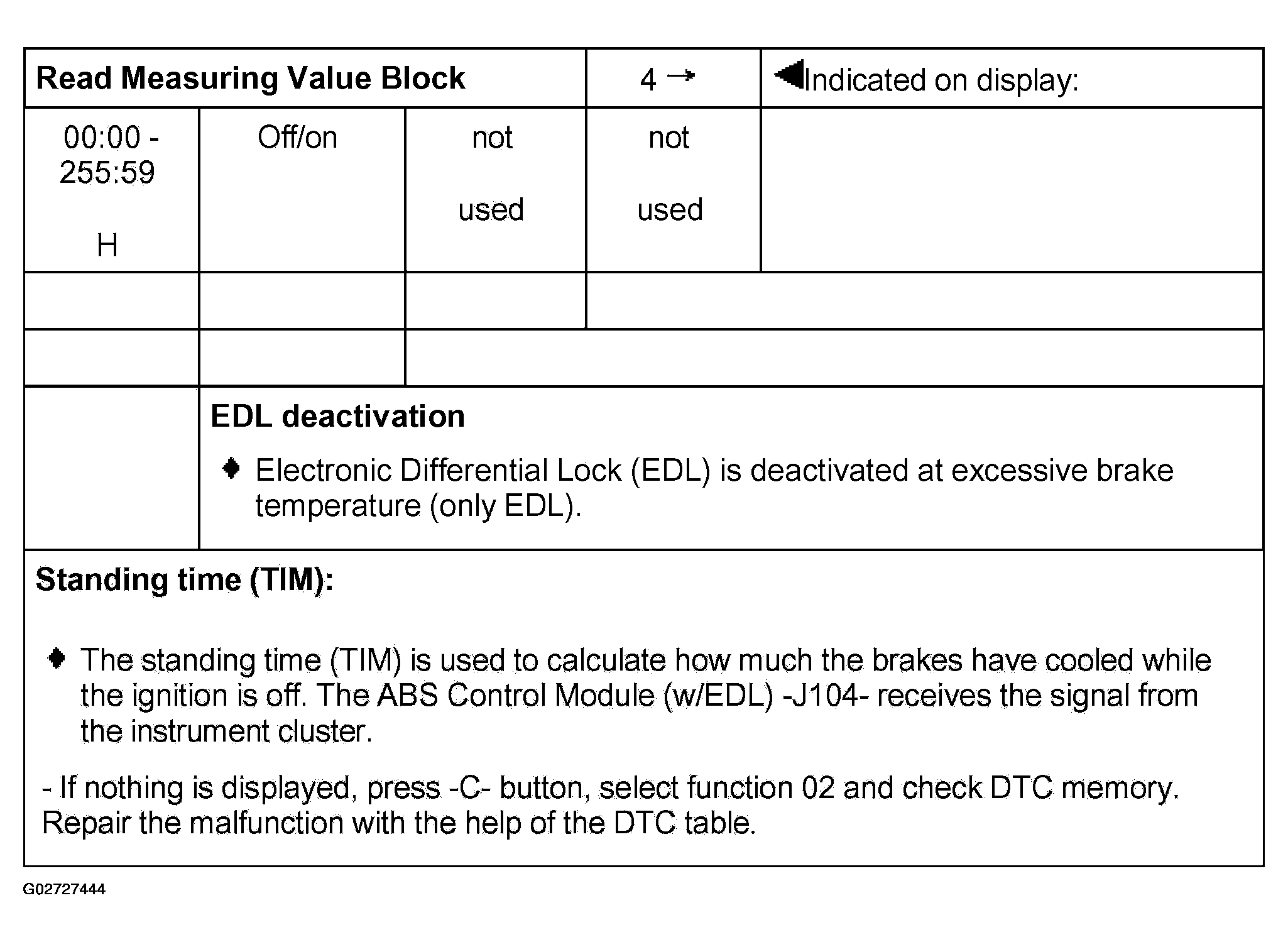

Fig 1: Test Table: Display Group 4 (004) - Bosch 5.3

Courtesy of AUDI OF AMERICA, INC.

For more information about the EDL, see EDL .
For the DTC chart, see DTC TABLE .

NOTE: OBD is terminated by ABS Control Module (w/EDL) -J104- if road speed exceeds 19 km/h (12 MPH).

NOTE: The display group numbers can be selected in sequence by pressing buttons <-1 and 3-> on the VAG1551 scan tool, arrow buttons "UP" and "DOWN" on the VAG1552 scan tool, or the arrow buttons "UP" and "DOWN" on the screen of the VAS5051 tester.

Press -C- button to input display group number manually.

Indicated on display

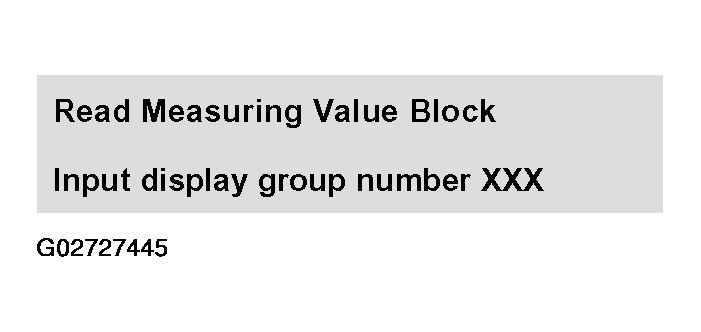

Fig 2: VAG Scan Tool Display - Measuring Value Block, Bosch 5.3 (Input Group Number)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -5-.
Press the -Q- button to confirm input.

Note for display group 5 (005):

To read the display fields sender for rotation rate and transverse acceleration while the vehicle is moving, use the "End Output" function (see END OUTPUT ) to end the communication between the scan tool and the control module. Start the engine and re-initiate communication between the scan tool and the control module.

Indicated on display

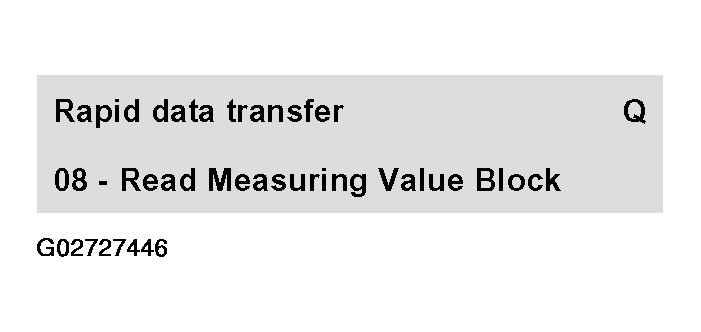

Fig 3: VAG Scan Tool Display - Measuring Value Block, Bosch 5.3 (08-Read Measuring Value Block)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -8- to select "Read Measuring Value Block" function 08.
Press the -Q- button to confirm input.

Indicated on display

Fig 4: VAG Scan Tool Display - Measuring Value Block, Bosch 5.3 (Input Group Number)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -5-.
Press the -Q- button to confirm input.
