Test table: display group 125

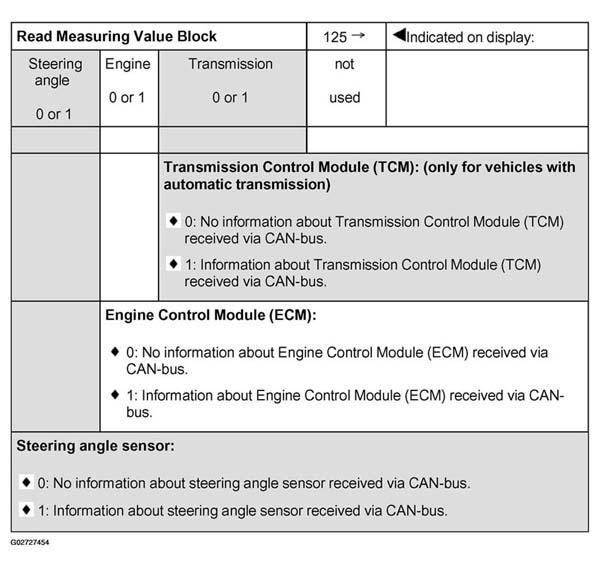

Fig 1: Test Table: Display Group 125 - Bosch 5.3
G02727454Courtesy of AUDI OF AMERICA, INC.
NOTE: OBD is terminated by ABS Control Module (w/EDL) -J104- if road speed exceeds 19 km/h (12 MPH).
