Code control module, initiating

NOTE: The correct coding value depends on the installed multi-function steering wheel control module part number index.

Indicated on display:

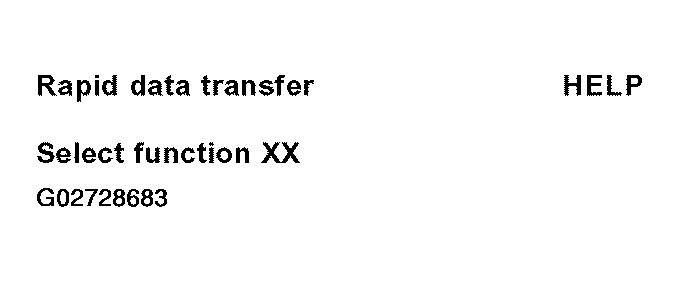

Fig 1: Identifying Scan Tool Display - Code Control Module (Multi-Function Steering Wheel) (1 Of 6)

G02728683

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -1- to select "Check control module" function 01.

Indicated on display

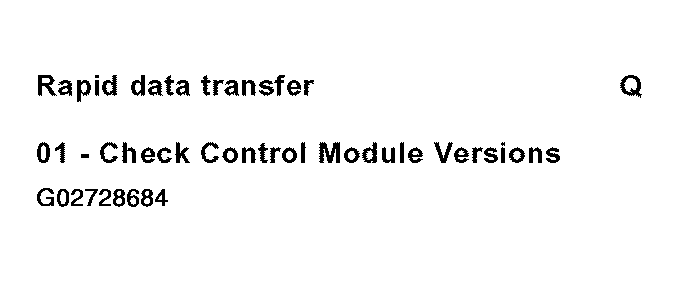

Fig 2: Identifying Scan Tool Display - Code Control Module (Multi-Function Steering Wheel) (2 Of 6)

G02728684

Courtesy of AUDI OF AMERICA, INC.

Press -Q- button to confirm input.

Indicated on display after approx. 5 seconds (example only):

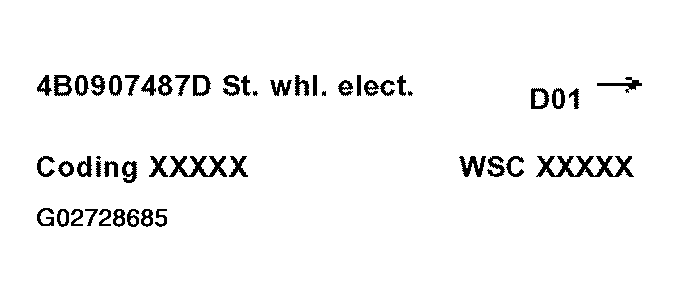

Fig 3: Identifying Scan Tool Display - Code Control Module (Multi-Function Steering Wheel) (3 Of 6)

G02728685

Courtesy of AUDI OF AMERICA, INC.

Make note of control module part number Index.
Press --> button.

Indicated on display

Fig 4: Identifying Scan Tool Display - Code Control Module (Multi-Function Steering Wheel) (4 Of 6)

G02728686

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -7- to select "Code Control Module" function 07.

Indicated on display:

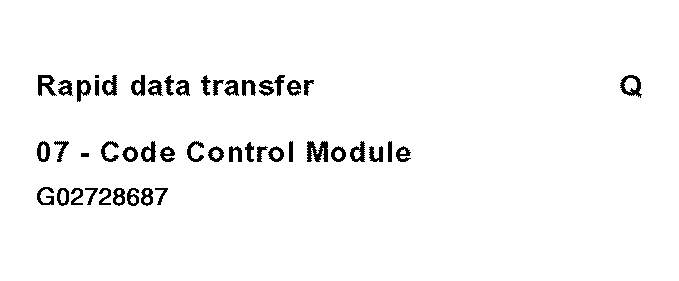

Fig 5: Identifying Scan Tool Display - Code Control Module (Multi-Function Steering Wheel) (5 Of 6)

G02728687

Courtesy of AUDI OF AMERICA, INC.

Confirm input using the -Q- button.

Indicated on display:

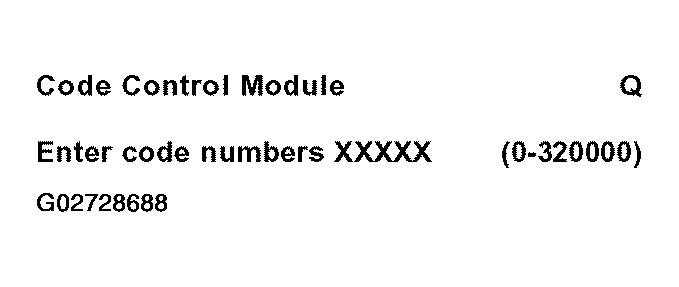

Fig 6: Identifying Scan Tool Display - Code Control Module (Multi-Function Steering Wheel) (6 Of 6)

G02728688

Courtesy of AUDI OF AMERICA, INC.

Enter code number according to part number Index tables. See beginning from CODING TABLE - CONTROL MODULE INDEX "C" .
