Perform basic setting

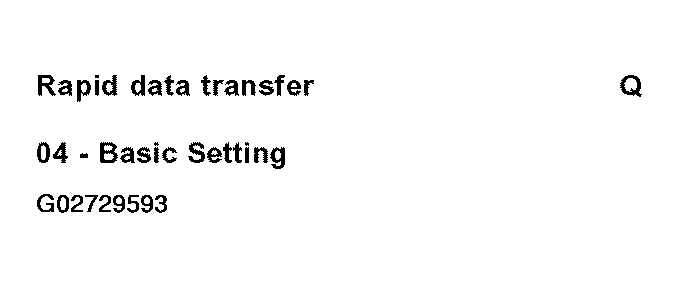

- Press buttons -0- and -4- to select "Basic Setting" function 04.
Indicated on display:

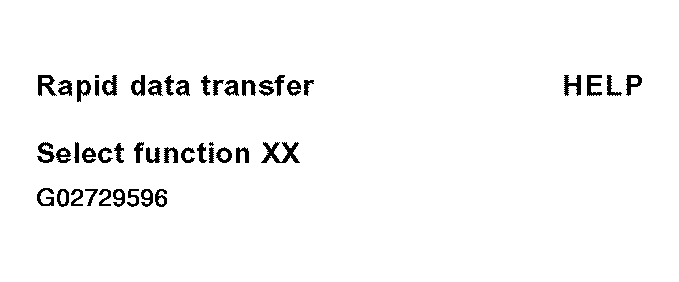

Fig 1: V.A.G 1551 Scan Tool Display - Performing Basic Setting, Automatic Vertical Headlight Aim Control (1 Of 9)
- Press -Q- button to confirm input.
Indicated on display:
Fig 2: V.A.G 1551 Scan Tool Display - Performing Basic Setting, Automatic Vertical Headlight Aim Control (2 Of 9)
- Input display group number 001.
- Press -Q- button to confirm input.
Indicated on display:

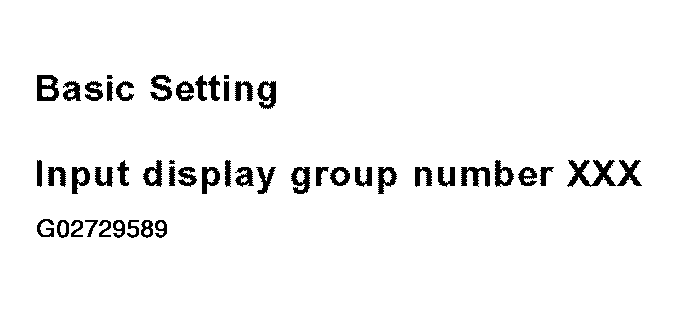

Fig 3: V.A.G 1551 Scan Tool Display - Performing Basic Setting, Automatic Vertical Headlight Aim Control (3 Of 9)
- Headlights are moved to set position.
Indicated on display:

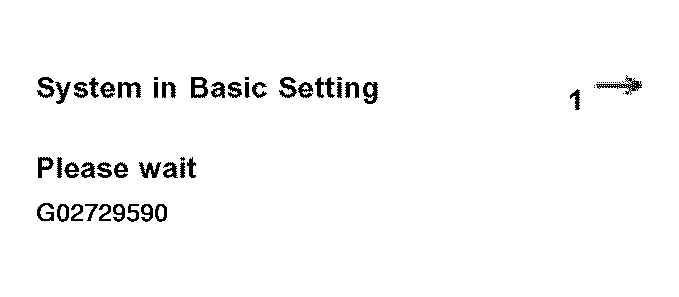

Fig 4: V.A.G 1551 Scan Tool Display - Performing Basic Setting, Automatic Vertical Headlight Aim Control (4 Of 9)

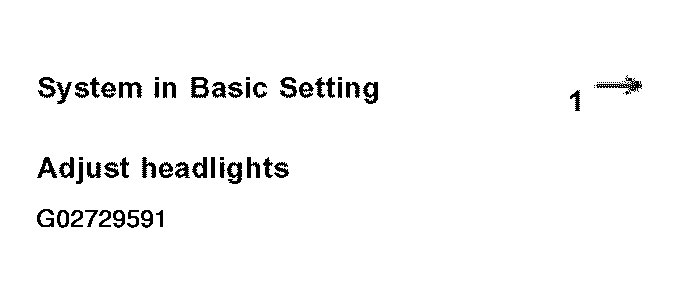

- Headlights are now in the set position. Adjust headlights using headlight adjustment tool (e.g. VAS5046). Basic setting 1 switches the adjustment mode off and enters "headlights not set" into DTC memory.
- Press --> button.
Indicated on display
Fig 5: V.A.G 1551 Scan Tool Display - Performing Basic Setting, Automatic Vertical Headlight Aim Control (5 Of 9)
- Press buttons -0- and -4- to select "Basic Setting" function 04.
Indicated on display:
Fig 6: V.A.G 1551 Scan Tool Display - Performing Basic Setting, Automatic Vertical Headlight Aim Control (6 Of 9)
- Press -Q- button to confirm input.
Indicated on display:
Fig 7: V.A.G 1551 Scan Tool Display - Performing Basic Setting, Automatic Vertical Headlight Aim Control (7 Of 9)
- Input display group number 2.
- Press -Q- button to confirm input.
Indicated on display:
Fig 8: V.A.G 1551 Scan Tool Display - Performing Basic Setting, Automatic Vertical Headlight Aim Control (8 Of 9)

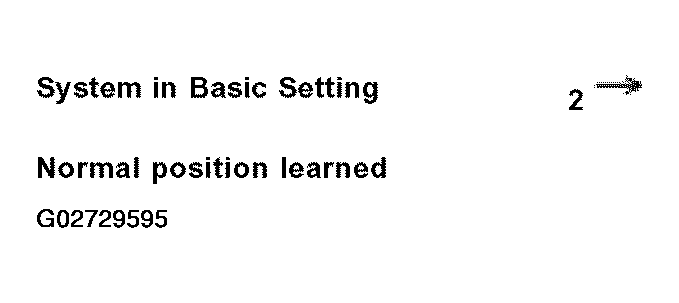

- The control module has now learned this position as the adjustment position. The entry in DTC memory ("Headlights not set") is erased and adjustment mode is re-initiated.
- Press --> button.
Indicated on display
