Code Control Module, initiating

Indicated on display:

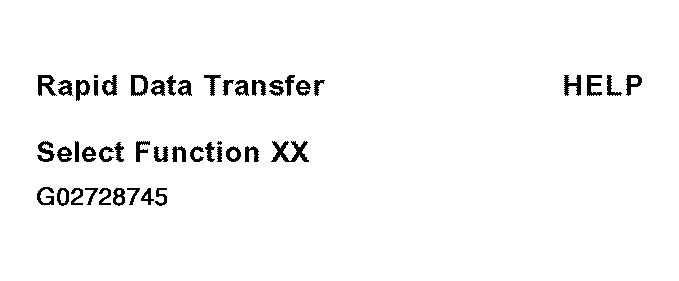

Fig 1: Identifying Scan Tool Display - Code Control Module (Telematics) (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Press buttons -0- and -7- to select "Code control module" function 07.

Indicated on display:

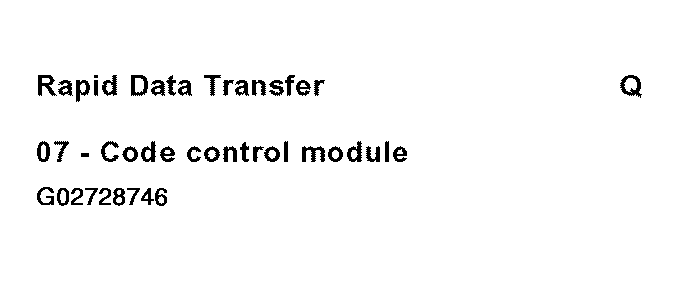

Fig 2: Identifying Scan Tool Display - Code Control Module (Telematics) (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Press -Q- button to confirm input.

Indicated on display:

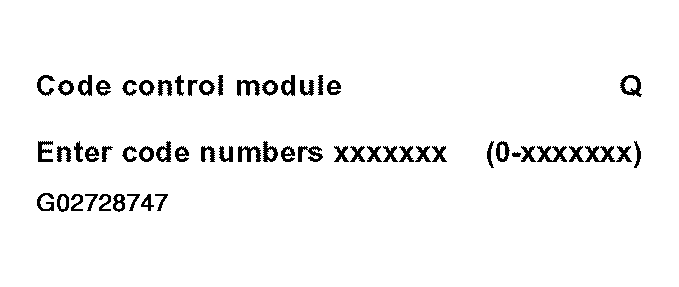

Fig 3: Identifying Scan Tool Display - Code Control Module (Telematics) (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Enter seven digit code number according to table. See CODING TABLE:  .
• Press -Q- button to confirm input.
