Display Group 003

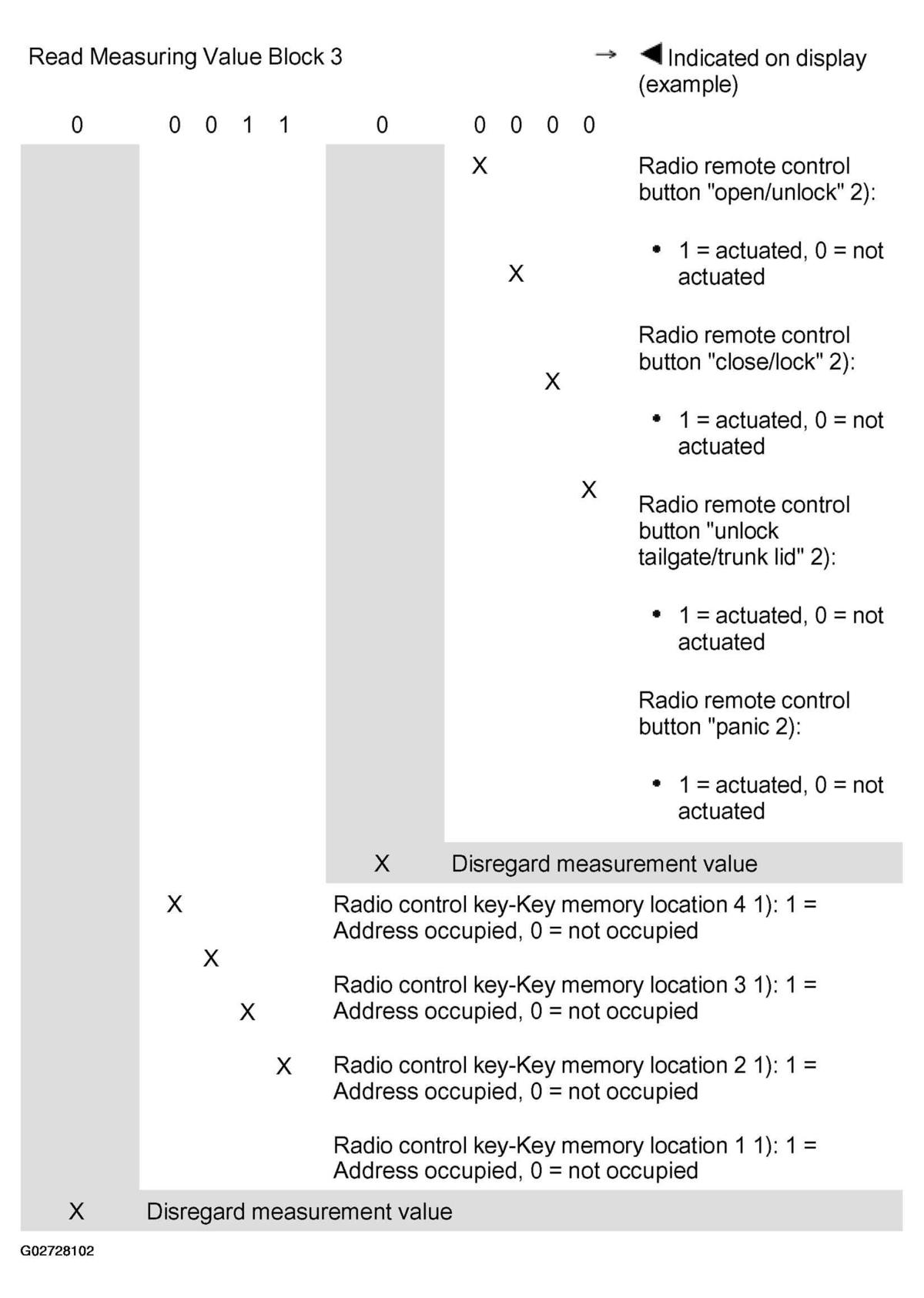

Fig 1: Display Group 003, Central Locking System
G02728102Courtesy of AUDI OF AMERICA, INC.
  1. The corresponding key memory address for the radio remote control flashes if the radio remote control is actuated.
  2. This measuring value block also does not indicate adapted radio-remote control keys, e.g. for function test of the radio-remote control key.
