Implementing function "07 - Code Control Module"

Indicated on display:

Fig 1: V.A.G 1551 Scan Tool (ST) Display - Front Passenger Seat Adjustment With Memory Control Module, Code Control Module, Function 07 (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Press buttons -0- and -7-.

Indicated on display:

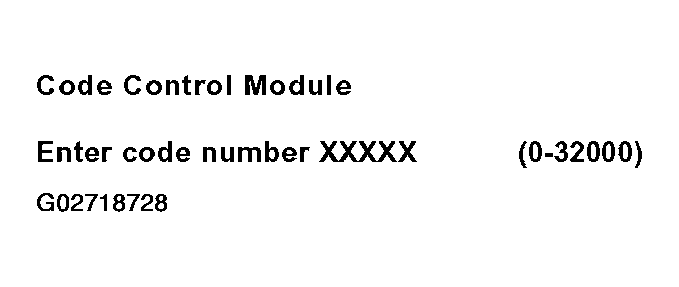

Fig 2: V.A.G 1551 Scan Tool (ST) Display - Front Passenger Seat Adjustment With Memory Control Module, Code Control Module, Function 07 (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Confirm entry with -Q- button.

Indicated on display:

Fig 3: V.A.G 1551 Scan Tool (ST) Display - Front Passenger Seat Adjustment With Memory Control Module, Code Control Module, Function 07 (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Enter memory control module code via keypad:

Code: 00003

• 00003: Remote control key memory off
