Read Measuring Value Block Display Group 013

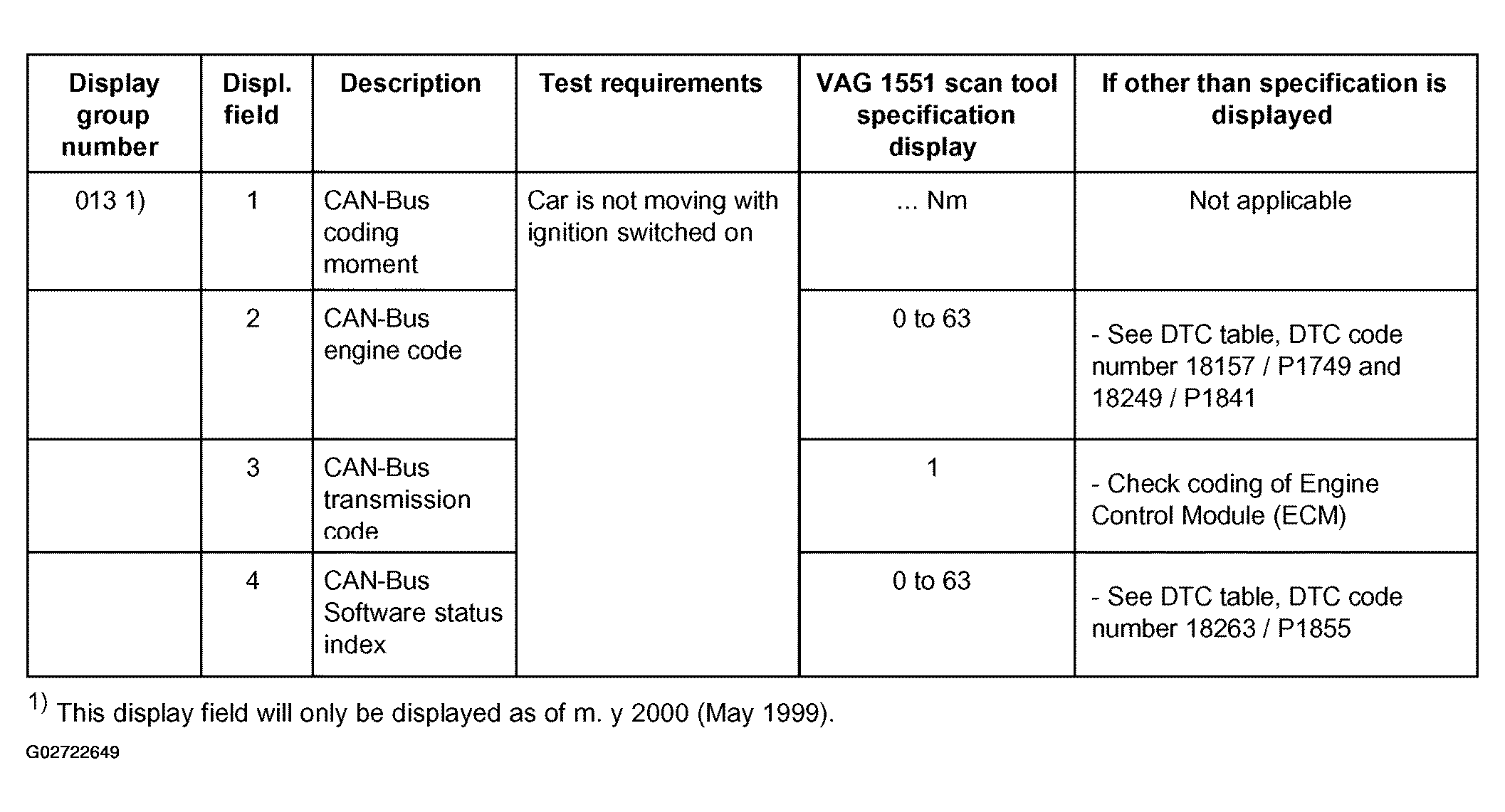

Fig 1: Read Measuring Value Block Display Group 013, Display Fields 1 Through 4

Courtesy of AUDI OF AMERICA, INC.

Note to display group number 013:

• Display field 2 and 4: When replacing an Engine Control Module (ECM), the index must show the same code as for the old ECM. If not, the wrong ECM was installed or it was incorrectly coded.
