On Board Diagnostic (OBD) - A/T 01L
>>
Read Measuring Value Block (scan tool function 08)
>>
Read Measuring Value Block display group table
>>
Read Measuring Value Block Display Group 012
Read Measuring Value Block Display Group 012

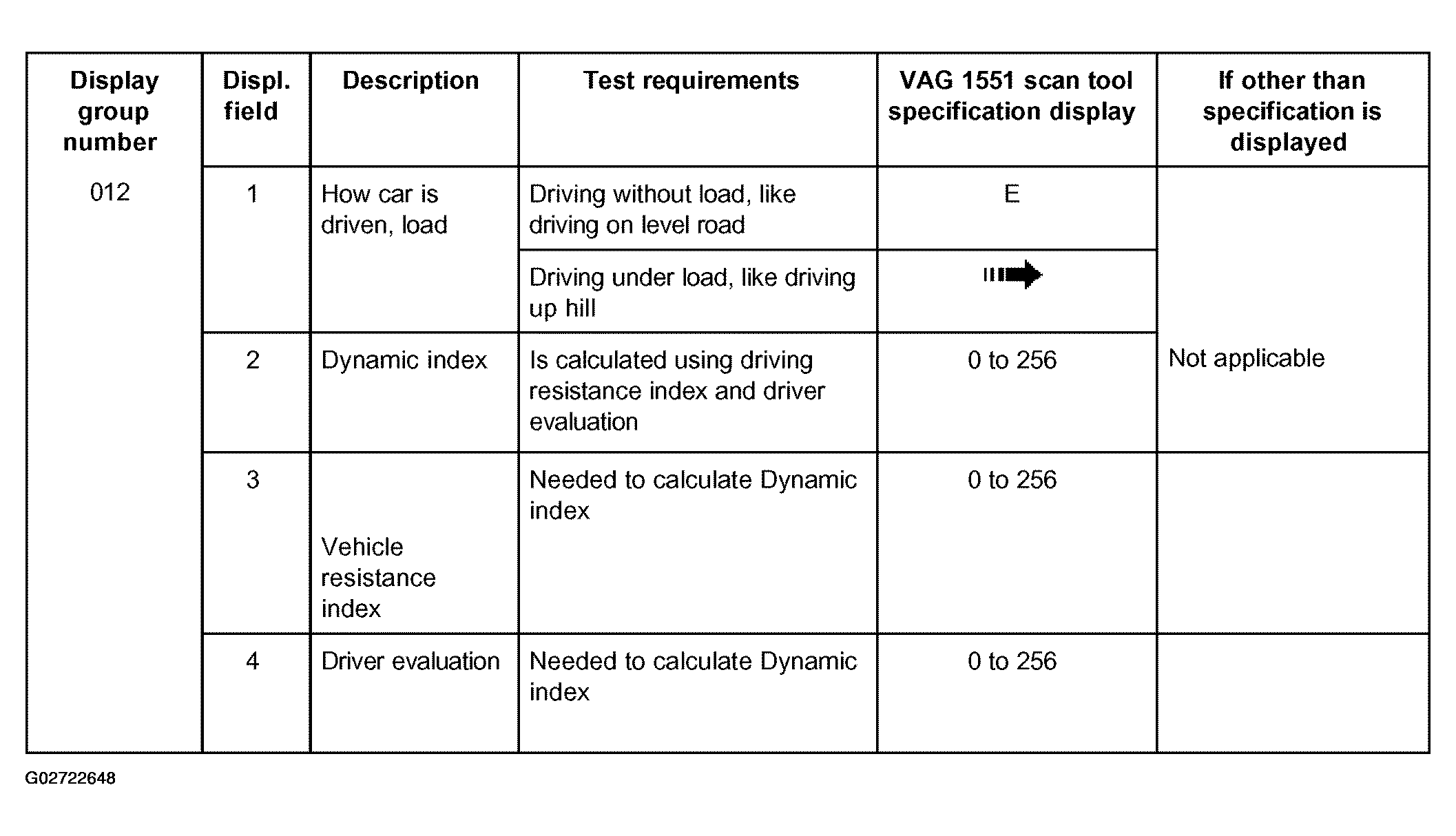

Fig 1: Read Measuring Value Block Display Group 012, Display Fields 1 Through 4
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
