Read Measuring Value Block Display Group 011

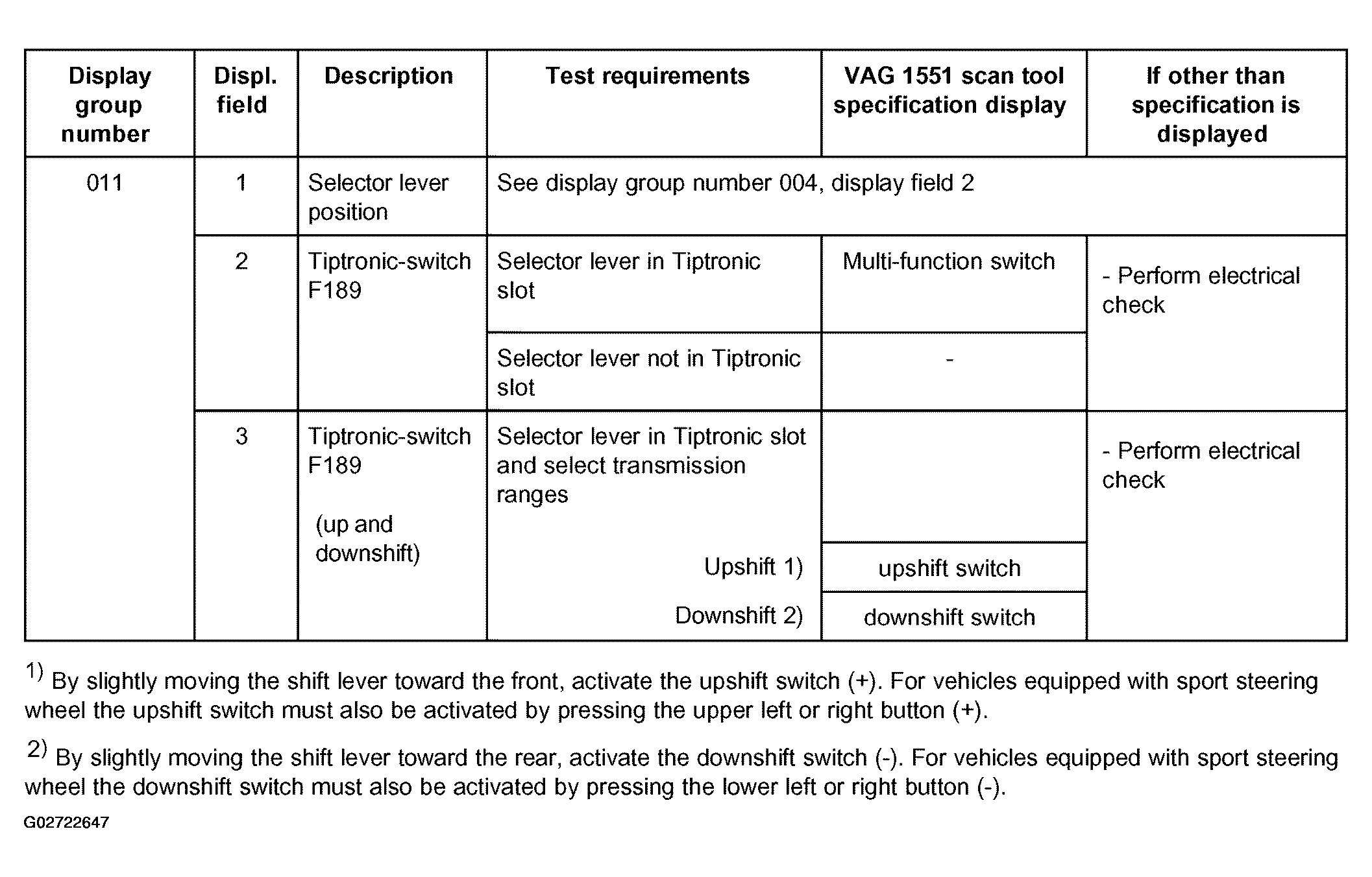

Fig 1: Read Measuring Value Block Display Group 011, Display Fields 1, 2 & 3

G02722647

Courtesy of AUDI OF AMERICA, INC.
