Read Measuring Value Block Display Group 009

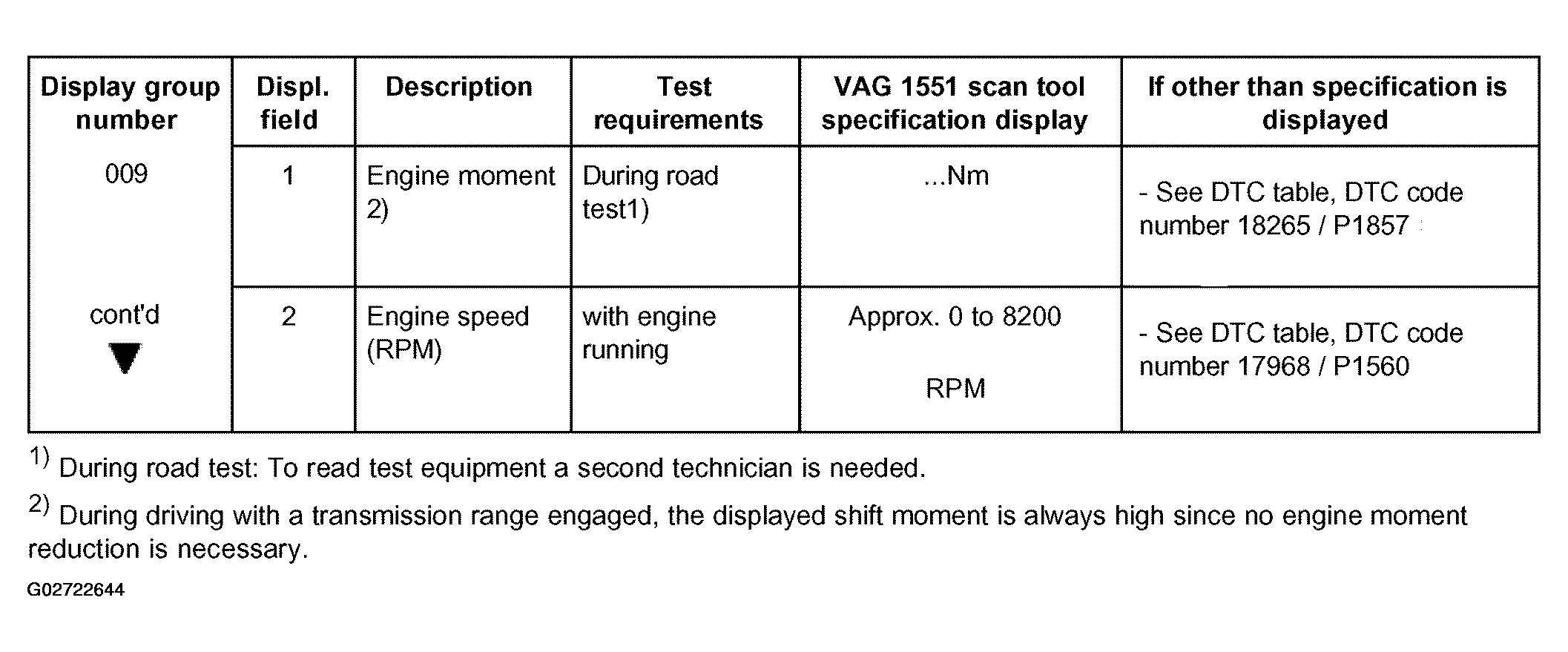

Fig 1: Read Measuring Value Block Display Group 009, Display Fields 1 & 2

Courtesy of AUDI OF AMERICA, INC.

Note to display field 1:

The signal for the engine moment is transmitted by the Engine Control Module (ECM) via the CAN-Bus wiring.

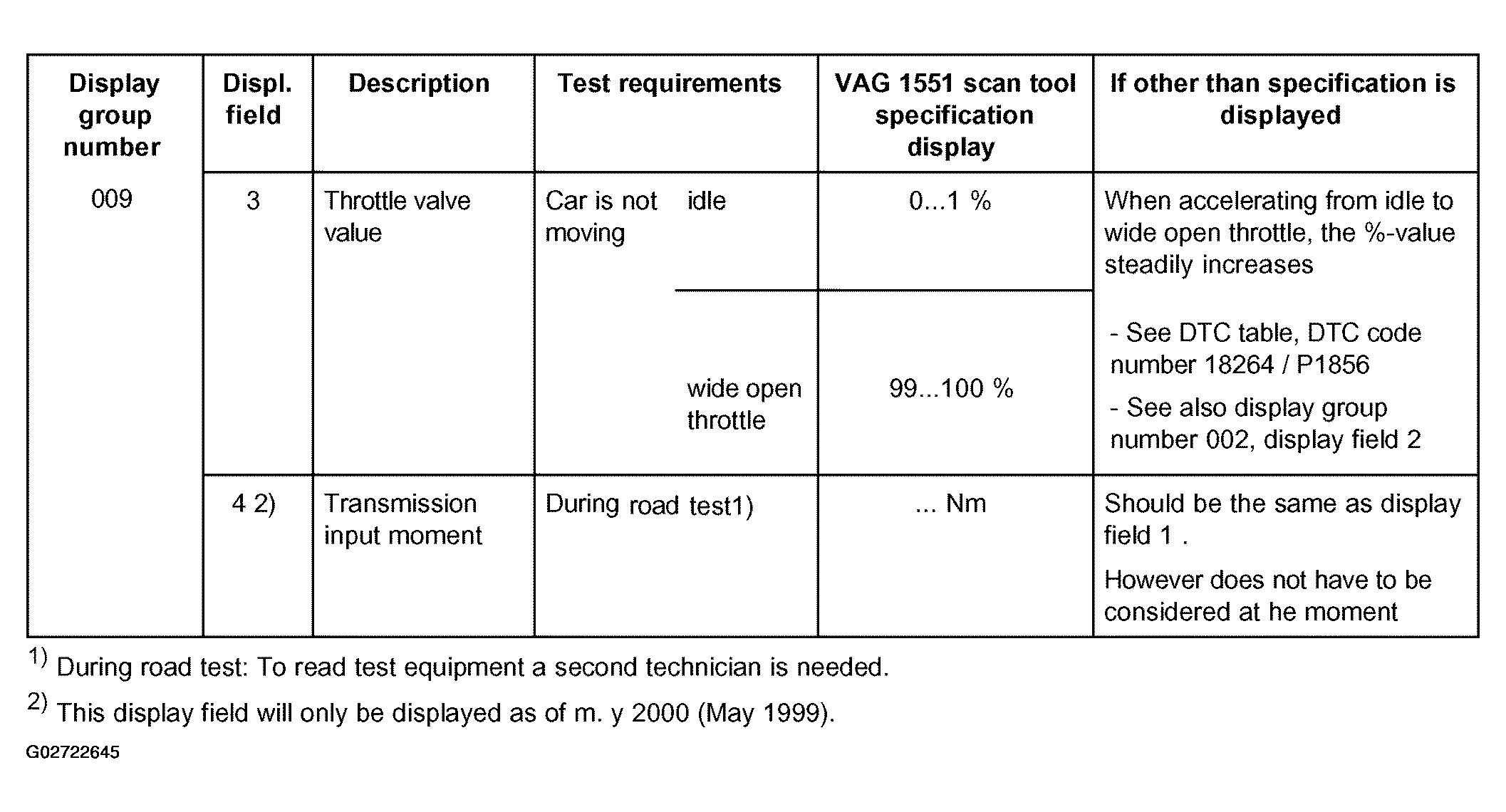

Fig 2: Read Measuring Value Block Display Group 009, Display Fields 3 & 4

Courtesy of AUDI OF AMERICA, INC.
