Read Measuring Value Block Display Group 008

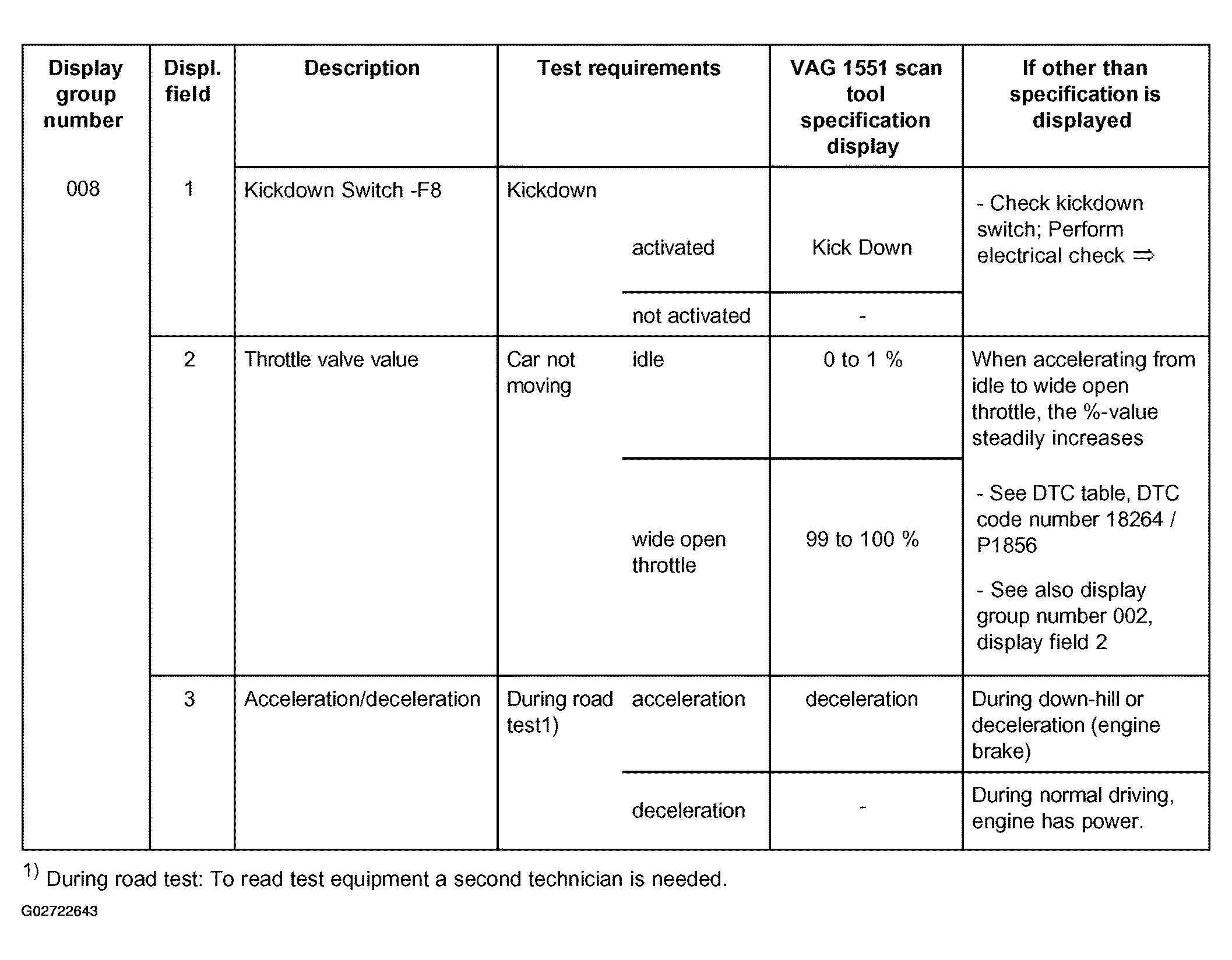

Fig 1: Read Measuring Value Block Display Group 008, Display Fields 1, 2 & 3

Courtesy of AUDI OF AMERICA, INC.

• For electrical check, see ELECTRICAL TESTING .

Note to Display field 1 and 2:

When kickdown is activated, display field 2 must also indicate 100%.
