Read Measuring Value Block Display Group 006

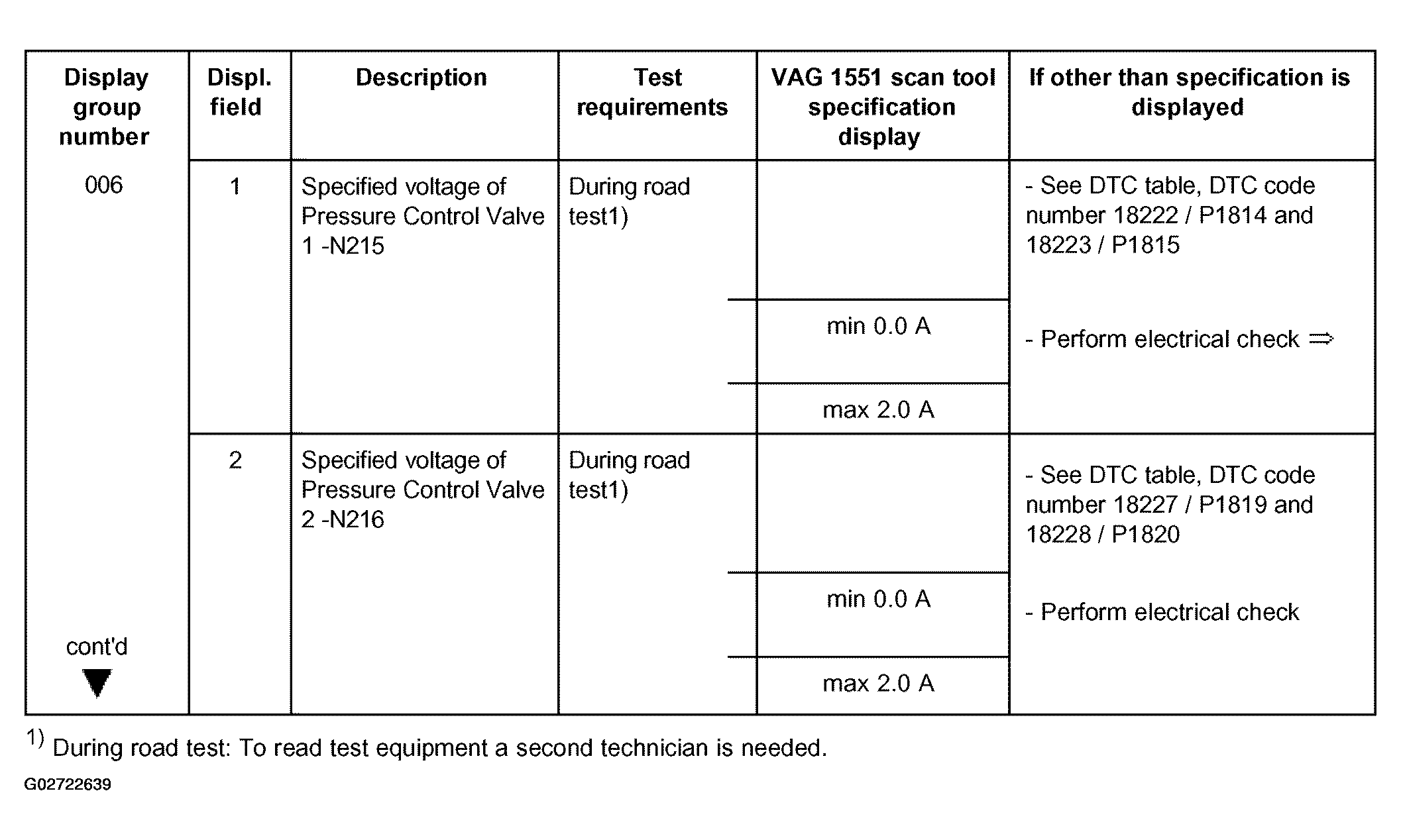

Fig 1: Read Measuring Value Block Display Group 006, Display Fields 1 & 2

Courtesy of AUDI OF AMERICA, INC.

• For electrical check, see ELECTRICAL TESTING .

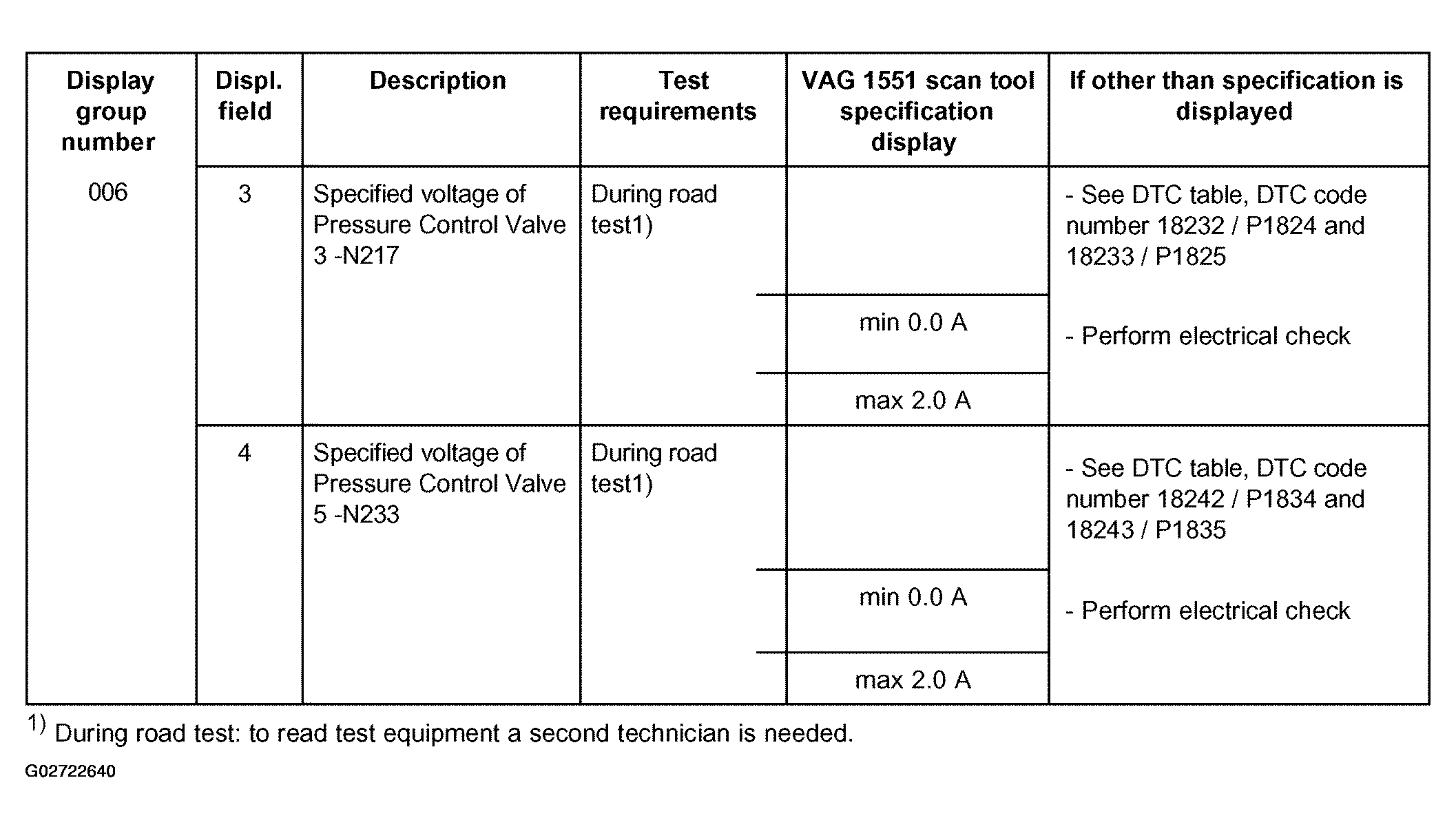

Fig 2: Read Measuring Value Block Display Group 006, Display Fields 3 & 4

Courtesy of AUDI OF AMERICA, INC.

• For electrical check, see ELECTRICAL TESTING .

Note to Specified voltage of solenoid valv

• Faulty solenoid valves, pressure control valves, or clutches can prevent a transmission range to be engaged.
