Read Measuring Value Block Display Group 005

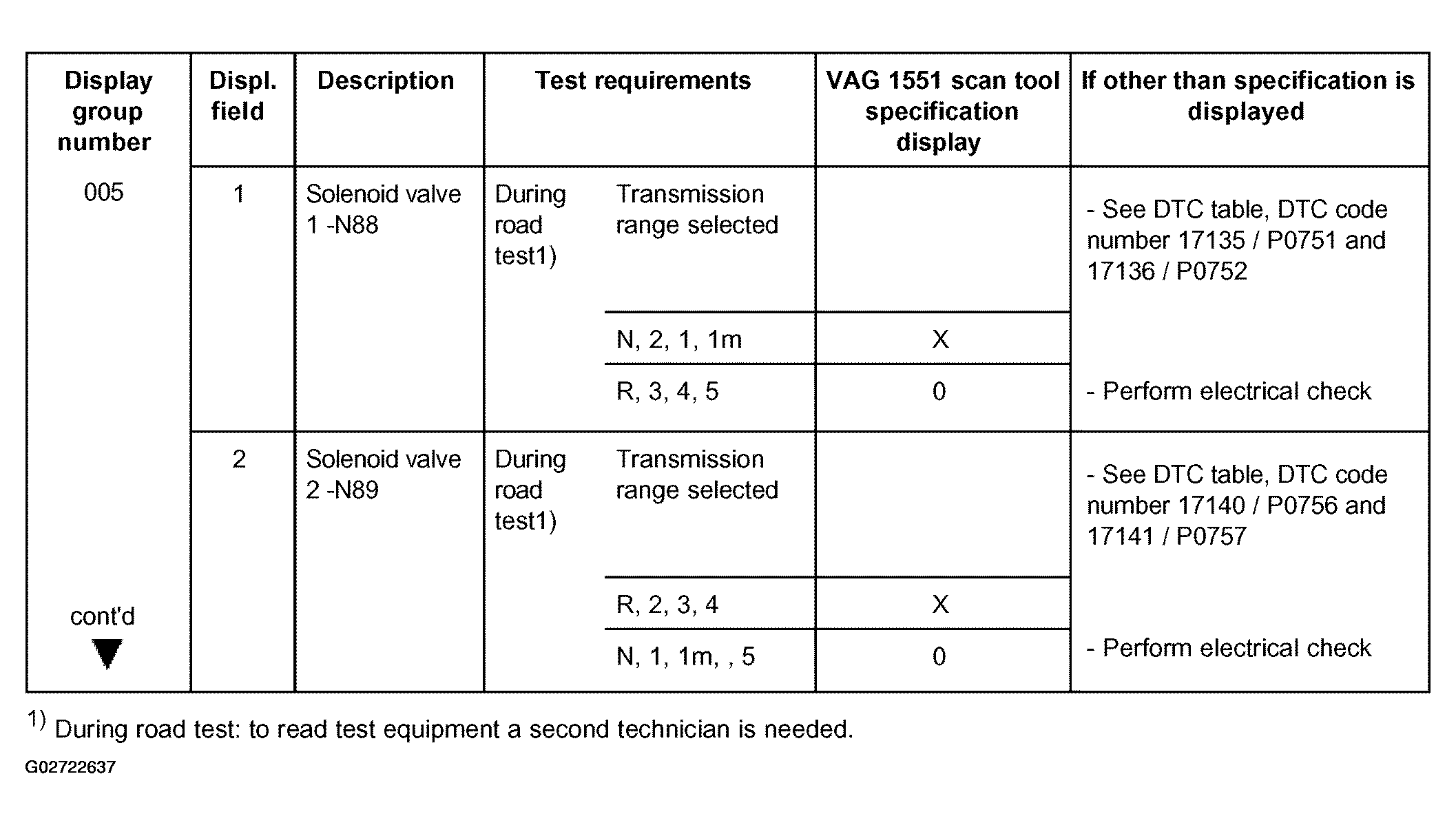

Fig 1: Read Measuring Value Block Display Group 005, Display Fields 1 & 2

Courtesy of AUDI OF AMERICA, INC.

• For electrical check, see ELECTRICAL TESTING .

Note to Display group number 005, display field 1 to 3;

• Not shifted (not active) solenoid valves are shifted with "0", (active) solenoid valves are displayed with "X".

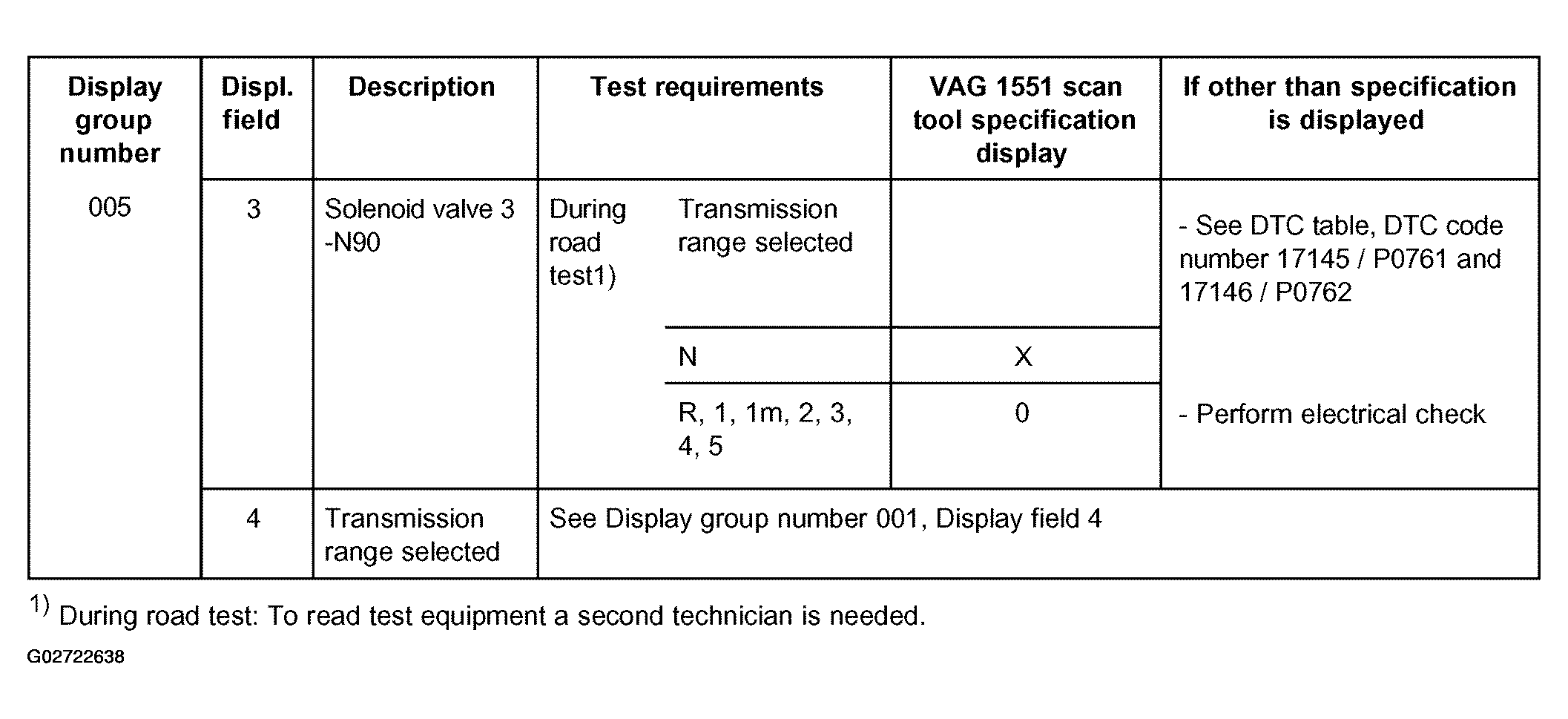

Fig 2: Read Measuring Value Block Display Group 005, Display Fields 3 & 4

Courtesy of AUDI OF AMERICA, INC.

• For electrical check, see ELECTRICAL TESTING .

Note to display group number 005, display field 1 through 3;

• Not shifted (not active) solenoid valves are shifted with "0", (active) solenoid valves are displayed with "X".
