Read Measuring Value Block Display Group 004

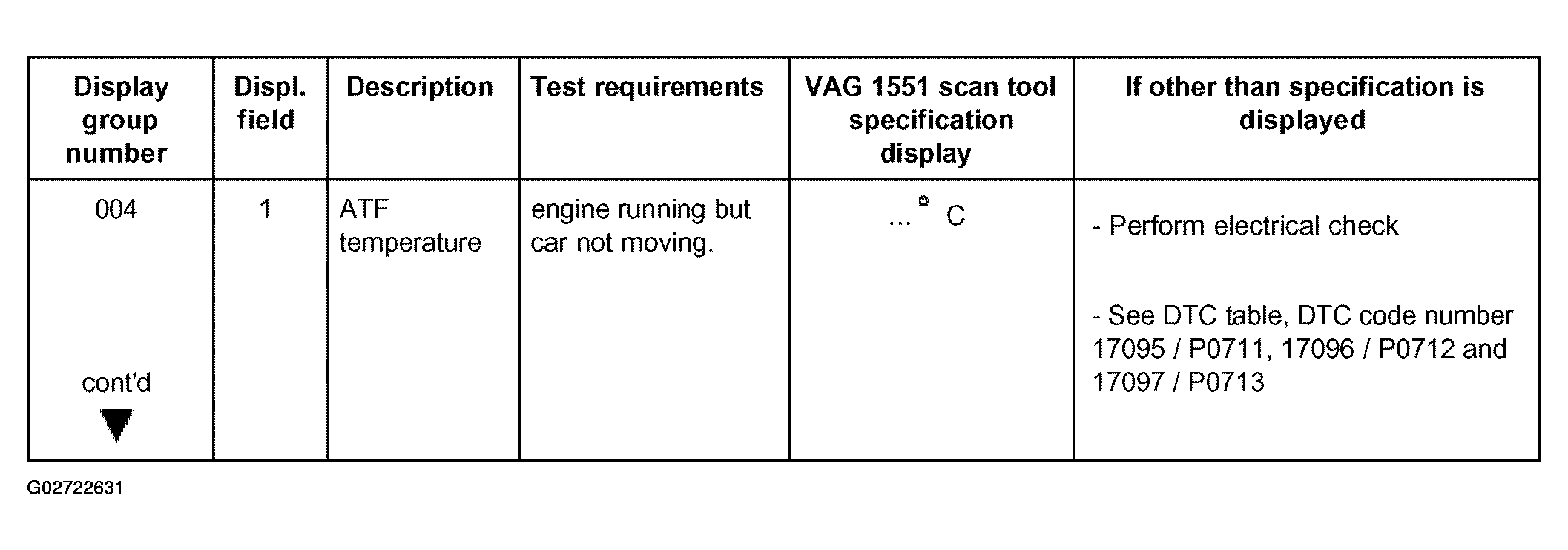

Fig 1: Read Measuring Value Block Display Group 004, Display Field 1

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see ELECTRICAL TESTING .

Note to ATF temp

A recognized temperature of minus 50° C (-58° F) is likely to be a short circuit to Ground (GND).
A recognized temperature of 180° C (356° F) is likely to be a short circuit to plus (B+) or open circuit.

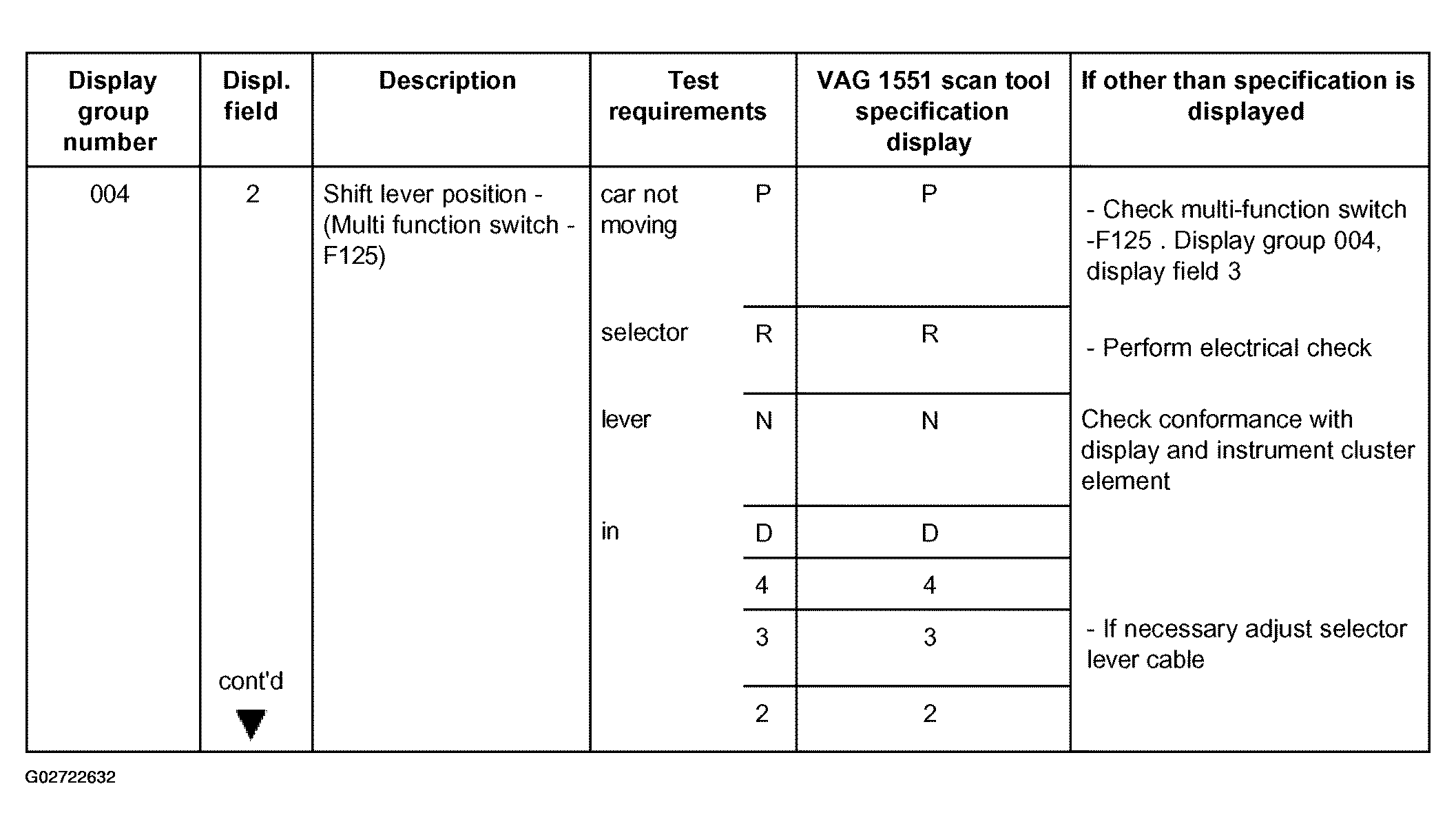

Fig 2: Read Measuring Value Block Display Group 004, Display Field 2

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see ELECTRICAL TESTING .
To adjust selector lever cable, see SELECTOR LEVER CABLE .

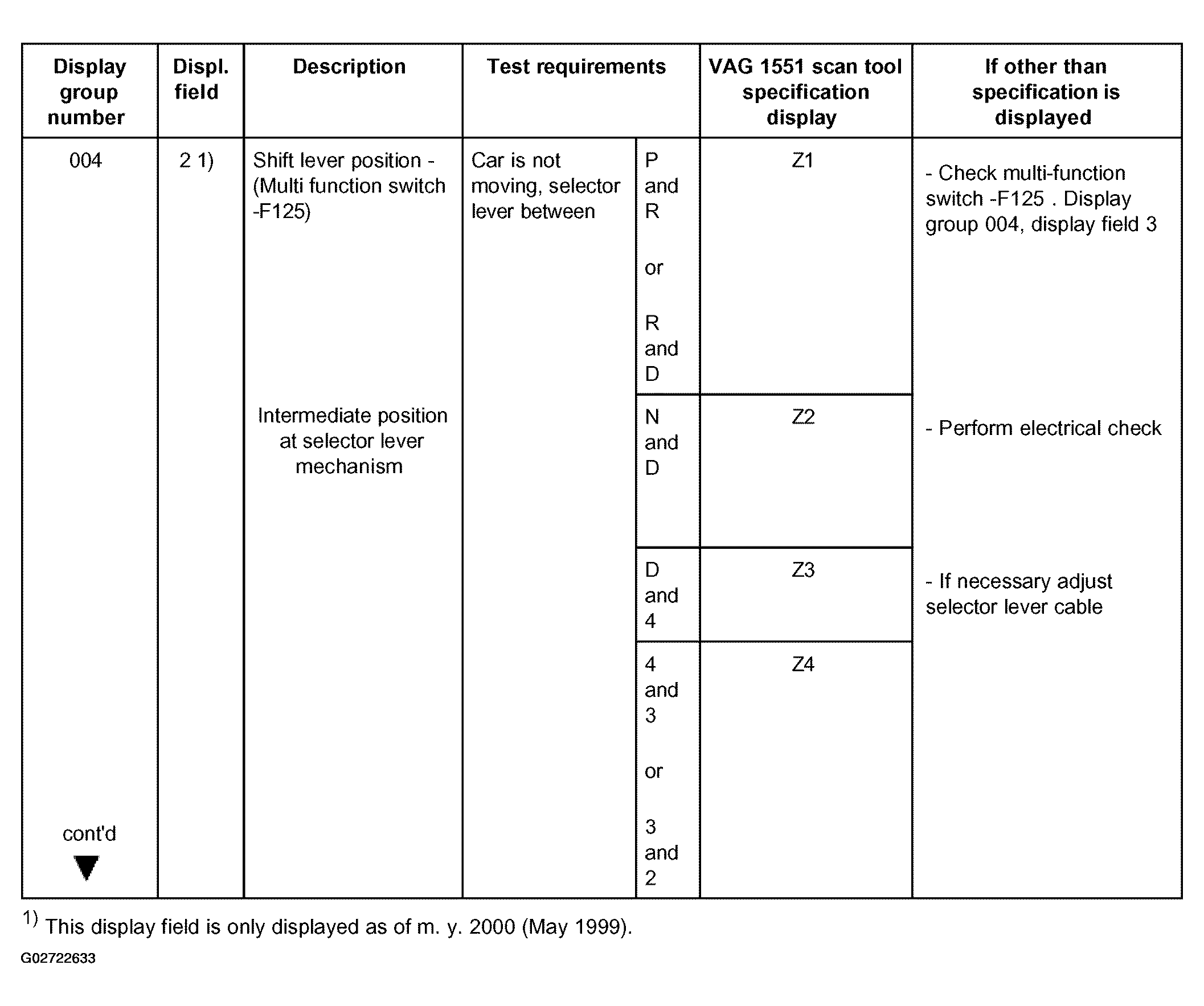

Fig 3: Read Measuring Value Block Display Group 004, Display Field 2 (Cont.)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see ELECTRICAL TESTING .
To adjust selector lever cable, see SELECTOR LEVER CABLE .

Note to intermediate transmission rang

If the selector lever is shifted into the shown intermediate positions, the VAG 1551 scan tool will display "Z1", "Z2", "Z3" or "Z4". In the instrument cluster display no selected transmission range may be displayed, meaning that only PRND432 is shown without a particular range illuminated.

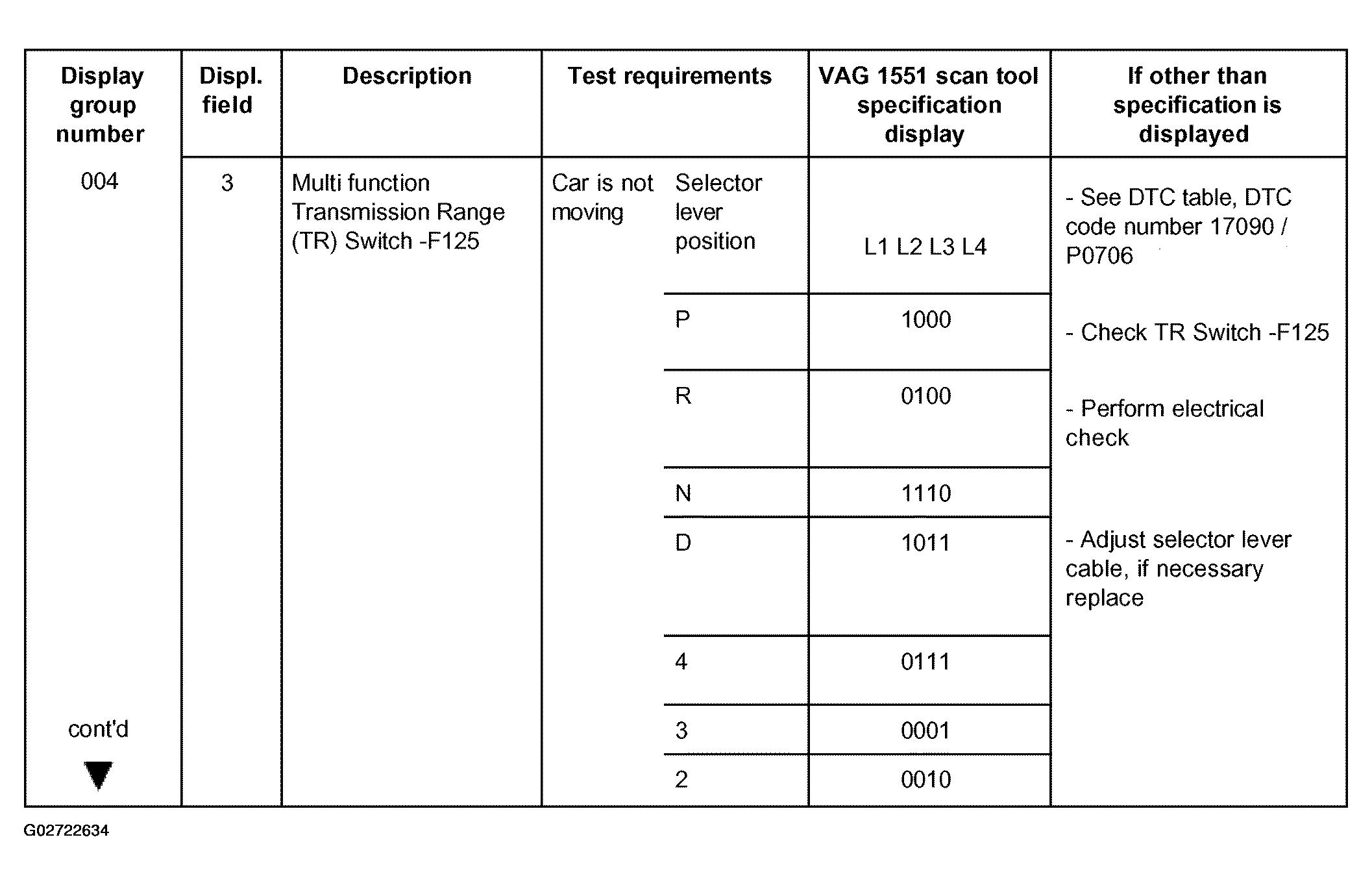

Fig 4: Read Measuring Value Block Display Group 004, Display Field 3

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see ELECTRICAL TESTING .
To adjust selector lever cable, see SELECTOR LEVER CABLE .

Note to display field 3, display group number 004:

The input signals of the TR Switch -F125 can be checked at the TCM.

Fig 5: Read Measuring Value Block Display Group 004, Display Field 3 (Wiring Connection To TCM )

Courtesy of AUDI OF AMERICA, INC.

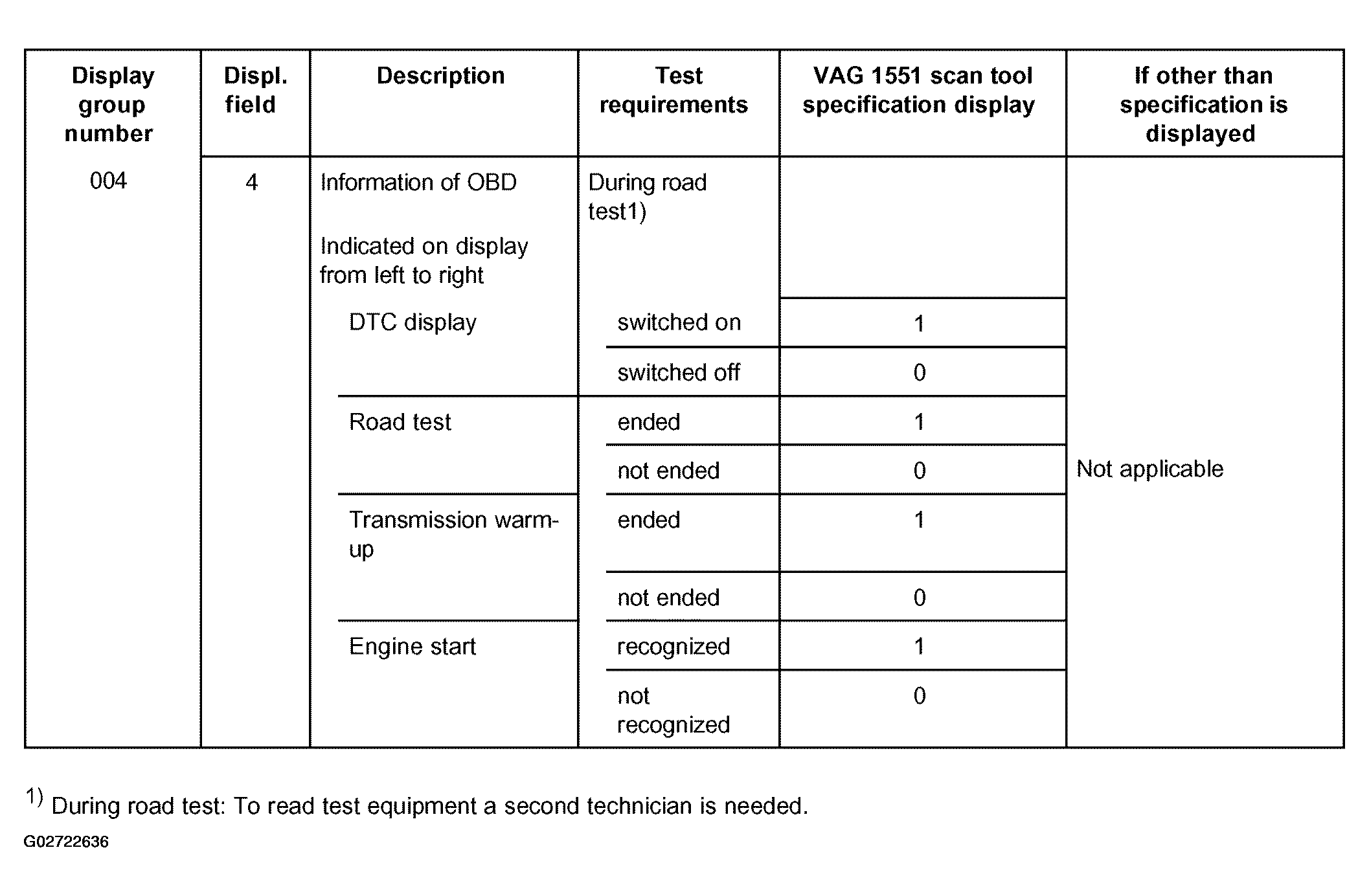

Fig 6: Read Measuring Value Block Display Group 004, Display Field 4

Courtesy of AUDI OF AMERICA, INC.
