Read Measuring Value Block Display Group 003

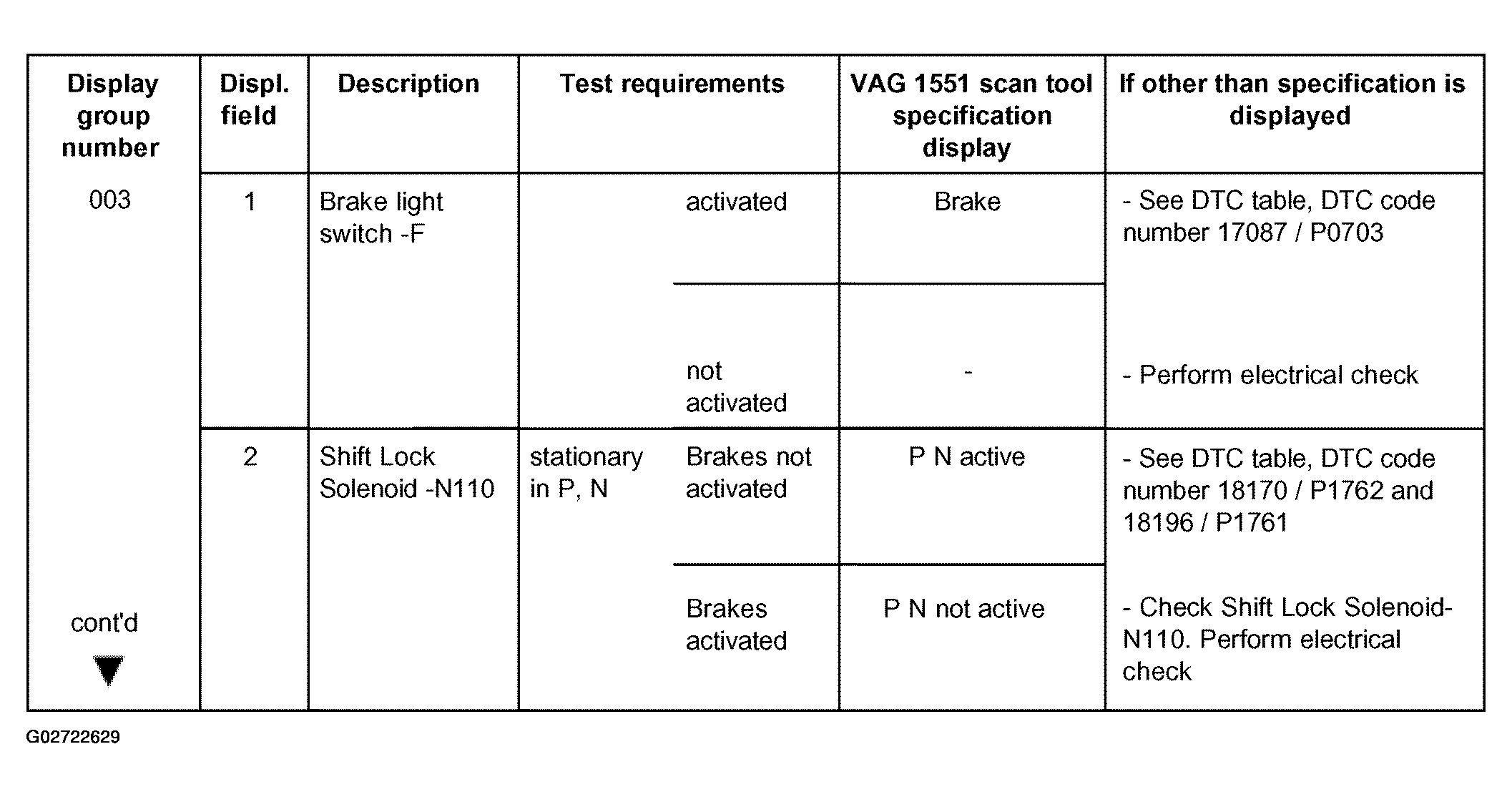

Fig 1: Read Measuring Value Block Display Group 003, Display Fields 1 & 2

Courtesy of AUDI OF AMERICA, INC.

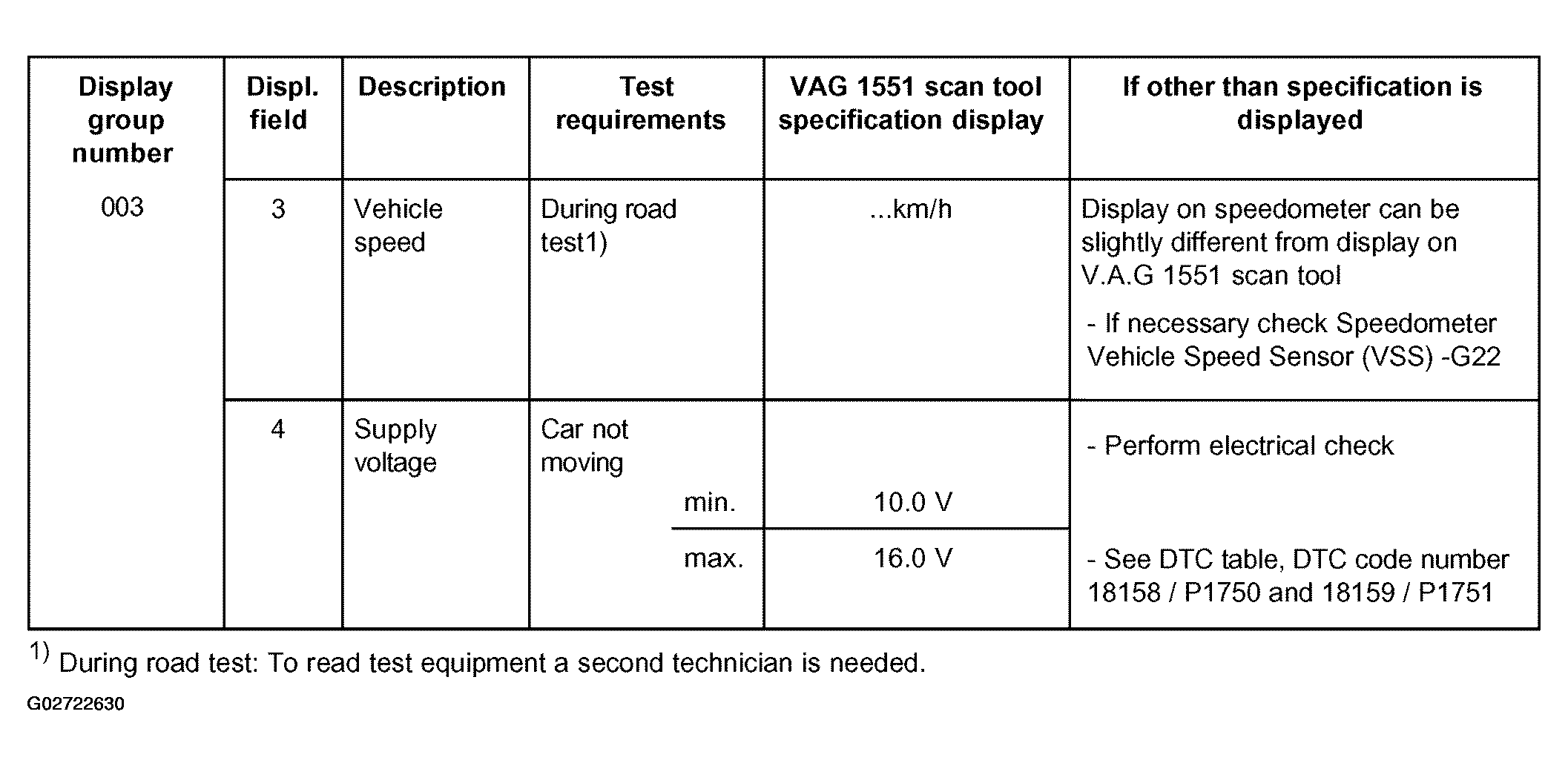

Fig 2: Read Measuring Value Block Display Group 003, Display Fields 3 & 4

Courtesy of AUDI OF AMERICA, INC.

• For electrical check, see ELECTRICAL TESTING .
