Read Measuring Value Block Display Group 002

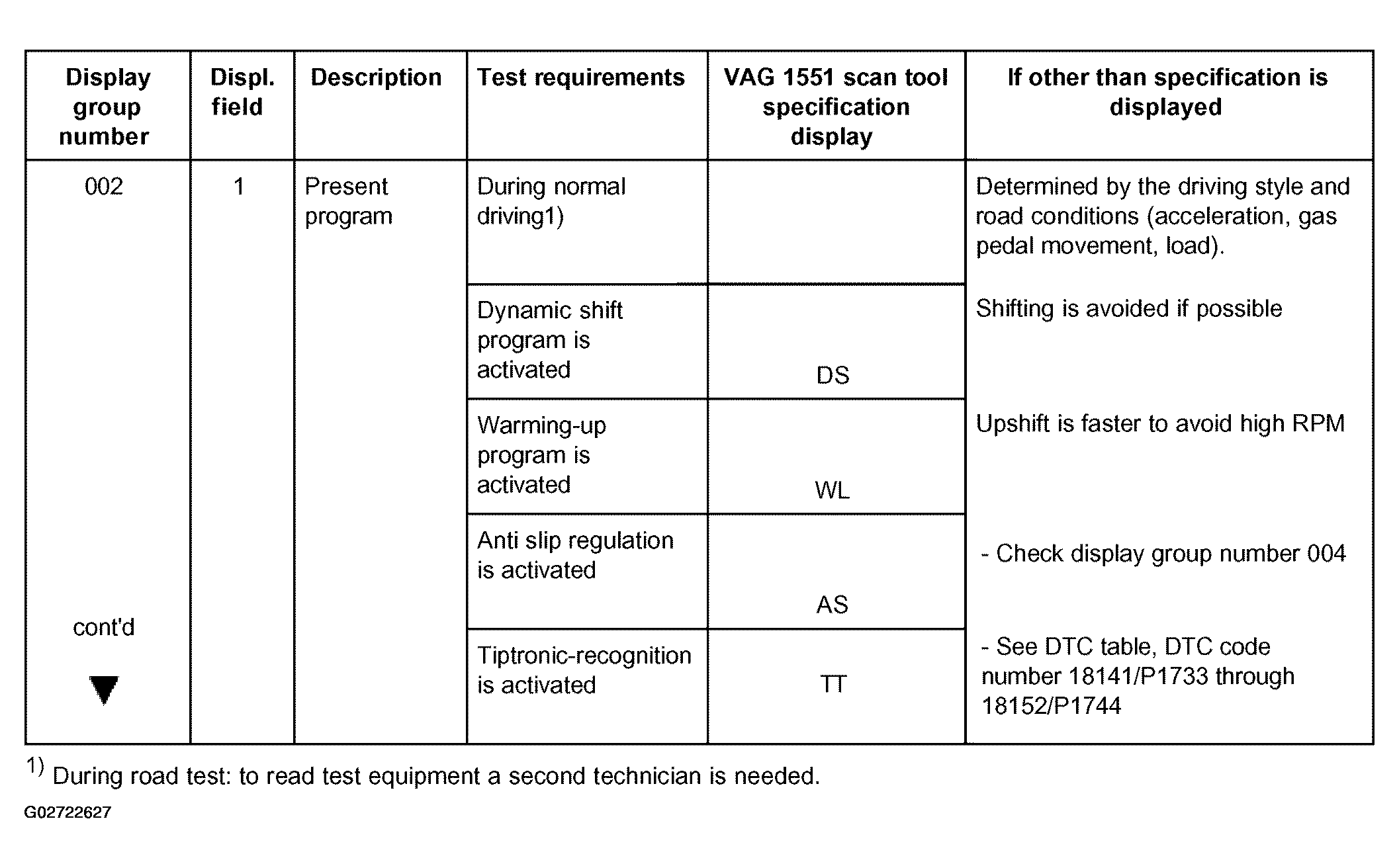

Fig 1: Read Measuring Value Block Display Group 002, Display Field 1

Courtesy of AUDI OF AMERICA, INC.

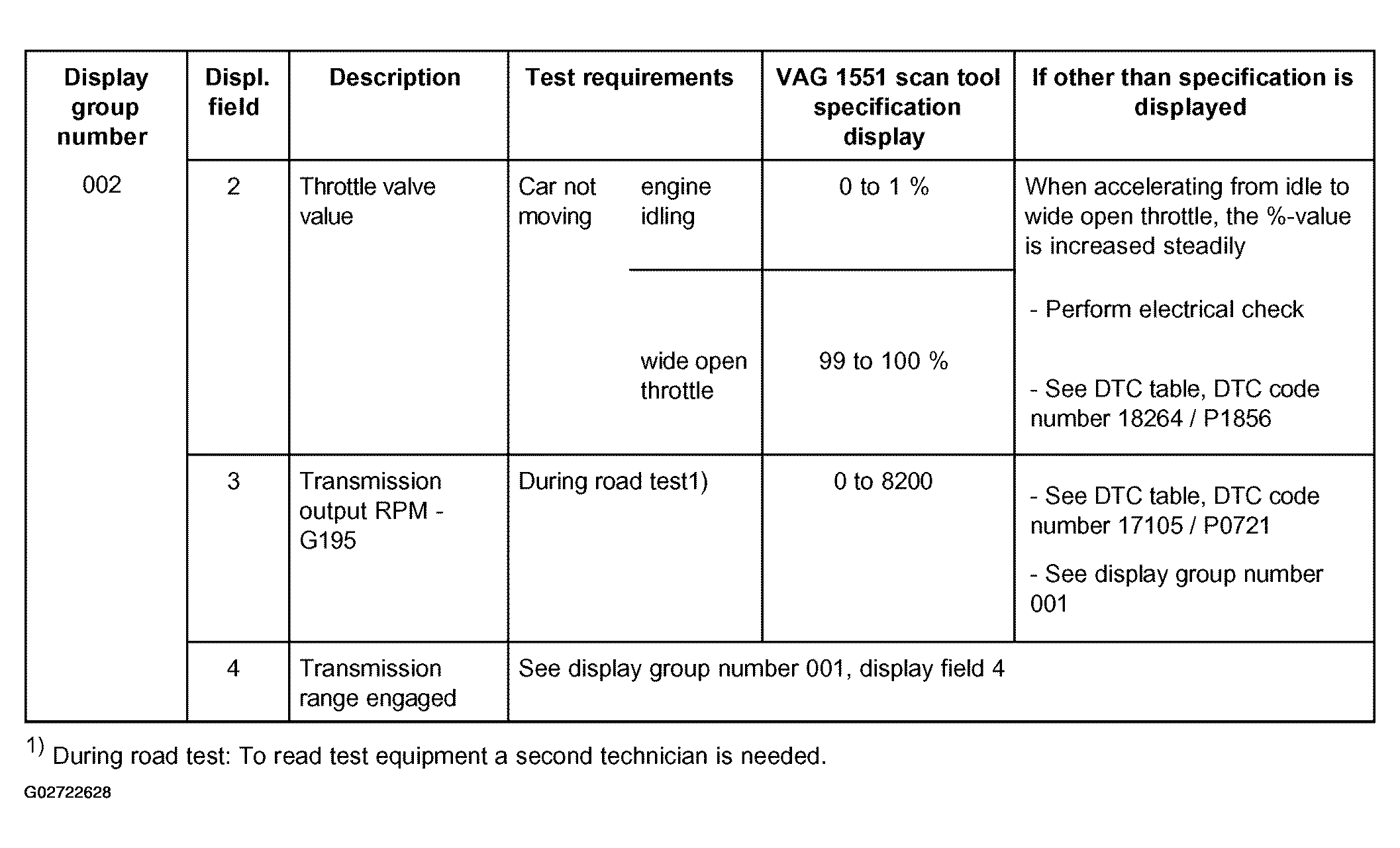

Fig 2: Read Measuring Value Block Display Group 002, Display Fields 2, 3 & 4

Courtesy of AUDI OF AMERICA, INC.

• For electrical check, see ELECTRICAL TESTING .
