Read Measuring Value Block Display Group 001

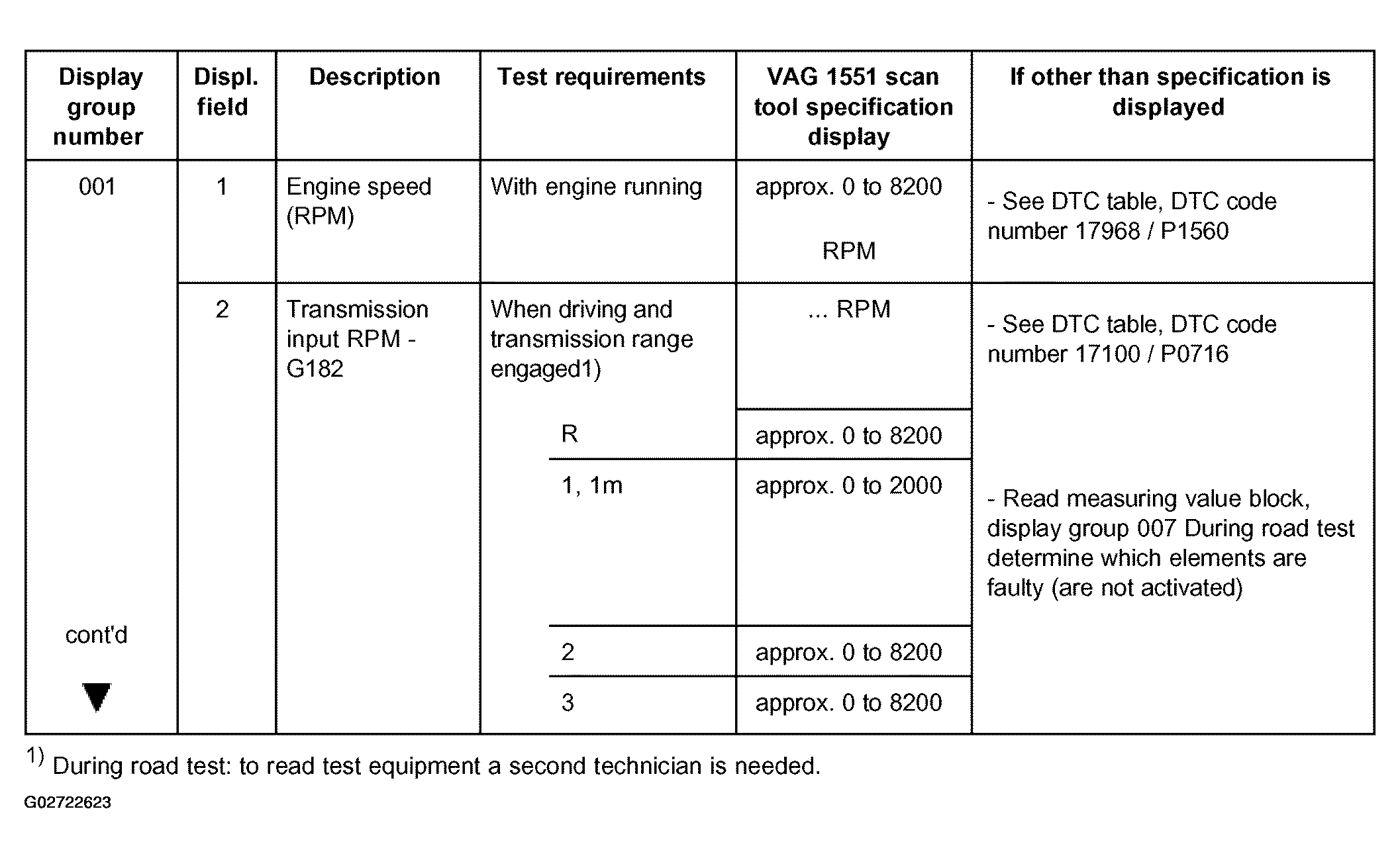

Fig 1: Read Measuring Value Block Display Group 001, Display Fields 1 & 2

Courtesy of AUDI OF AMERICA, INC.

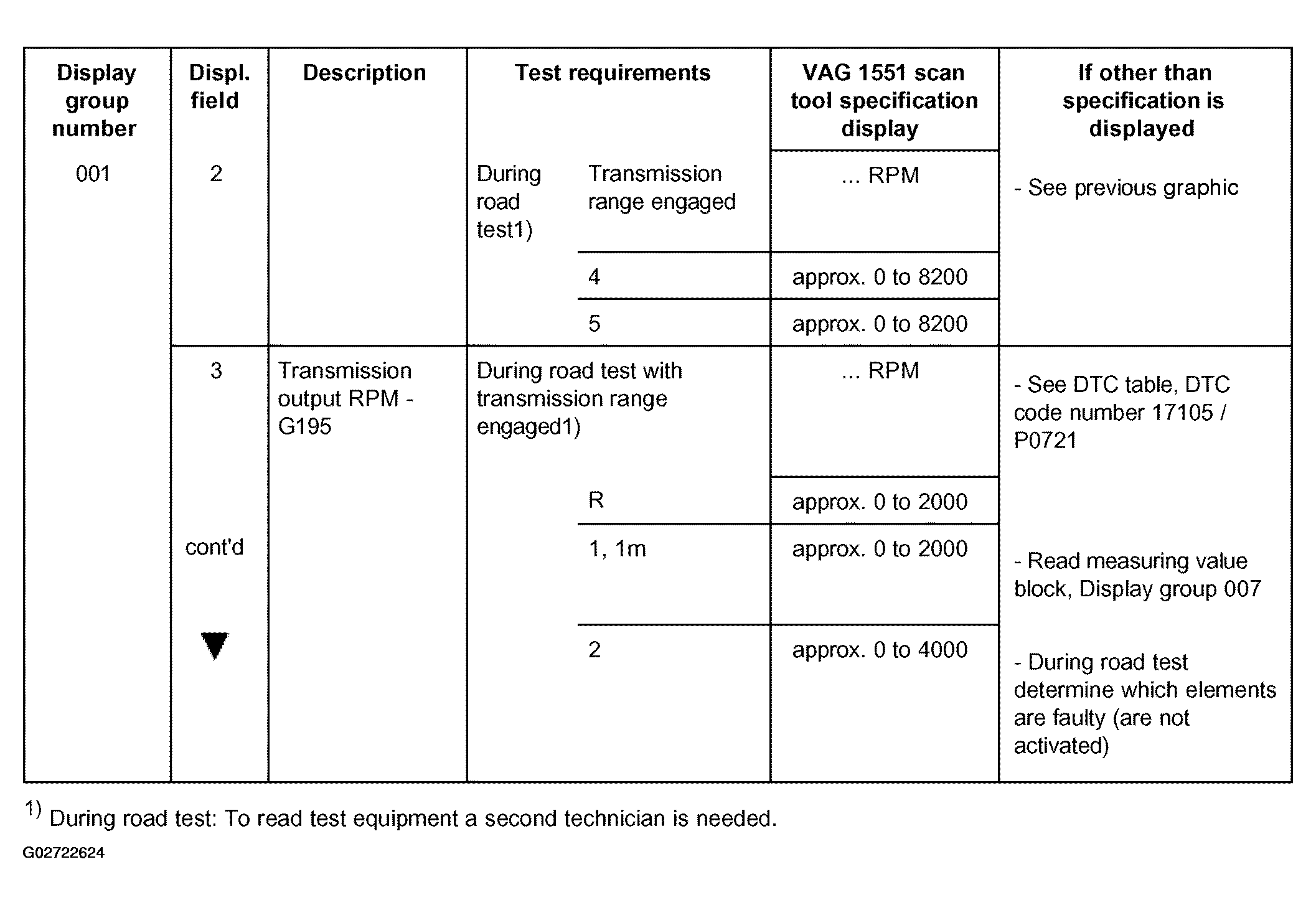

Fig 2: Read Measuring Value Block Display Group 001, Display Fields 2 & 3

Courtesy of AUDI OF AMERICA, INC.

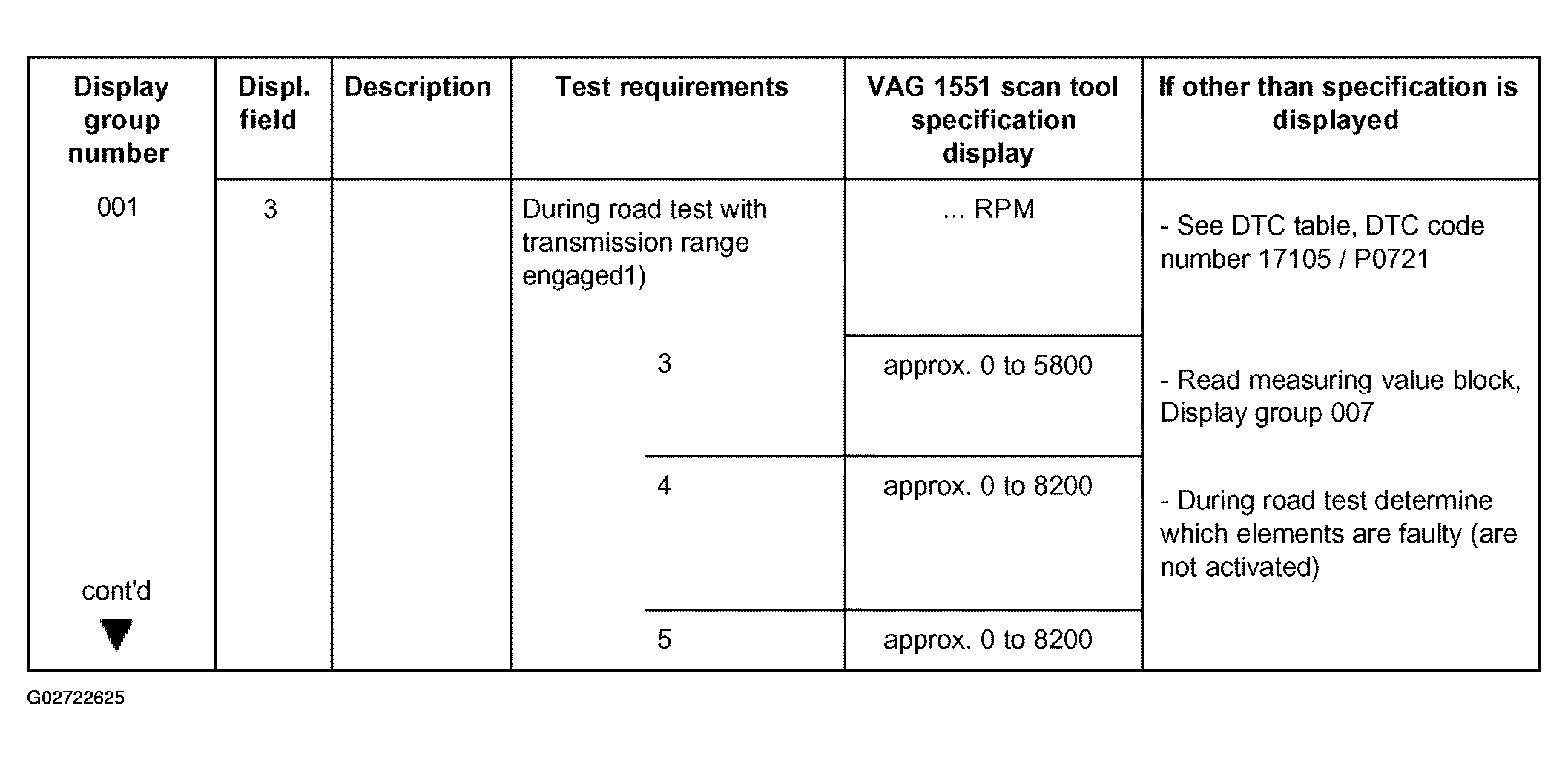

Fig 3: Read Measuring Value Block Display Group 001, Display Field 3 (Cont.)

Courtesy of AUDI OF AMERICA, INC.

Note to Display group number 001, Display field 1 to 3:

• Test requirements: The shifting action must be completed. The vehicle must not decelerate (no downhill driving or engine braking).

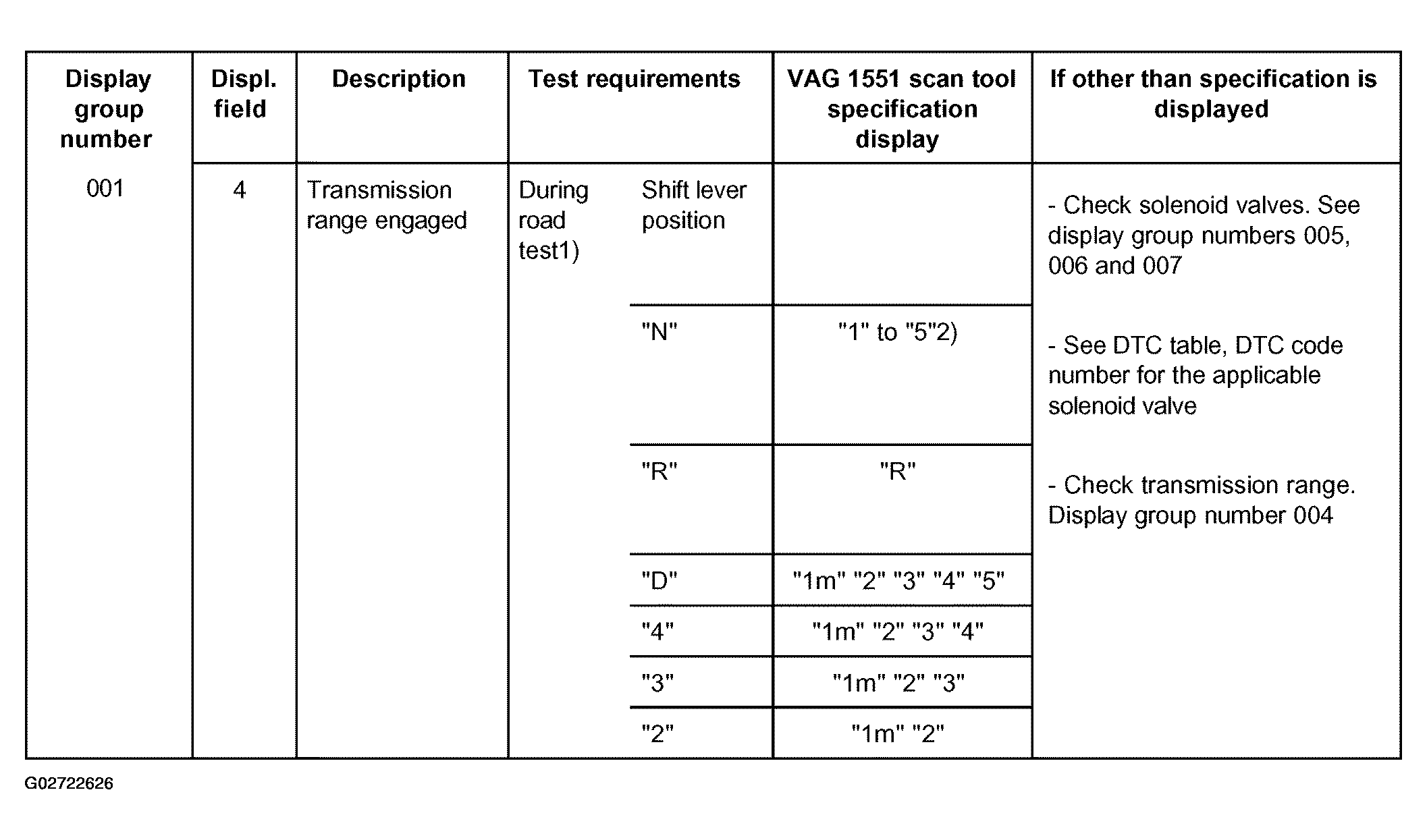

Fig 4: Read Measuring Value Block Display Group 001, Display Field 4

Courtesy of AUDI OF AMERICA, INC.

¹⁾ During road test: To read test equipment a second technician is needed.

²⁾ The transmission is equipped with an automatic transmission range monitor. The forward range is displayed that the TCM would activate if a transmission range change would be made in selector lever position "D".

Note to display field 4, display group number 001:

• Faulty solenoid valves or other DTCs can prevent certain transmission ranges to be activated.
