Code Control Module (Scan tool function 07)

The transmission Control Module (TCM) can be coded.

-Connect Diagnosis and Information System VAS 5051 or VAG 1551 Scan Tool (ST) and select" Transmission Electronics" with address word 02. See ON BOARD DIAGNOSTIC (OBD) . Ignition must be switched on.

Indicated on display:

Fig 1: VAG 1551 Scan Tool Display (Rapid Data Transfer)

G02722604

Courtesy of AUDI OF AMERICA, INC.

Press buttons 0 and 7. (With 07, function "Control module, coding" is selected)

NOTE: Coding can only be done with ignition switched on and in transmission ranges "P" or "N". Do not depress accelerator pedal. The car must be stationary and the engine must not be started.

Indicated on display:

Fig 2: VAG 1551 Scan Tool Display (07 Control Module Coding)

G02722605

Courtesy of AUDI OF AMERICA, INC.

Confirm input by pressing Q button.

Indicated on display:

Fig 3: VAG 1551 Scan Tool Display (Enter Code Number XXXXX)

G02722606

Courtesy of AUDI OF AMERICA, INC.

Entering code. See Fig 4.

Code table

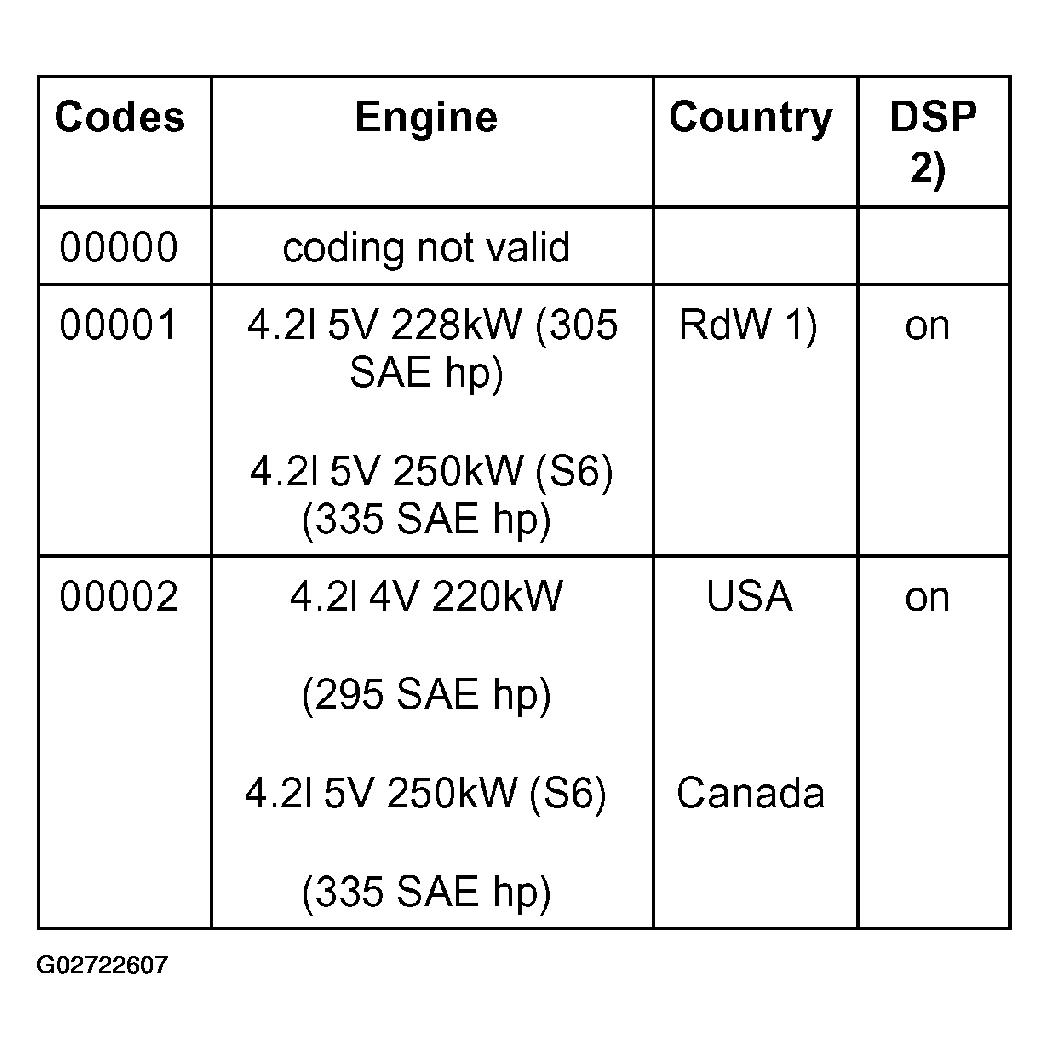

Fig 4: TCM Code Table

G02722607

Courtesy of AUDI OF AMERICA, INC.

¹⁾ RdW: Applies to all oter countries

²⁾ DSP: Dynamic Shift program

Confirm input by pressing Q buttom.

NOTE:

No other codes are permitted.
After coding, the DTC memory in the control module is automatically erased.

Press --> button.

Indicated on display:

Fig 5: VAG 1551 Scan Tool Display (Selection Function XX)

G02722608

Courtesy of AUDI OF AMERICA, INC.

Check control module version (press buttons 0 and 1 ), confirm input by pressing Q button and check code. See ON BOARD DIAGNOSTIC (OBD) .

Indicated on Display Attempt was made to enter a code that was not valid or not recognized by the control module.

Fig 6: VAG 1551 Scan Tool Display (Coding XXXXX Not Accepted)

G02722609

Courtesy of AUDI OF AMERICA, INC.

NOTE:

When a wrong code was entered, the control module retains the old code.

Indicated on Display (example)

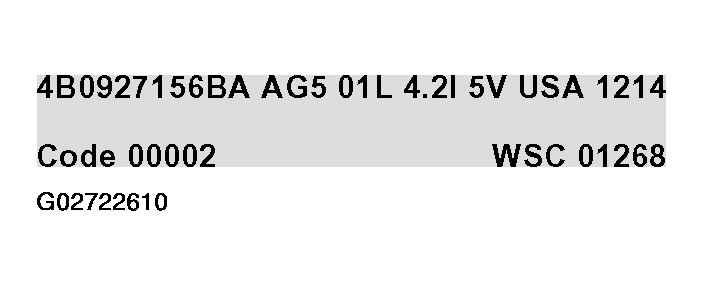

Fig 7: VAG 1551 Scan Tool Display (Code 00002 - WSC 01268)

G02722610

Courtesy of AUDI OF AMERICA, INC.

NOTE:

Only with old tester cards for the VAG. 1551 scan tool, can the old code be shown when an invalid code was entered.

Indicated on Display

Fig 8: VAG 1551 Scan Tool Display (Unknown Function)

G02722611

Courtesy of AUDI OF AMERICA, INC.

Coding was attempted when not permitted, for instance when the car was being driven.
