Checking ground wire

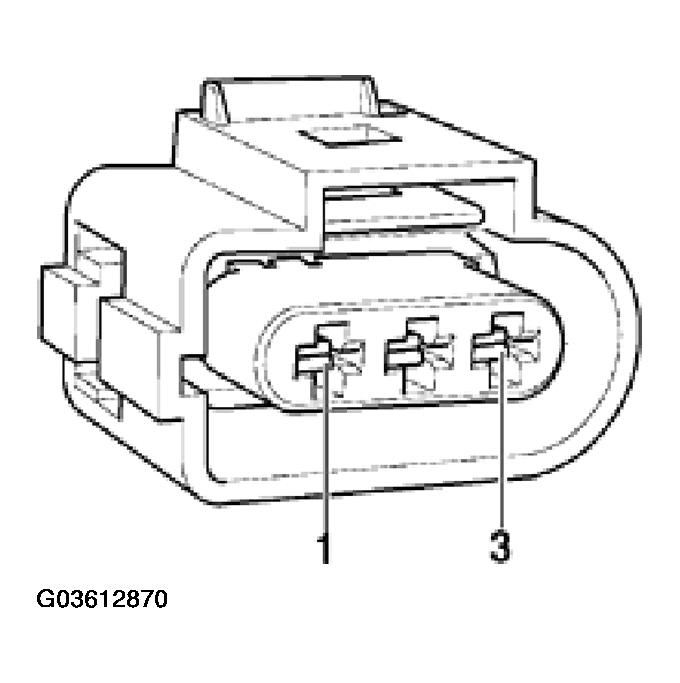

- Connect multimeter as follows to measure voltage:CMP SENSOR CIRCUIT TEST: GROUND WIRE
Connector terminal Measure to 3 Battery positive - Specified value: approx. 10 V
- Repair any open/short circuit as necessary.
If the specified values are all achieved and the LED test light does not flash (measured between terminals 1 and 2 with starter connector attached):
- Install a new CMP sensor.
If the specified values are not obtained:
