Example 3:

Based on the DTCs entered in the DTC memory, it can be seen that no transmission or reception activity is possible in any of the control modules.

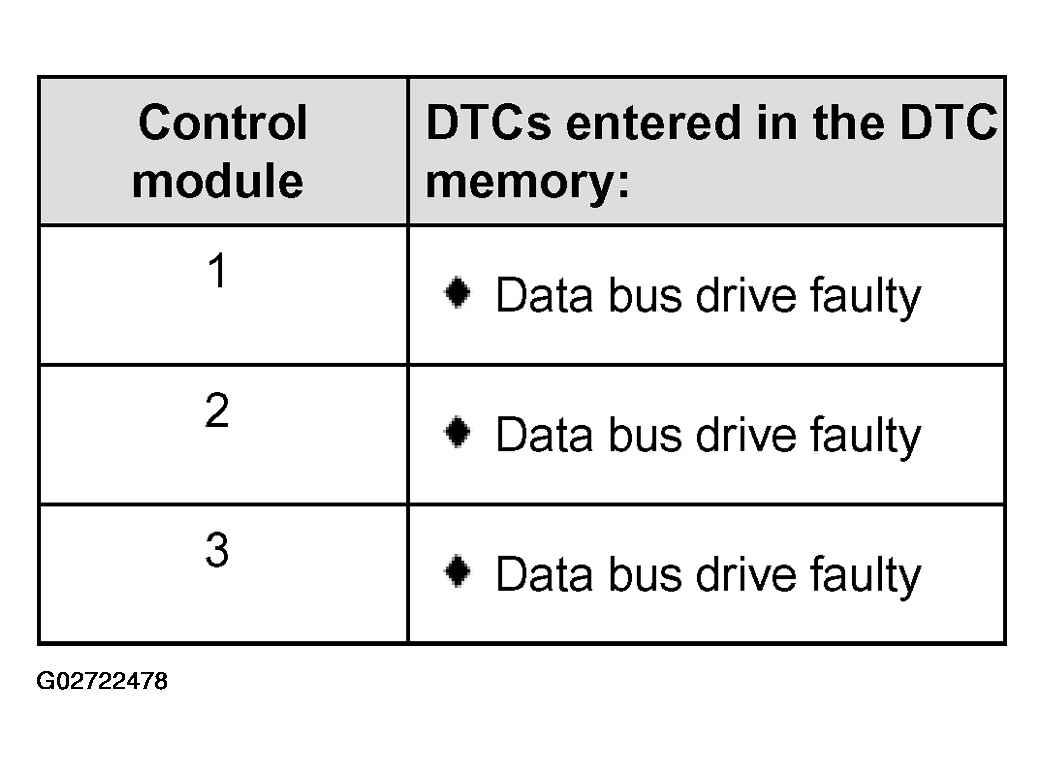

Fig 1: DTC Memory - No Transmission Or Reception Activity Is Possible In Any Of The Control Modules

Courtesy of AUDI OF AMERICA, INC.

• Switch ignition OFF.
• Disconnect control modules connected by bus circuit wiring and inspect bus wiring for a short circuit to B+ and to ground.

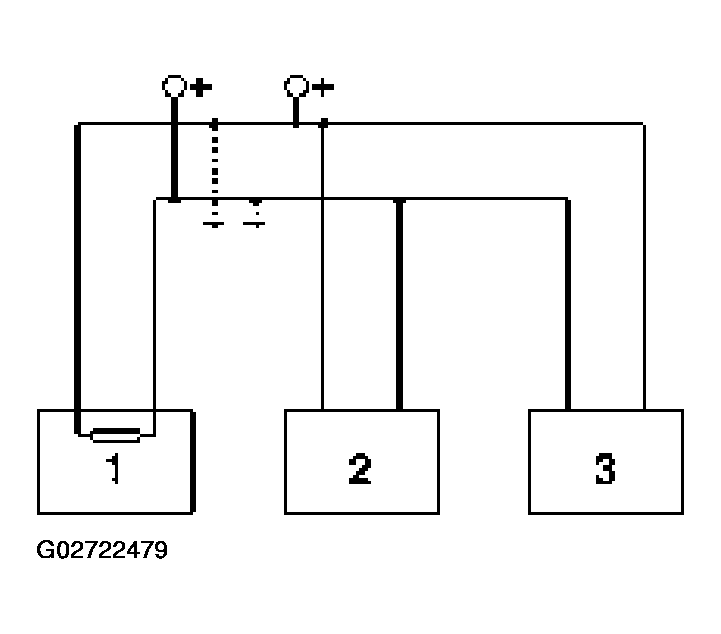

Fig 2: Bus Circuit Schematic - Short Circuit To B+ And To Ground

Courtesy of AUDI OF AMERICA, INC.
