Coding chart
TRANSMISSION CONTROL MODULE CODING
| Code number | For vehicles |
|---|---|
| 01001 | USA and Canada |

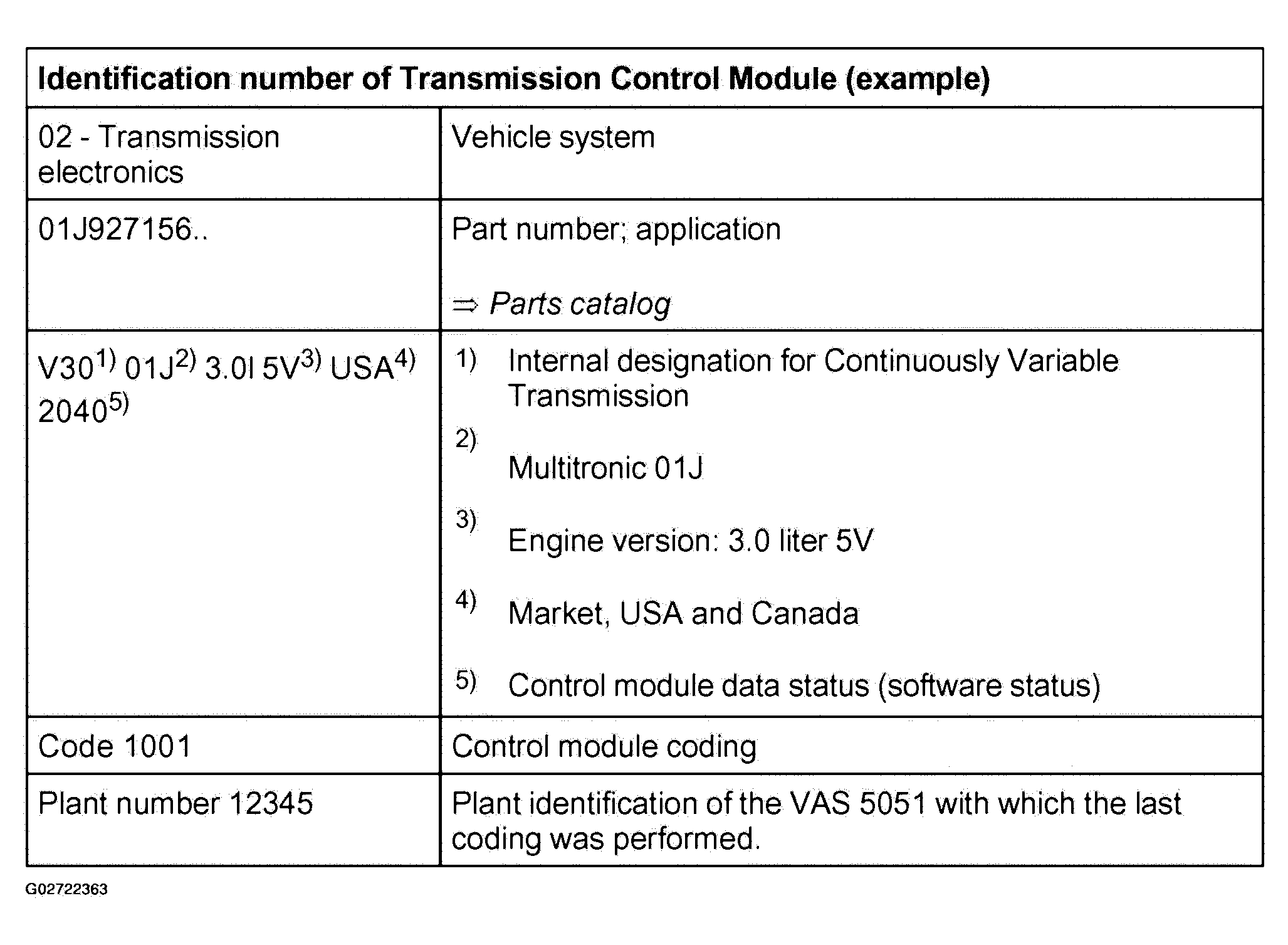

| 00000 | Impermissible code If this code is displayed, an incorrect transmission may have been installed or it has been incorrectly coded. Check control module identification number. See Figure. |
NOTE:
After coding, the Transmission Control Module DTC memory is automatically deleted.
Display on VAS 5051:
- Coding is being carried out
- Wait until next display appears on screen.
Display on VAS 5051:
- Coding in the vehicle system completed
- Control module identification number with new coding (previous coding in parentheses)
- Terminate function "07 Coding Control Module" by pressing <-- button.
- Perform adaptation. See ADAPTATION .
