Perform encoding

Display:

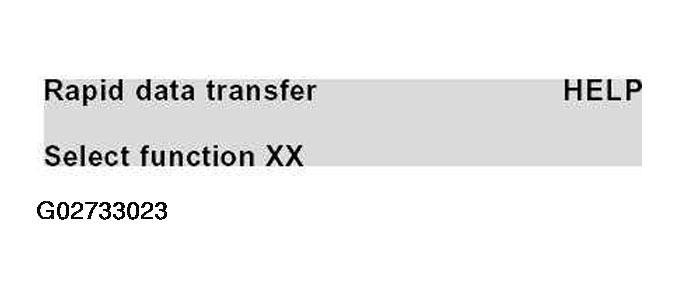

Fig 1: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

• Press Buttons 0 and 7 (Button 07 selects the "Code Control Module" function).

Display:

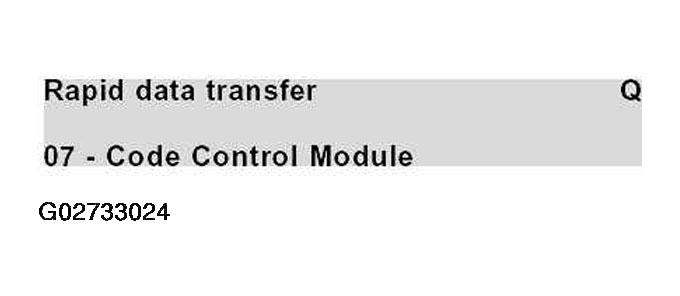

Fig 2: VAG 1551 Scan Tool - 07 - Code Control Module

Courtesy of AUDI OF AMERICA, INC.

• Confirm the entry using the Q button.

Display:

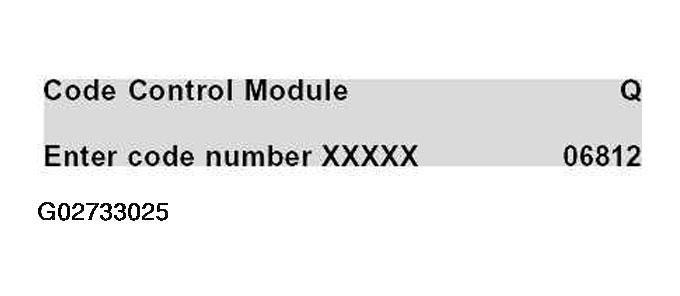

Fig 3: VAG 1551 Scan Tool - Enter Code Number XXXXX

Courtesy of AUDI OF AMERICA, INC.

• Enter the code number using the code table enter. See CODE TABLE  .
