Encoding: 20329

• 1st position = Manufacturer: 2 = Audi
• 2nd position = 0
• 3rd position = Configuration: 3 = 4 antennas, 4 wheels, four-wheel monitoring
• 4th position = Target pressure partially laden: 2 = X.2 bar
• 5th position = Target pressure fully laden: 9 = X.9 bar

• The control module identification appears on the display with the code entered (20329).

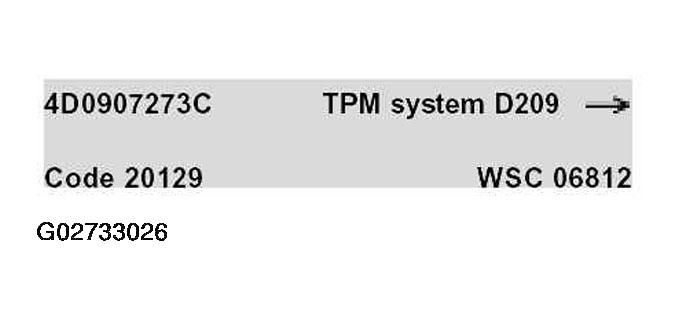

  Fig 1: VAG 1551 Scan Tool - Code 20129 (Example Code)

  Courtesy of AUDI OF AMERICA, INC.
• Terminate encoding using the --> button.

Display

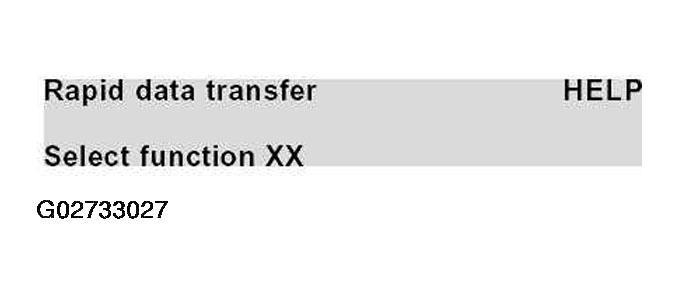

Fig 2: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

• Press Buttons 0 and 6

Display:

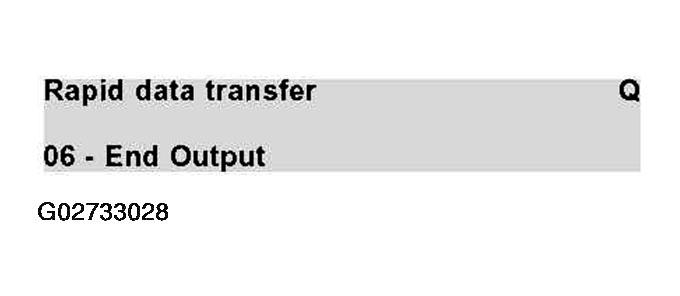

Fig 3: VAG 1551 Scan Tool - 06 - End Output

Courtesy of AUDI OF AMERICA, INC.

• Confirm entry using the Q button.
