Code table

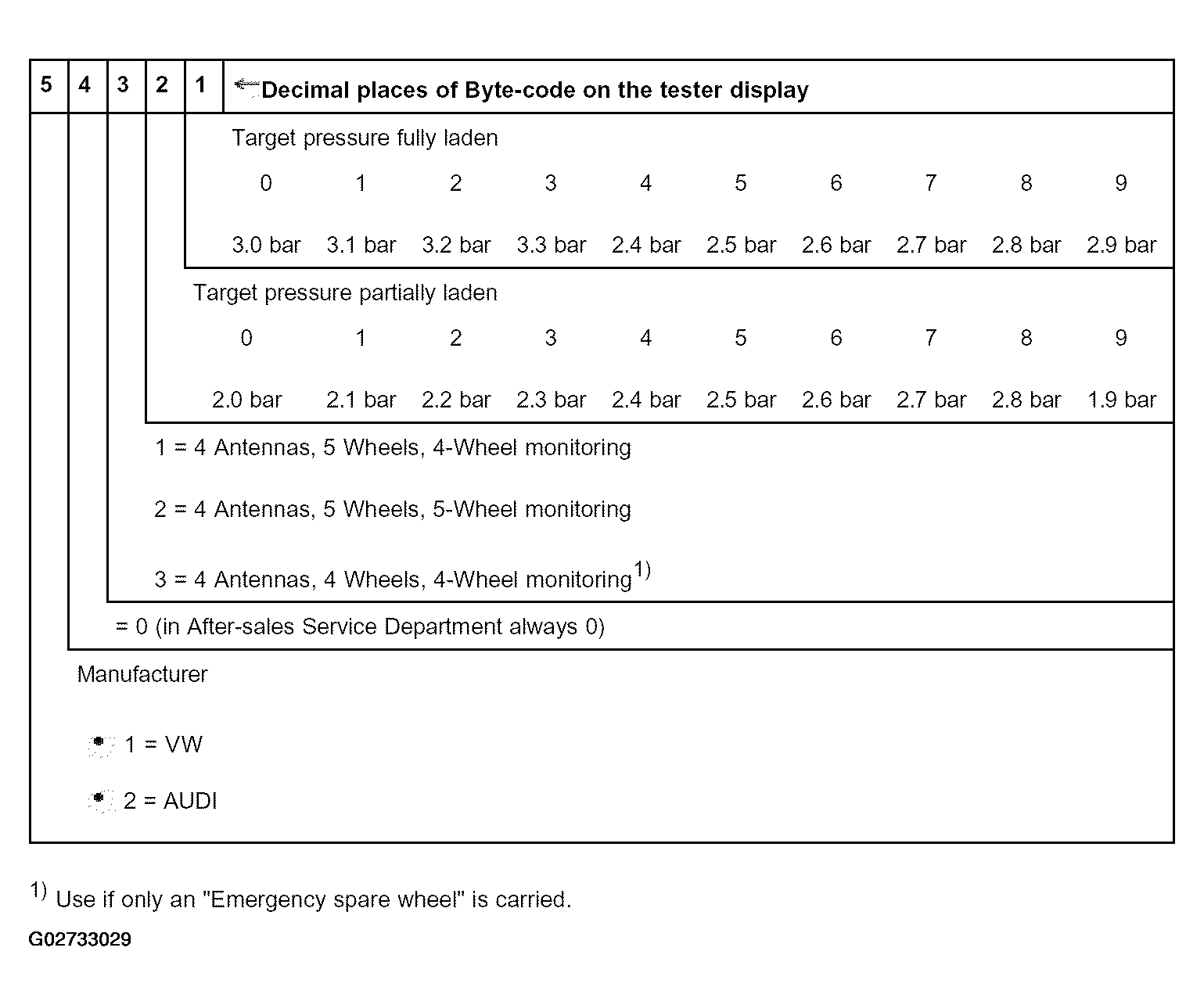

Fig 1: Control Module Code Table - Tire Pressure Monitoring System

Courtesy of AUDI OF AMERICA, INC.

• The control module identification appears on the display with the code entered (20129).
• Terminate encoding using the --> button.

Display

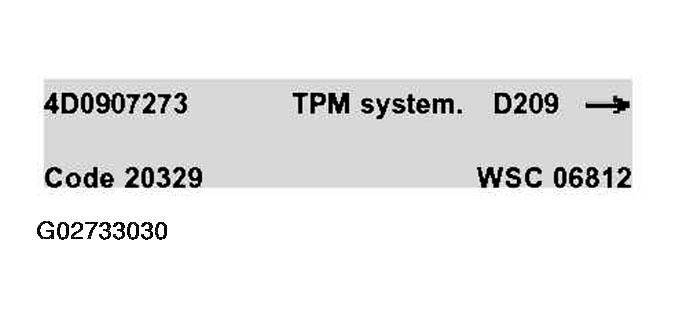

Fig 2: VAG 1551 Scan Tool - Code 20329

Courtesy of AUDI OF AMERICA, INC.

• Press Buttons 0 and 6

Display:

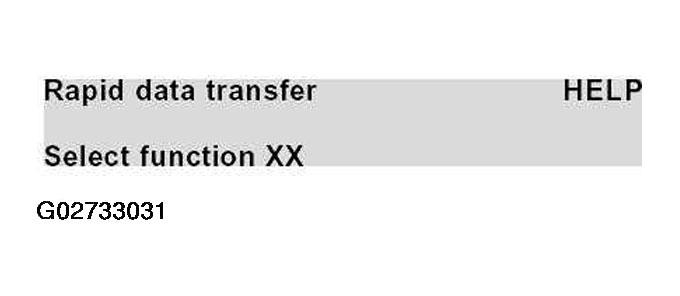

Fig 3: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

• Confirm entry using the Q button.

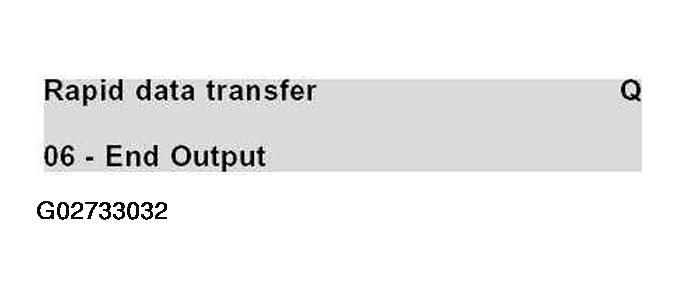

  Fig 4: VAG 1551 Scan Tool - 06 - End Output

  Courtesy of AUDI OF AMERICA, INC.
