Test sequence

Connect scan tool VAG1551 and select self leveling suspension system control module with the ignition switched on (Address word 34);

Display:

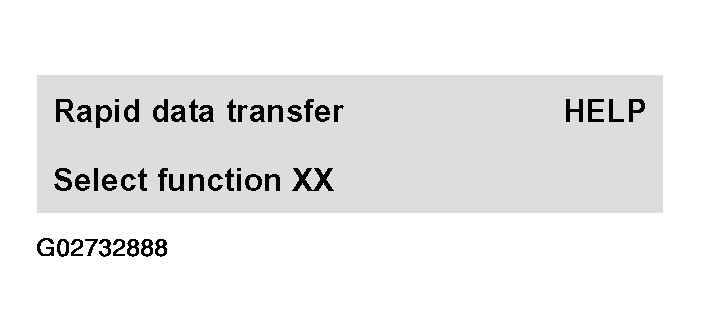

Fig 1: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

Display:

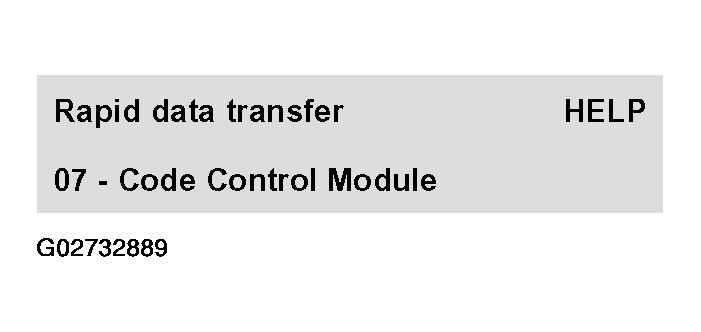

Fig 2: VAG 1551 Scan Tool - 07 - Code Control Module

Courtesy of AUDI OF AMERICA, INC.

Display:

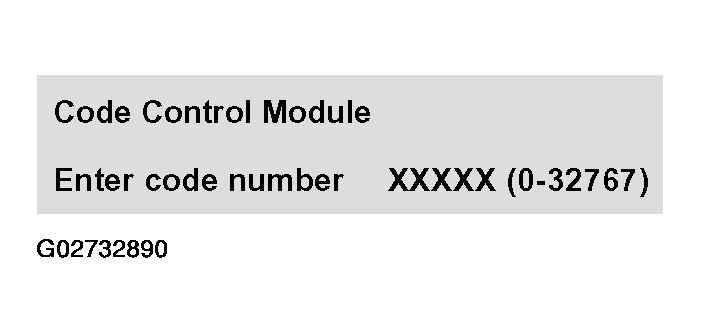

Fig 3: VAG 1551 Scan Tool - Enter Code Number

Courtesy of AUDI OF AMERICA, INC.

Code number: 25500

Enter code number and confirm using the Q button.

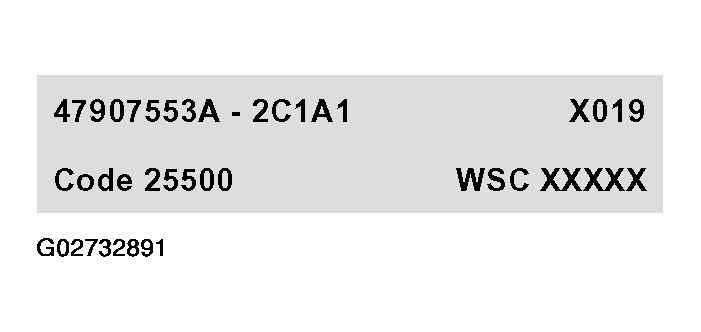

Fig 4: VAG 1551 Scan Tool - Code 25500
Courtesy of AUDI OF AMERICA, INC.
The control module identification is shown on the display of the VAG1551 scan tool e.g.: 4Z790553
Press the --> button.

Display:

Fig 5: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.
