Engine Control Module (ECM), coding: Notes

Connect vehicle diagnostic, testing and information system VAS5051. See VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM VAS5051, CONNECTING AND SELECTING FUNCTIONS , and select vehicle system "01 - Engine electronics". Ignition must be switched on.

Display on VAS5051:

Fig 1: Scan To Display And Select Diagnostic Function

Courtesy of AUDI OF AMERICA, INC.

Display on VAS5051:

Fig 2: Scan To Display And Enter Code Word

Courtesy of AUDI OF AMERICA, INC.

Vehicles with control module No. 8E0909...

Enter 7-digit control module code in zone -2- in accordance with ENCODING TABLE .

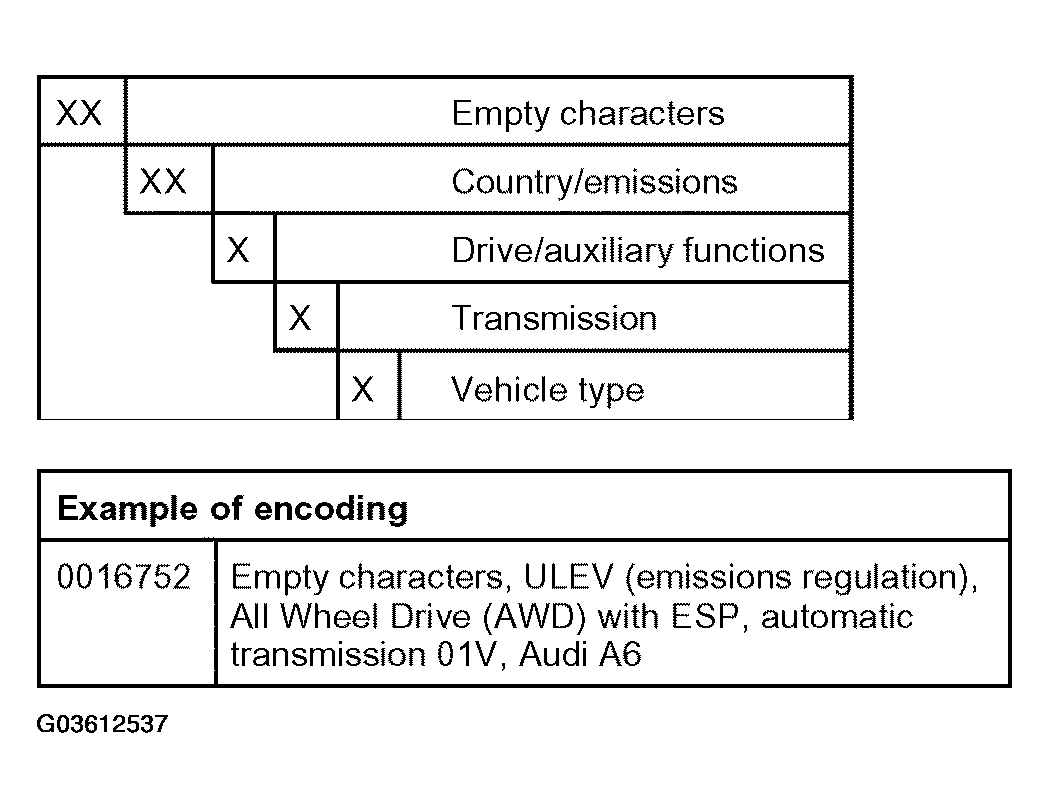

Fig 3: Key To ECM Code Chart

Courtesy of AUDI OF AMERICA, INC.

EXAMPLE OF ECM ENCODING

Code	Explanation
0016752	Empty characters, ULEV (emissions regulation), All Wheel Drive (AWD) with ESP, automatic transmission 01V, Audi A6
