Performing login

• Connect VAS 5051 vehicle diagnostic, testing and information system or VAG 1551 scan tool and select address word 03 for "Brake electronics". See VAG 1551 SCAN TOOL, CONNECTING AND ENTERING ADDRESS WORD  .

Indicated on display

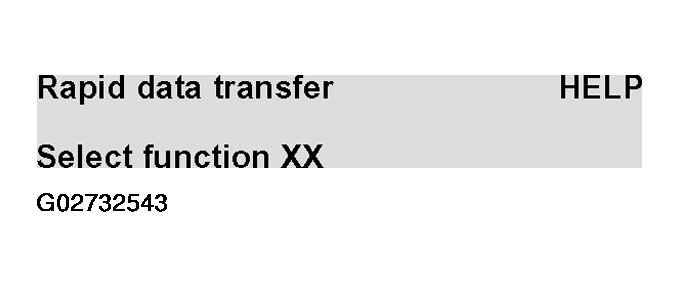

Fig 1: VAG 1551 Scan Tool Display - Selection Function XX

Courtesy of AUDI OF AMERICA, INC.

• Press button -1- twice to select function "Login procedure".

Indicated on display

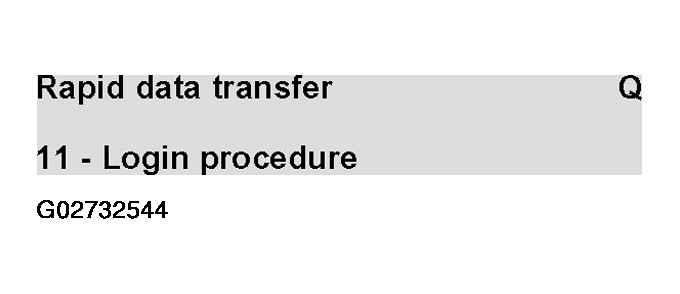

Fig 2: VAG 1551 Scan Tool Display - 11 - Login Procedure

Courtesy of AUDI OF AMERICA, INC.

• Confirm entry with -Q- button.

Indicated on display

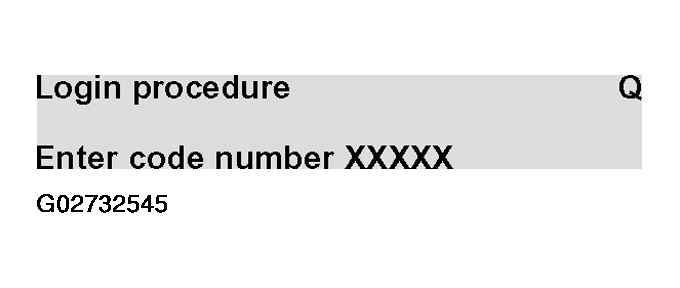

Fig 3: VAG 1551 Scan Tool Display - Enter Code Number XXXXX

Courtesy of AUDI OF AMERICA, INC.

• Enter the required code number according to the following table and confirm entry with -Q- button.
