Coding control module

Indicated on display

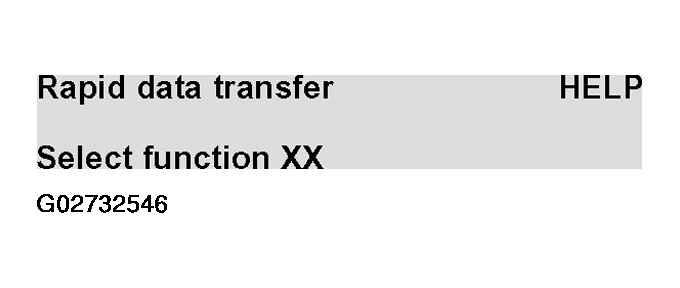

Fig 1: VAG 1551 Scan Tool Display - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

• Press buttons -0- and -7- to select function "Code Control Module" and confirm with -Q- button.

Indicated on display

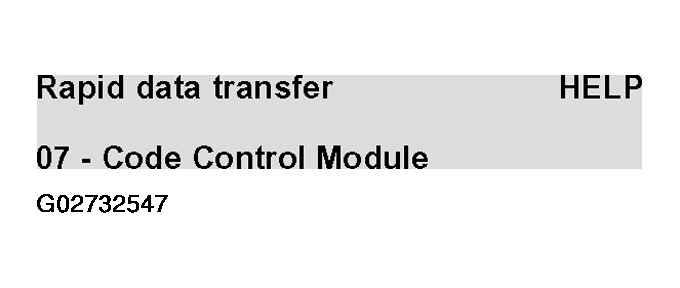

Fig 2: VAG 1551 Scan Tool Display - 07 - Code Control Module

Courtesy of AUDI OF AMERICA, INC.

• Press -Q- button to confirm input.

Indicated on display

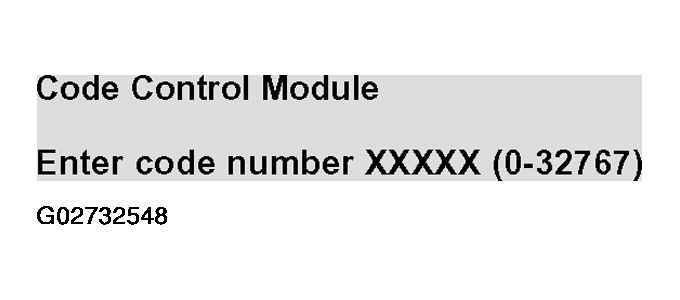

Fig 3: VAG 1551 Scan Tool Display - Enter Code Number XXXXX (0-32767)

Courtesy of AUDI OF AMERICA, INC.

• Enter the required code number according to the following table and confirm entry with -Q- button.
