Check Control Module Versions (function 01)

• Press buttons -0- and -1-.

Indicated on display:

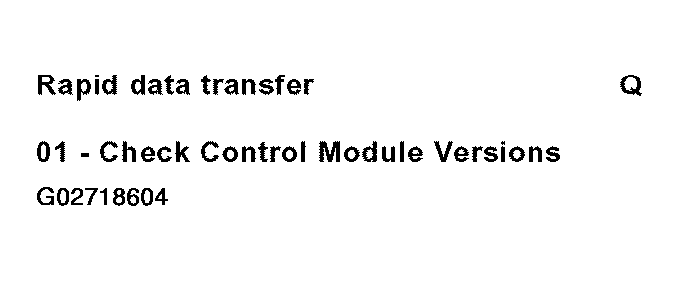

Fig 1: V.A.G 1551 Scan Tool (ST) Display - Ultrasonic Interior Monitor, Check Control Module Versions (Function 01) (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Confirm entry with -Q- button.

Indicated on display:

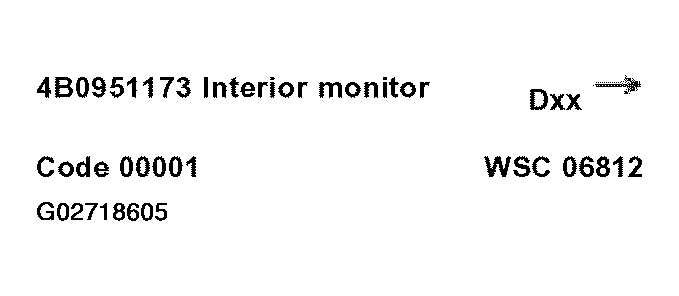

Fig 2: V.A.G 1551 Scan Tool (ST) Display - Ultrasonic Interior Monitor, Check Control Module Versions (Function 01) (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Explanatory notes on display:

• 4B0951173: Control module number
• Interior monitor: Component designation and version
• Dxx: Software version
• Code 00001: Coding. See CODE CONTROL MODULE (FUNCTION 07)  .
• WSC 06812: Workshop code

• Pressing --> button affects return to basic function.

Indicated on display:

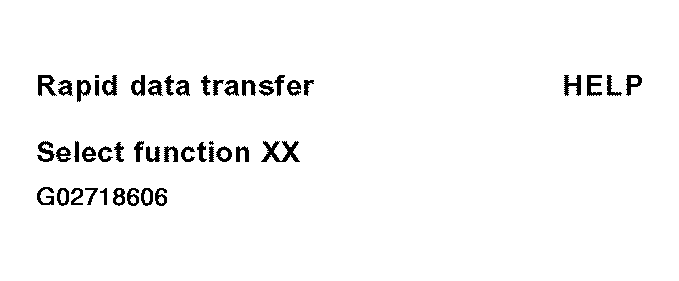

Fig 3: V.A.G 1551 Scan Tool (ST) Display - Ultrasonic Interior Monitor, Check Control Module Versions (Function 01) (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.
