Code Control Module (function 07): Procedure
- Initiate On Board Diagnostic (OBD) of automatic vertical headlight aim control. See AUTOMATIC VERTICAL HEADLIGHT AIM CONTROL ON BOARD DIAGNOSTIC (OBD), INITIATING .
Display on VAS 5051:

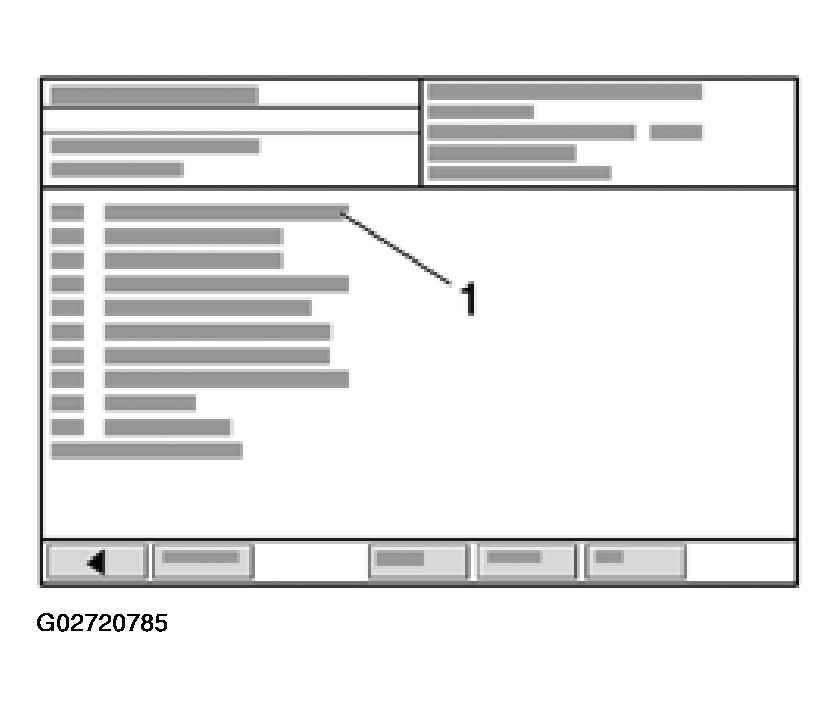

- Select diagnostic function "07 - Code Control Module" in selection -1-.
Display on VAS 5051:
- Enter code word Max. input value = 32767
- Enter 5-digit coding in button field -2-. Insert zeros in front.
CODE DESCRIPTION - AUTOMATIC HEADLIGHT AIM CONTROL
| Code | Vehicle model/drive layout |
|---|---|
| 00020 | A6/S6 sedan/Avant |
| 00030 | allroad quattro |
Example:
Desired input value: 20
Keypad input: 00020
- Press -Q- button to confirm input.
Display on VAS 5051:
- Coding will be performed
- Wait until the next indication appears on display.

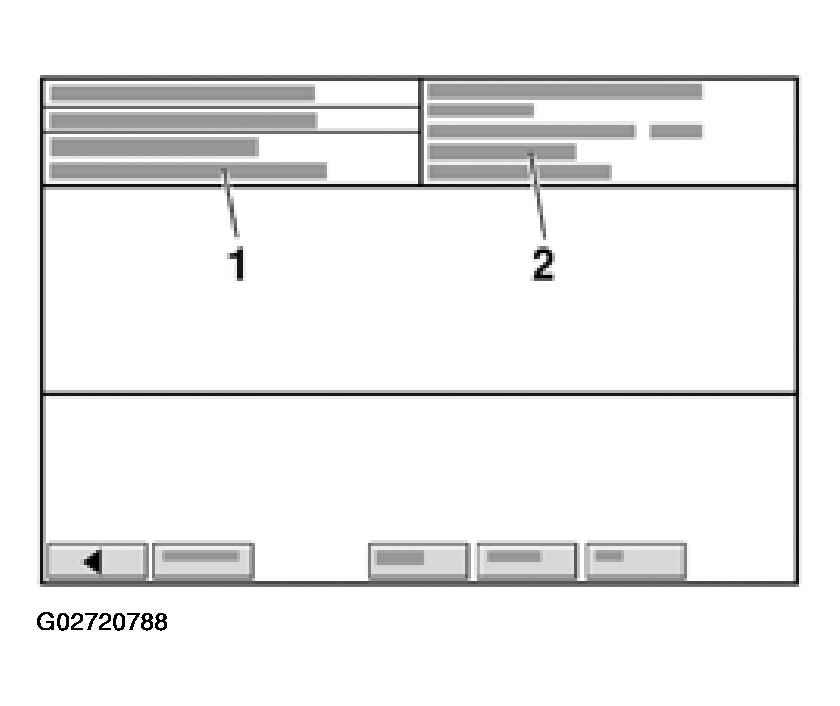

Display on VAS 5051:
- Coding in vehicle system performed
- Control module identification with new coding
- (previous coding in parentheses)
- End function "07 - Erase DTC Memory" by pressing <-- button.
- Initiate Output Diagnostic Test Mode (DTM). See BASIC SETTING (FUNCTION 04) .
