Coding table - from m.y. 2002

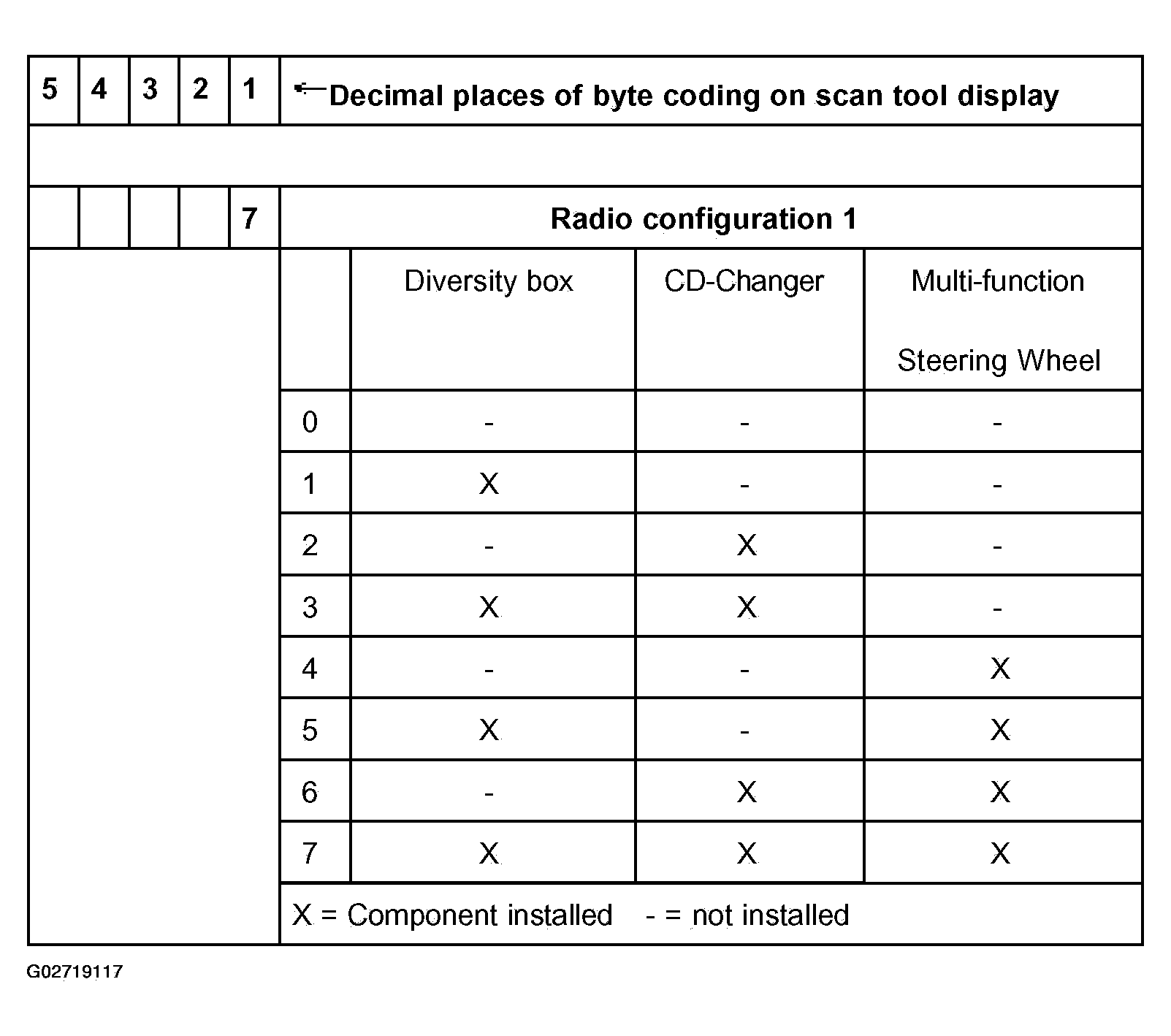

Fig 1: Radio Coding Table - From M.Y. 2002 (1 Of 4)
G02719117Courtesy of AUDI OF AMERICA, INC.

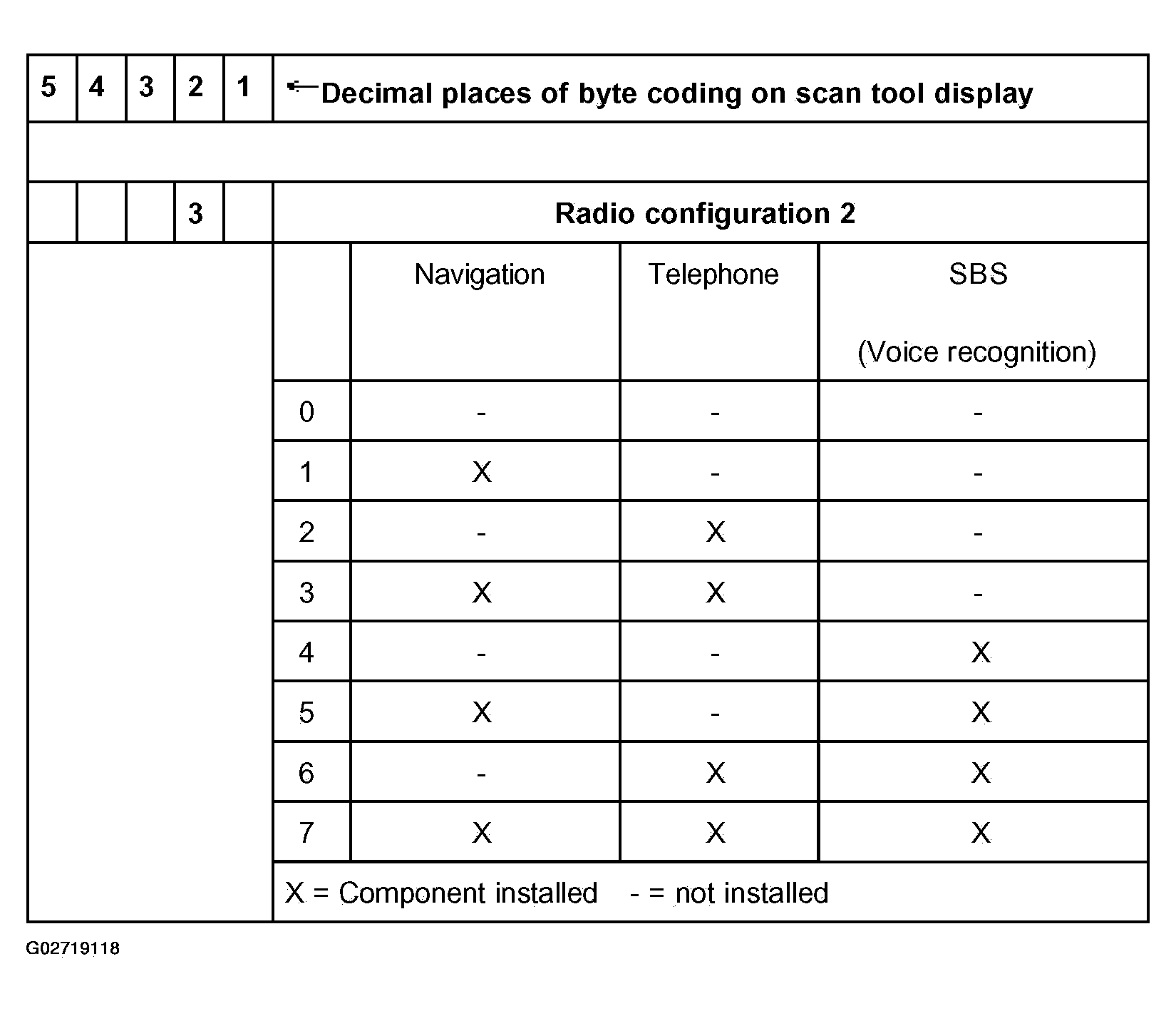

Fig 2: Radio Coding Table - From M.Y. 2002 (2 Of 4)
G02719118Courtesy of AUDI OF AMERICA, INC.

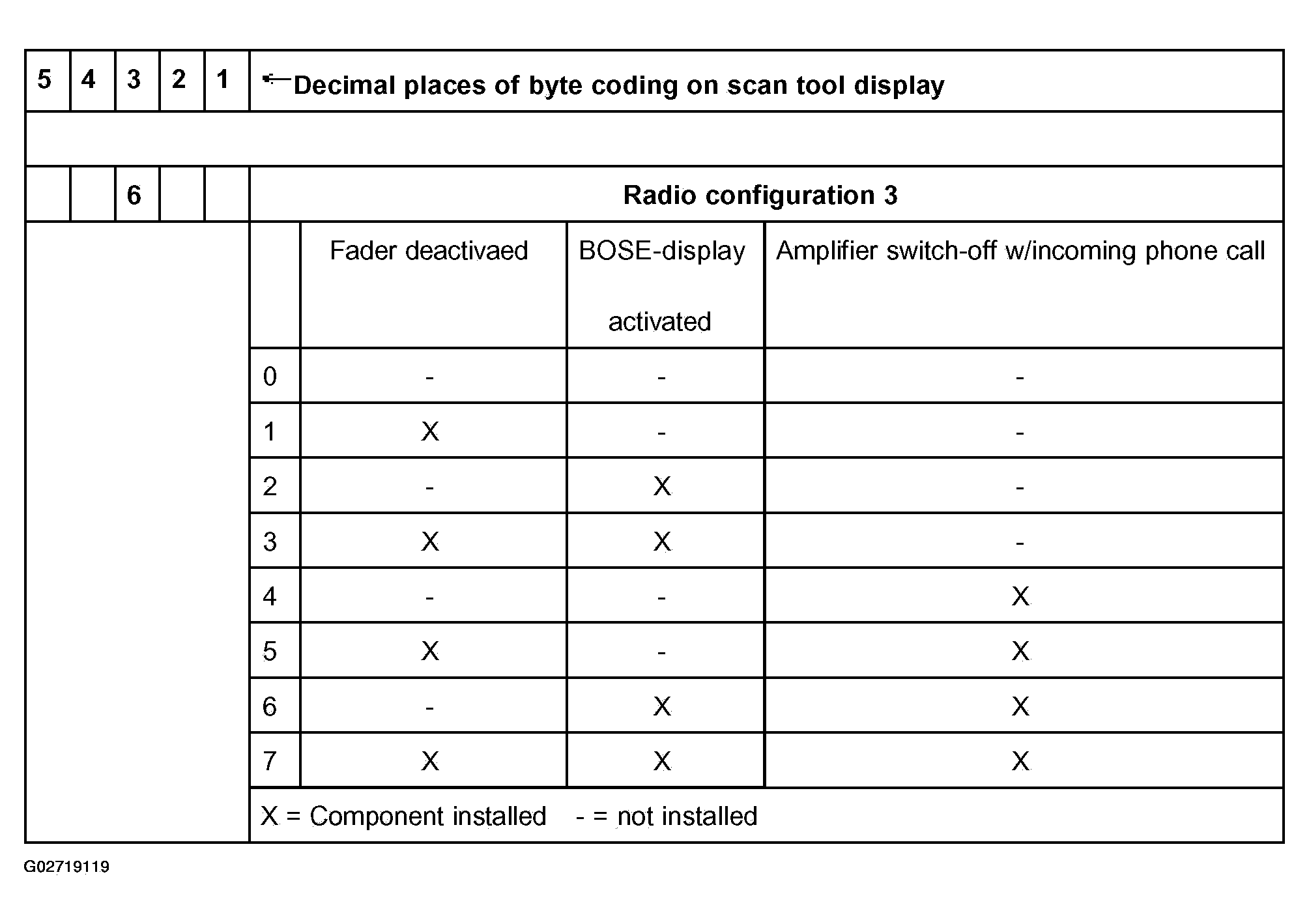

Fig 3: Radio Coding Table - From M.Y. 2002 (3 Of 4)
G02719119Courtesy of AUDI OF AMERICA, INC.

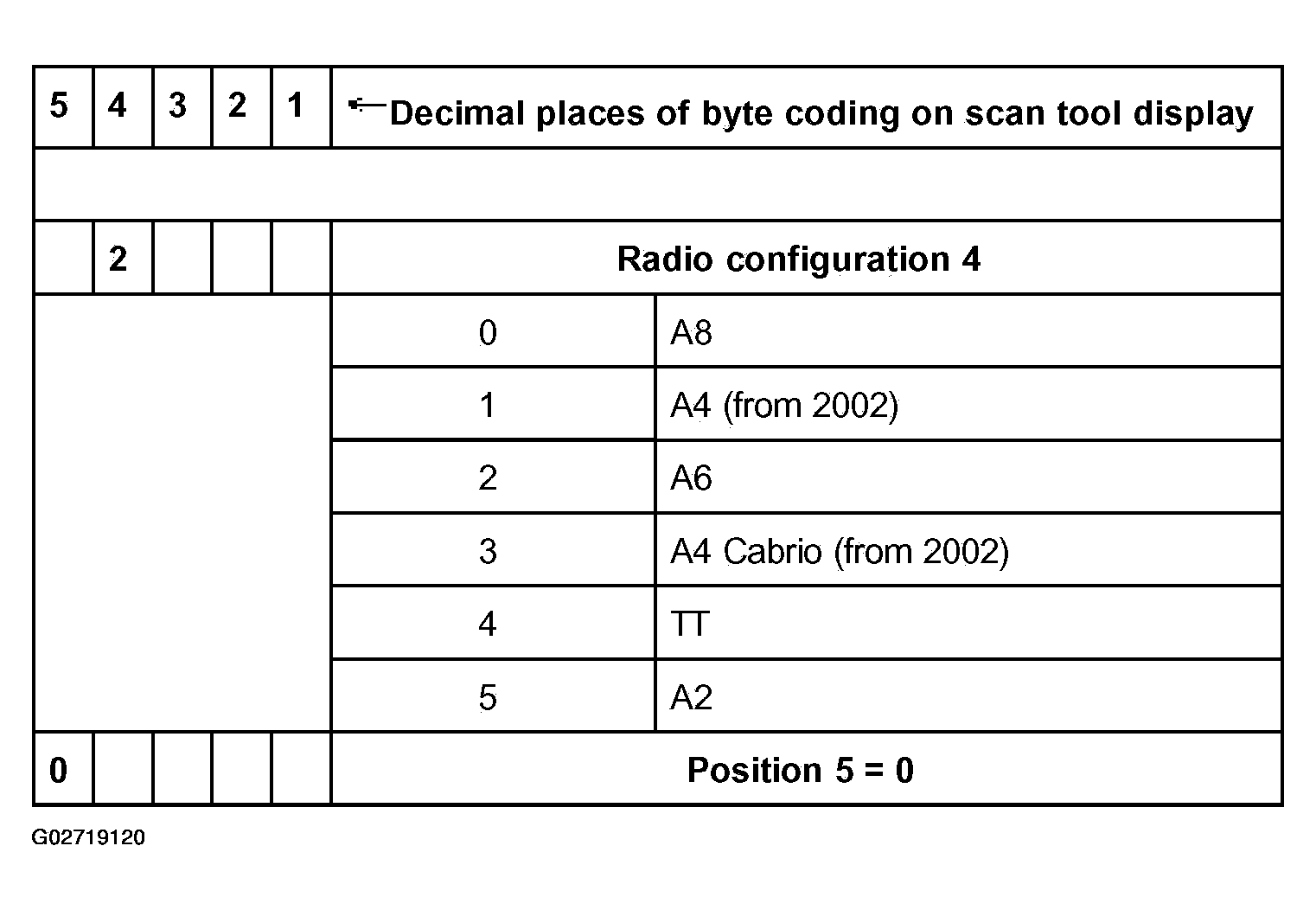

Fig 4: Radio Coding Table - From M.Y. 2002 (4 Of 4)
G02719120Courtesy of AUDI OF AMERICA, INC.
