Coding procedure

Indicated on display

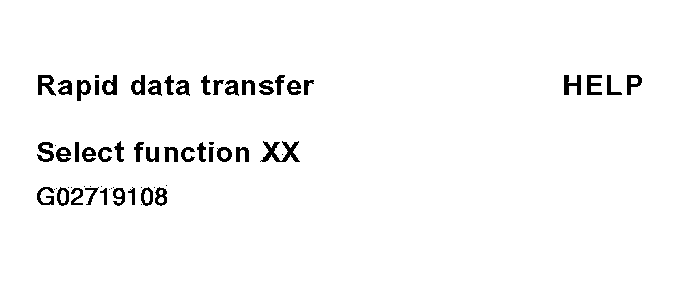

Fig 1: VAG1551 Scan Tool Display - Code Control Module, Radio (1 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display

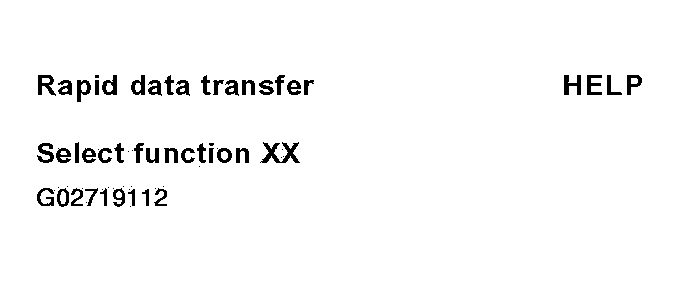

Fig 2: VAG1551 Scan Tool Display - Code Control Module, Radio (2 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display

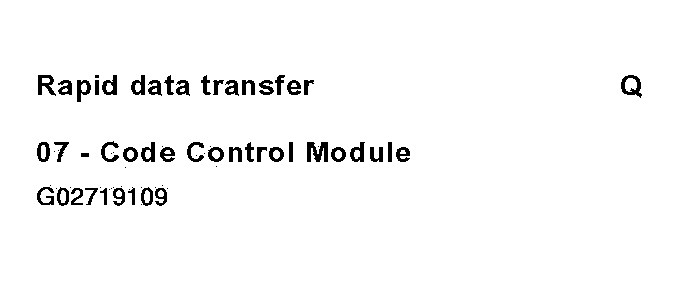

Fig 3: VAG1551 Scan Tool Display - Code Control Module, Radio (3 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Input code number per coding table through m.y. 2001. See CODING TABLE - THROUGH M.Y. 2001 .
Input code number per coding table from m.y. 2002. See CODING TABLE - FROM M.Y. 2002 .

Through m.y. 2001

Coding example: 00117

Country identification: 0 = standard
Sound coordination: 0 = standard
Number of passive loudspeakers: 1 = 1 passive loud speaker, front left (Bose with telephone)
Sound system: 1 = BOSE sound system
Radio configuration: 7 = radio system with CD changer unit and secondary display

From m.y. 2002

Coding example: 02637

Radio configuration 5: 0 = standard
Radio configuration 4: 2 = A6
Radio configuration 3: 6 = with BOSE and amplifier switch-off w/incoming phone call
Radio configuration 2: 3 = with Navigation and Telephone
Radio configuration 1: 7 = with diversity, CD changer and multi-function steering wheel

Indicated on display (the control module identification and the coding that was input, 02637)

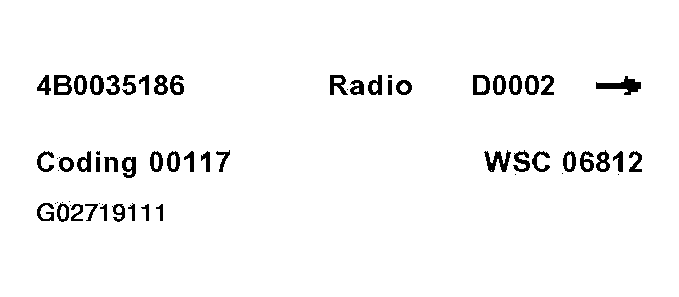

Fig 4: VAG1551 Scan Tool Display - Code Control Module, Radio (4 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display

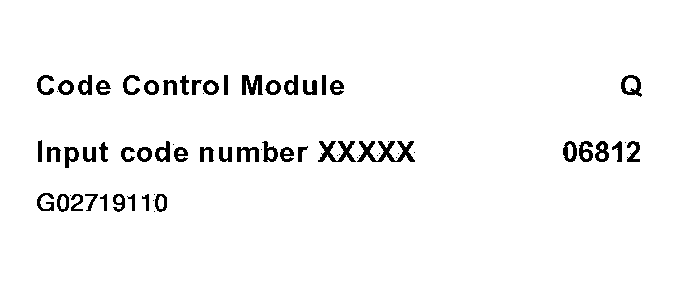

Fig 5: VAG1551 Scan Tool Display - Code Control Module, Radio (5 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display

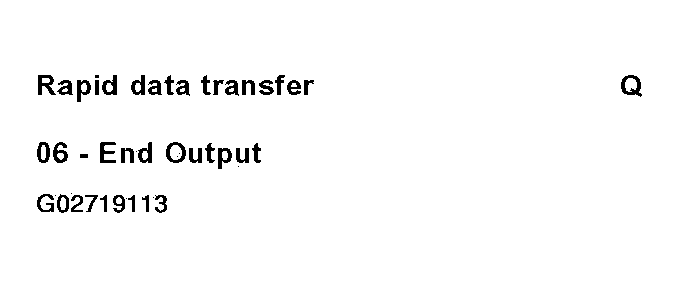

Fig 6: VAG1551 Scan Tool Display - Code Control Modul, Radio (6 Of 6)

Courtesy of AUDI OF AMERICA, INC.
