Read Measuring Value Block, initiating

Indicated on display

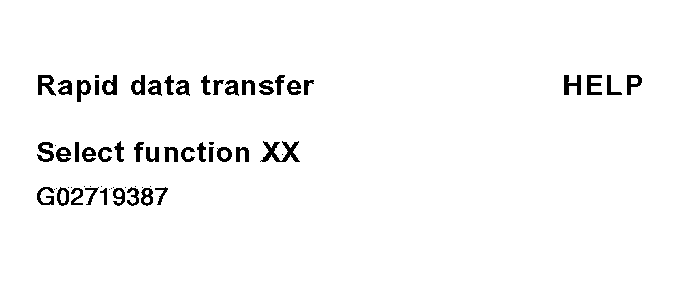

Fig 1: VAG1551 Scan Tool Display - Read Measuring Value Block, Initiating - Multi-Function Steering Wheel (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Press buttons -0- and -8- to select "Read Measuring Value Block" function 08.

Indicated on display

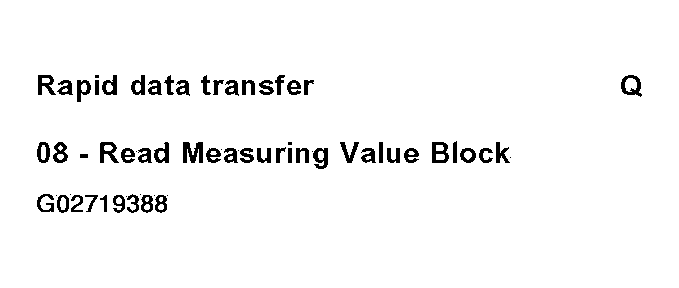

Fig 2: VAG1551 Scan Tool Display - Read Measuring Value Block, Initiating - Multi-Function Steering Wheel (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Press -Q- button to confirm input.

Indicated on display

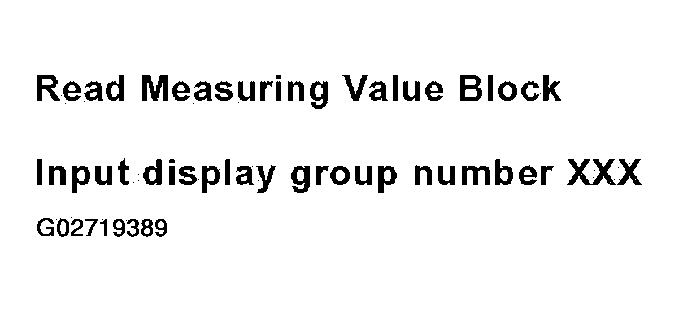

Fig 3: VAG1551 Scan Tool Display - Read Measuring Value Block, Initiating - Multi-Function Steering Wheel (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Enter desired display group number from table. See DISPLAY GROUP OVERVIEW:  . Press -Q- button to confirm input.

The selected measuring value block is now displayed in standard form.
