Diagnostic Trouble Code (DTC) Memory, erasing (function 05): Requirements
- DTC memory checked. See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING (FUNCTION 02) .
- All malfunctions repaired.
After successful DTC memory check:

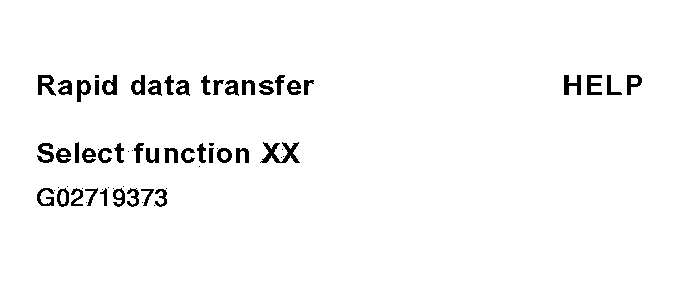

Indicated on display
- Press buttons -0- and -5- to select "Erase DTC memory", function 05.

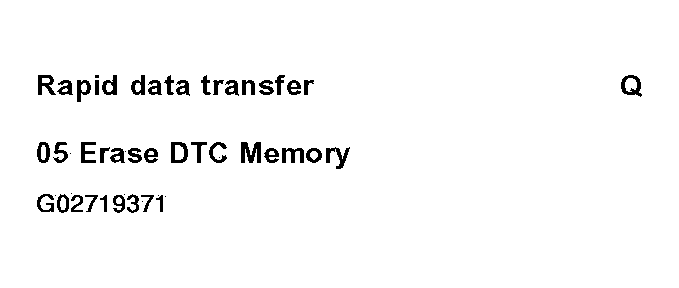

Indicated on display
- Press -Q- button to confirm input.

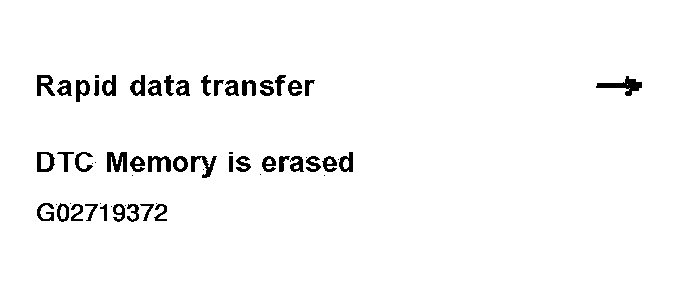

Indicated on display
DTC memory is erased.
- Press --> button.
Indicated on display
NOTE:
Follow test sequence exactly: first check DTC memory, repair malfunction(s) if necessary, then erase.

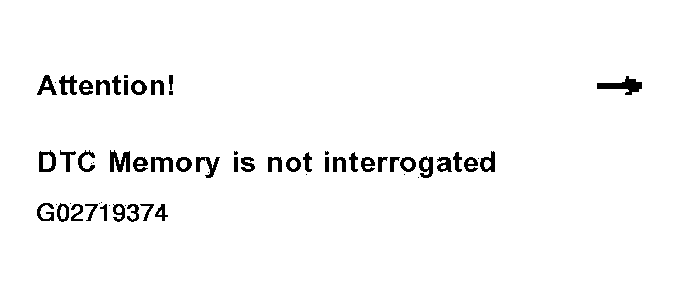

- Test sequence is faulty if this message is displayed.

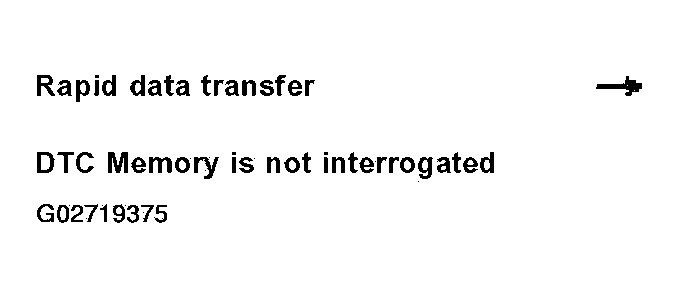

- Test sequence is faulty if this message is displayed.
Follow test sequence exactly: first check DTC memory, repair malfunction(s) if necessary, then erase.
