Diagnostic Trouble Code (DTC) Memory, checking (function 02)
NOTE:
The displayed DTC information is updated only when initiating OBD or with "Erase DTC Memory" function 05.
- Switch printer on via the PRINT button (indicator lamp in button lights up.)
Indicated on display
Fig 1: VAG1551 Scan Tool Display - Diagnostic Trouble Code Memory, Checking, Multi-Function Steering Wheel (1 Of 5)

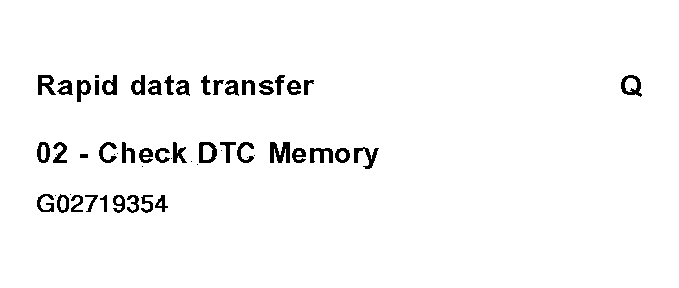

- Press buttons -0- and -2- to select "Check DTC memory", function 02.
Indicated on display
Fig 2: VAG1551 Scan Tool Display - Diagnostic Trouble Code Memory, Checking, Multi-Function Steering Wheel (2 Of 5)
- Press -Q- button to confirm input.

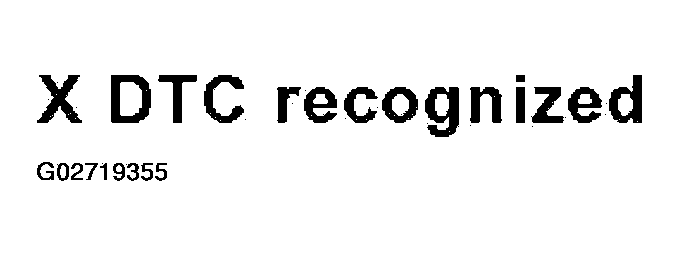

The number of stored malfunctions appears in the display.
Fig 3: VAG1551 Scan Tool Display - Diagnostic Trouble Code Memory, Checking, Multi-Function Steering Wheel (3 Of 5)
The stored malfunctions are displayed and printed out one after the other.
- Check print-out against DTC table and repair all malfunctions as necessary. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

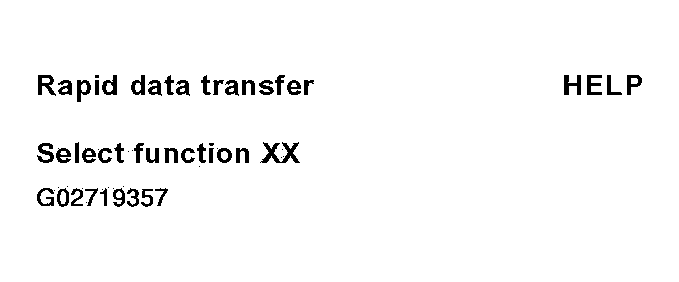

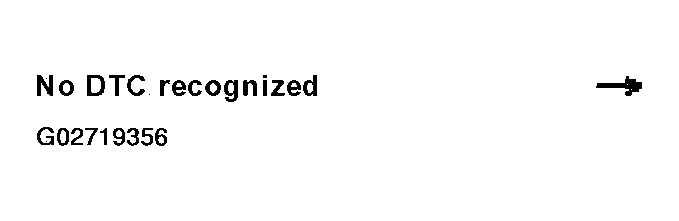

If "No DTC recognized!" is displayed, the program will return to "Select function XX" after the --> button is pressed.
Fig 4: VAG1551 Scan Tool Display - Diagnostic Trouble Code Memory, Checking, Multi-Function Steering Wheel (4 Of 5)
Indicated on display
Fig 5: VAG1551 Scan Tool Display - Diagnostic Trouble Code Memory, Checking, Multi-Function Steering Wheel (5 Of 5)
If something else is displayed:
See operating instructions of Scan Tool (ST).
- End Output (function 06). See END OUTPUT (FUNCTION 06) .
- Switch off ignition and disconnect diagnostic cables from Data Link Connector (DLC.)
