Check Control Module Versions (function 01)

Press buttons -0- and -1-.

Indicated on display:

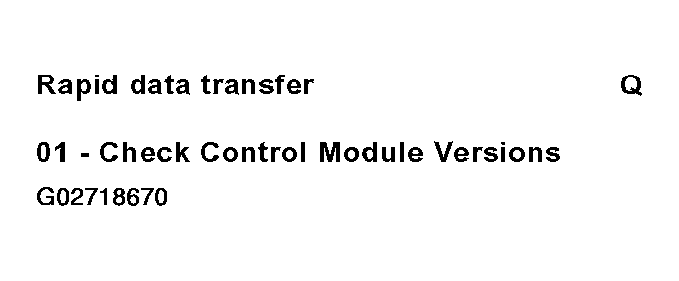

Fig 1: V.A.G 1551 Scan Tool (ST) Display - Driver's Seat Adjustment With Memory Control Module, Checking Control Module Versions (Function 01) (1 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Confirm entry with -Q- button.

Indicated on display:

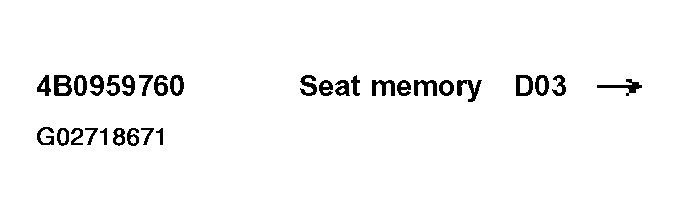

Fig 2: V.A.G 1551 Scan Tool (ST) Display - Driver's Seat Adjustment With Memory Control Module, Checking Control Module Versions (Function 01) (2 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Explanatory notes on display:

4B0959760: Control module number
4B0959760 A: Control module number with software version DO4 for new backrest motor
Seat memory: Component designation
D03: Software version of control module

NOTE: All replacement control modules are supplied with software version D04.

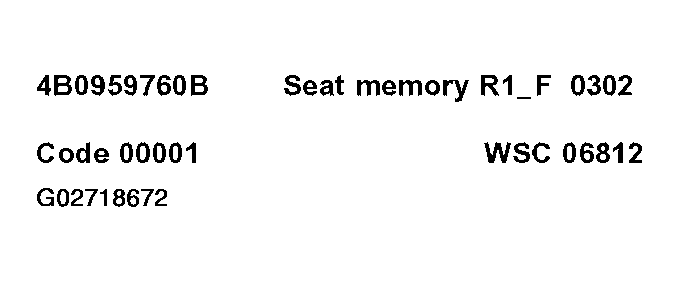

Fig 3: V.A.G 1551 Scan Tool (ST) Display - Driver's Seat Adjustment With Memory Control Module, Checking Control Module Versions (Function 01) (3 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Explanatory notes on display:

4B0959760B: Control module number
Seat memory R1_F: Component designation of control module for driver's seat
0302: Software version of control module
Code 00001: Coding. See CODE CONTROL MODULE (FUNCTION 07) .
WSC 06812: Workshop code

Pressing --> button effects return to basic function.

Indicated on display:

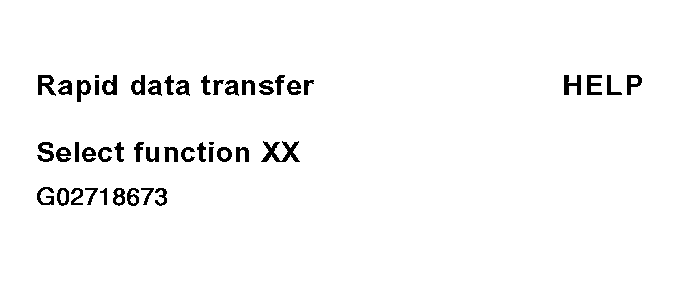

Fig 4: V.A.G 1551 Scan Tool (ST) Display - Driver's Seat Adjustment With Memory Control Module, Checking Control Module Versions (Function 01) (4 Of 4)

Courtesy of AUDI OF AMERICA, INC.
