ABS/ESP system, component overview

The following list pertains to Fig 1 .

1. Bracket for hydraulic control unit
   • Removing and installing, see HYDRAULIC CONTROL UNIT, REMOVING AND INSTALLING
2. Vacuum pump for brake servo
   • Only on gasoline engines in conjunction with an automatic transmission
3. ABS Control Module (w/EDL) -J104-
   • ABS Hydraulic Unit -N55- and ABS Control Module (w/EDL) -J104- (only on Bosch 5.7) form the hydraulic control unit.
   • Removing and installing, see HYDRAULIC CONTROL UNIT, REMOVING AND INSTALLING
4. ABS Hydraulic Unit -N55- with ABS Control Module (w/EDL -J104-
   • ABS Hydraulic Unit -N55 and ABS Control Module (w/EDL) -J104 (only on Bosch 5.7) form the hydraulic control unit.
   • Removing and installing, see HYDRAULIC CONTROL UNIT, REMOVING AND INSTALLING
5. Sender 1 for brake booster -G201-
   • Bolted onto hydraulic control unit
6. ABS Hydraulic Unit -N55- with ABS Control Module (w/EDL -J104-
7. Rotor for right front speed sensor
   • Checking, see CHECKING ROTOR ON REAR AXLE
8. Right Front ABS Wheel Speed Sensor -G45-
   • Removing and installing, see REMOVING AND INSTALLING SPEED SENSOR ON FRONT AXLE
9. Brake Fluid Level Warning Switch -F34-
10. Instrument cluster
11. Anti-Slip Control Switch -E132-
    • Location: on the center console
12. Steering angle sender -G85- for ESP
    • Location: Installed on the steering column

      See appropriate Air Bag Restraint System article.

    • Performing zero position compensation

    See Guided Fault Finding in VAS 5051

13. Sensor for transverse acceleration -G200 and sender for rotation Rate -G202-
    • Location: underneath the radio
    • Removing and installing, see SENSOR FOR TRANSVERSE ACCELERATION -G200- AND SENDER FOR ROTATION RATE -G202, REMOVING AND INSTALLING
14. Parking Brake Warning Light Switch -F9-
    • Location: on the parking brake lever assembly
15. Rotor for right rear speed sensor

    Checking:

    • FWD, see CHECKING ROTOR ON REAR AXLE
    • AWD, see REMOVING AND INSTALLING SPEED SENSOR ON REAR AXLE
16. Right Rear ABS Wheel Speed Sensor -G44-

    Removing and installing:

    • FWD, see CHECKING ROTOR ON REAR AXLE
    • AWD, see REMOVING AND INSTALLING SPEED SENSOR ON REAR AXLE
17. Left Rear ABS Wheel Speed Sensor -G46-

    Removing and installing:

    • FWD, see CHECKING ROTOR ON REAR AXLE
    • AWD, see REMOVING AND INSTALLING SPEED SENSOR ON REAR AXLE
18. Rotor for left rear speed sensor

    Checking:

    • FWD, see CHECKING ROTOR ON REAR AXLE
    • AWD, see REMOVING AND INSTALLING SPEED SENSOR ON REAR AXLE
19. Traction Control Indicator Light-K86-
    • Installation location: in instrument cluster
    • For further information refer to the Owner's Manual
20. ABS warning light -K47-
    • Installation location: in instrument cluster
    • For further information refer to the Owner's Manual
21. Warning light for brake system-K118-
    • Location: in instrument cluster in driver information system
    • For further information refer to Owner's Manual
22. Brake light switch -F-
    • Removing and installing the brake light switch, see BRAKE LIGHT SWITCH, REMOVING AND INSTALLING
    • Adjusting, see BRAKE LIGHT SWITCH, REMOVING AND INSTALLING
23. Rotor for front left speed sensor
    • Checking, see CHECKING ROTOR ON REAR AXLE
24. Left Front ABS Wheel Speed Sensor -G47-
    • Removing and installing, see REMOVING AND INSTALLING SPEED SENSOR ON FRONT AXLE

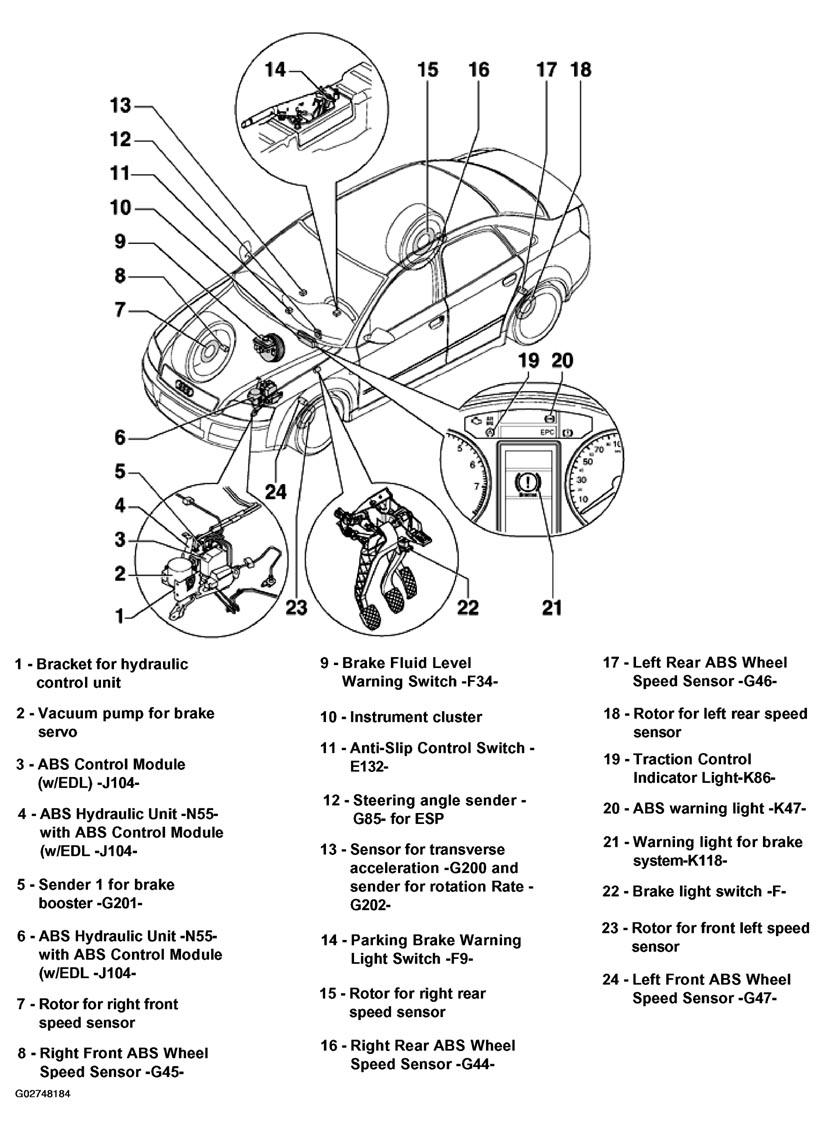

Fig 1: Identifying ABS/ESP System Components
Courtesy of AUDI OF AMERICA, INC.
