Home >> Audi >> 2002 >> S8 >> Repair and Diagnosis >> Electrical >> Gauges >> Interior Trim >> Trim >> Grab handle, removing >> Notes

Grab handle, removing: Notes

Fold covers -1- from bottom to top.
Remove screws -2-.

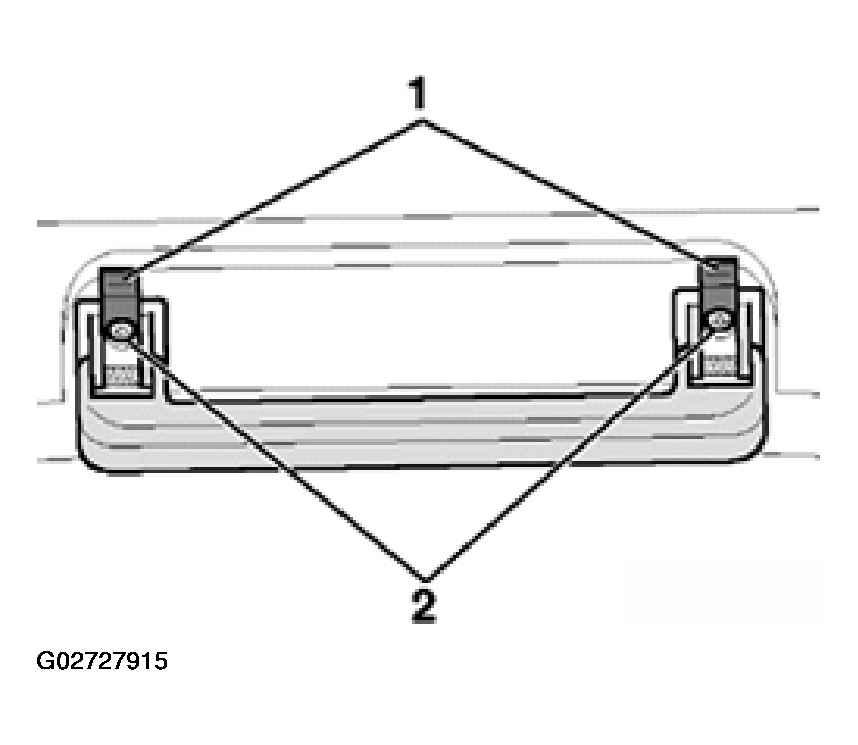

Fig 1: Folding Covers & Removing Screws

G02727915

Courtesy of AUDI OF AMERICA, INC.
