Front Bumper: S4

  1. Remove Torx(R) screws at wheelhousing liner. See Fig 1 . Remover air inlet grill. Remove left and right combination bolts. Unclip bumper from bracket in direction of arrow. Pull bumper away from vehicle to remove.
  2. To install, reverse removal procedure. Tighten fasteners to specifications. See appropriate TORQUE SPECIFICATIONS  table.

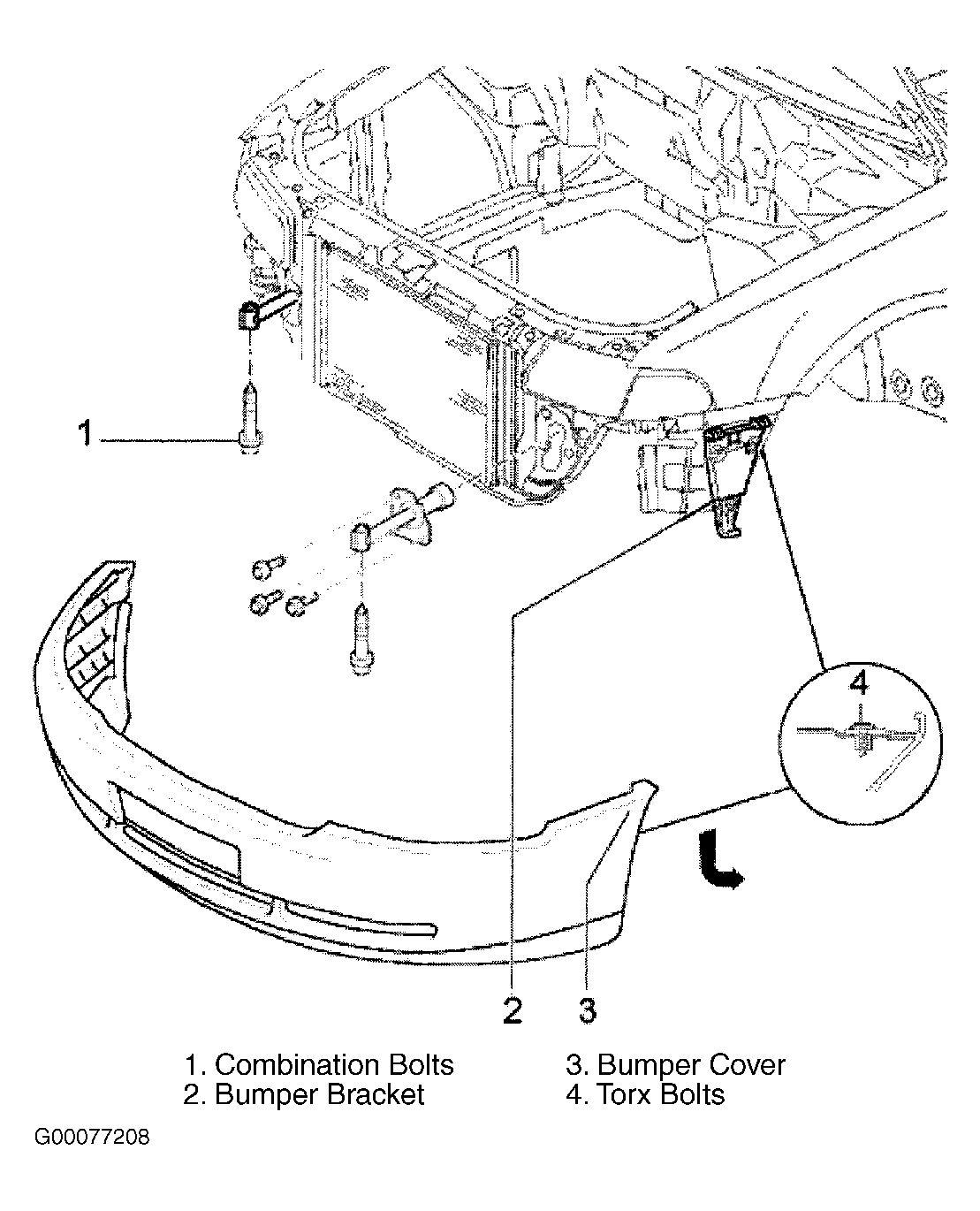

Fig 1: Removing & Installing Front Bumper (S4)
G00077208Courtesy of AUDI OF AMERICA, INC.
