Fluid Capacity Chart (GROUP 00, NO. 01-02)

Publication date: 2001-03-20
Reference number: GROUP 00, NO. 01-02

FLUID CAPACITY CHART

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 00, NO. 01-01, Date of Issue: March 20, 2001

AUDI:	2000-2001 models
GROUP:	00 - General

FLUID CAPACITY CHART

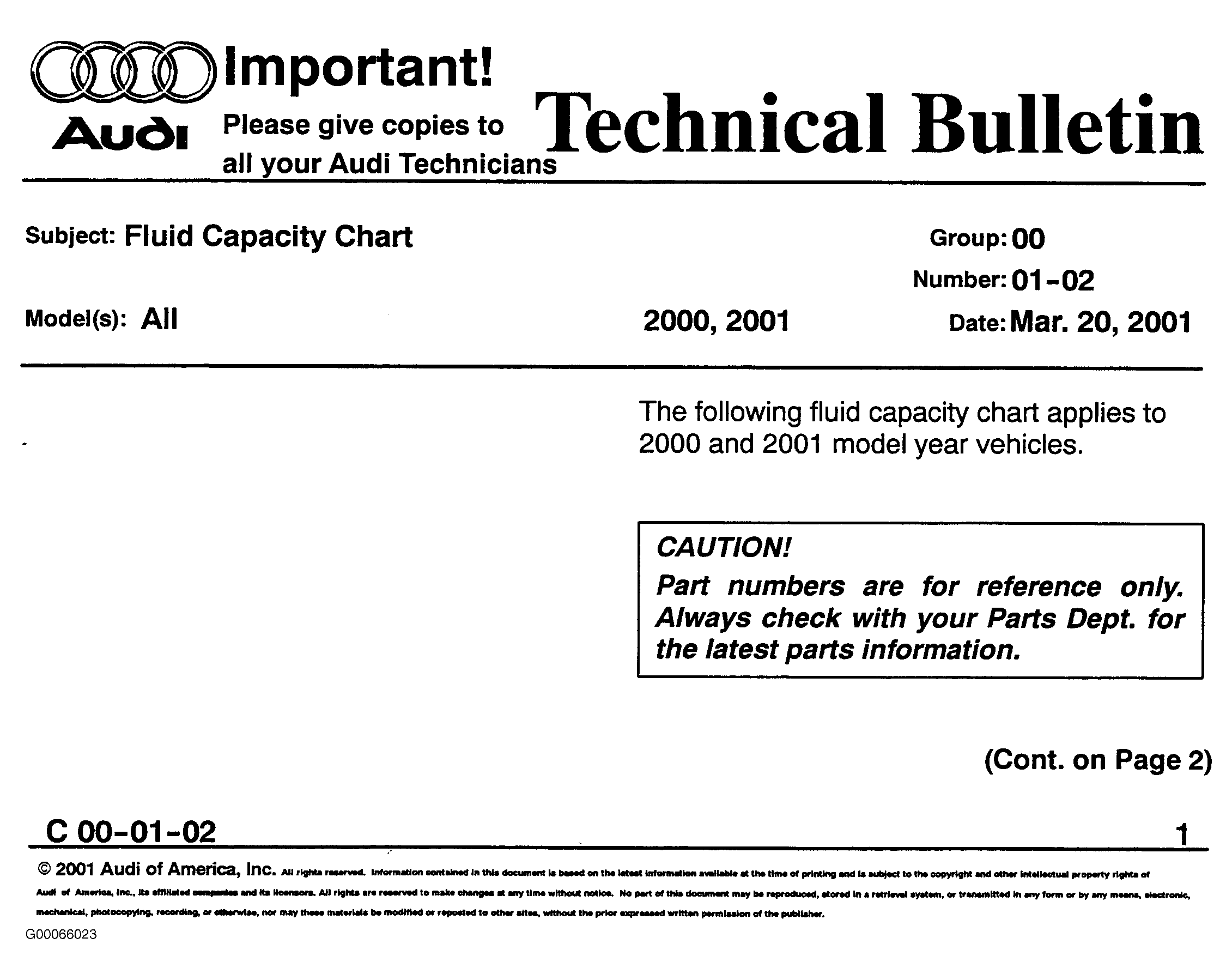

Fig 1: Page 1 of Bulletin

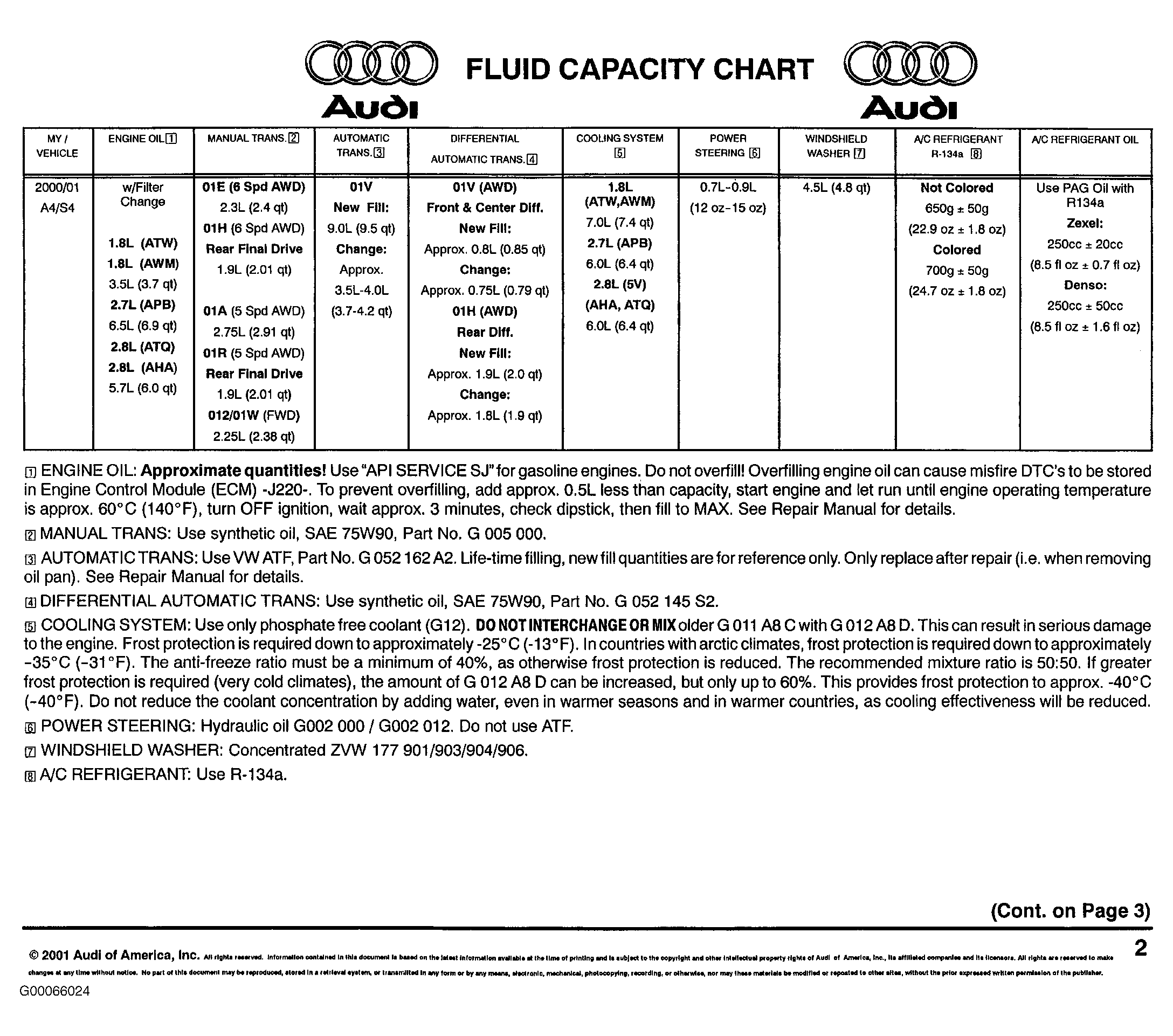

Fig 2: Page 2 of Bulletin

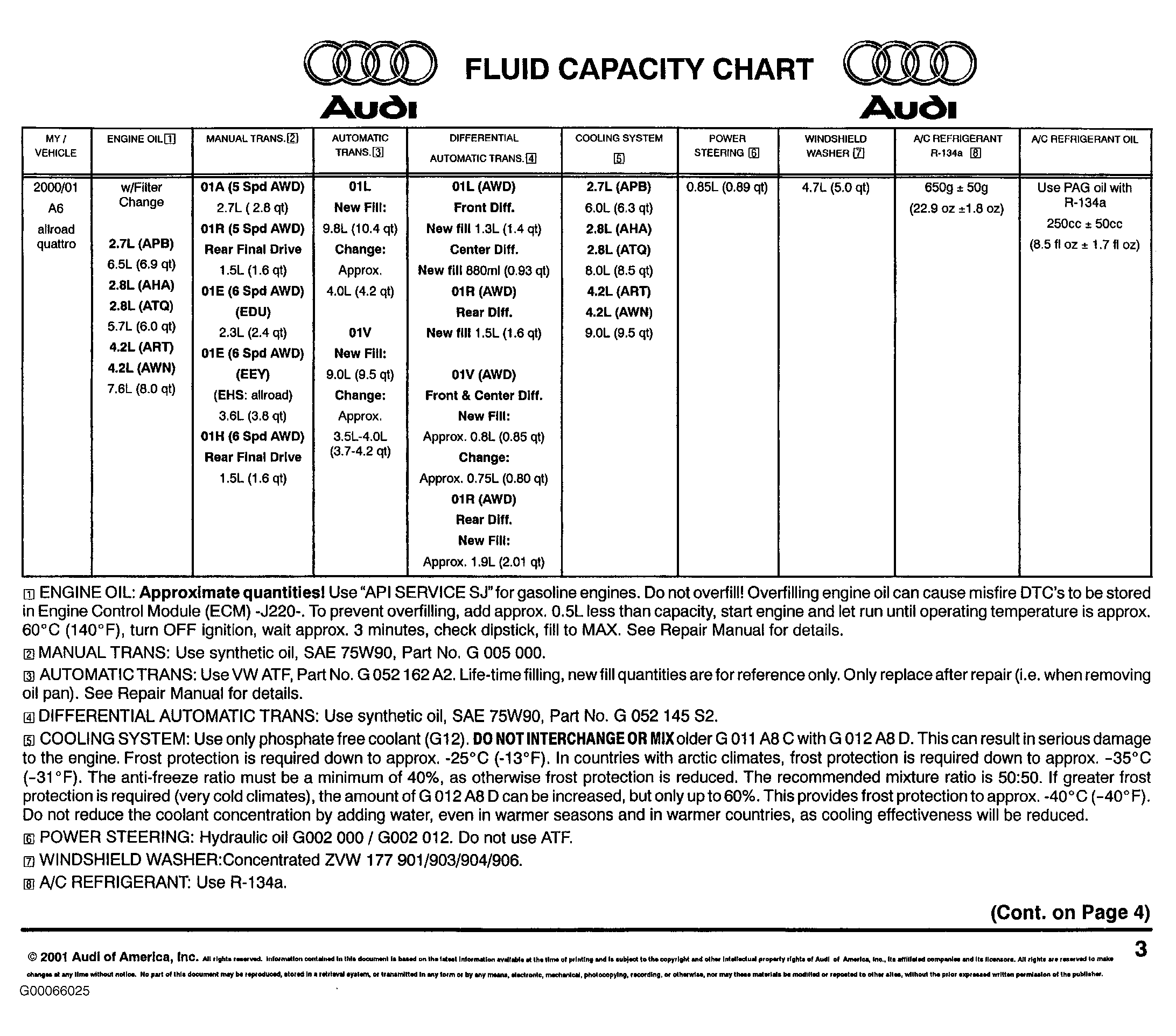

Fig 3: Page 3 of Bulletin

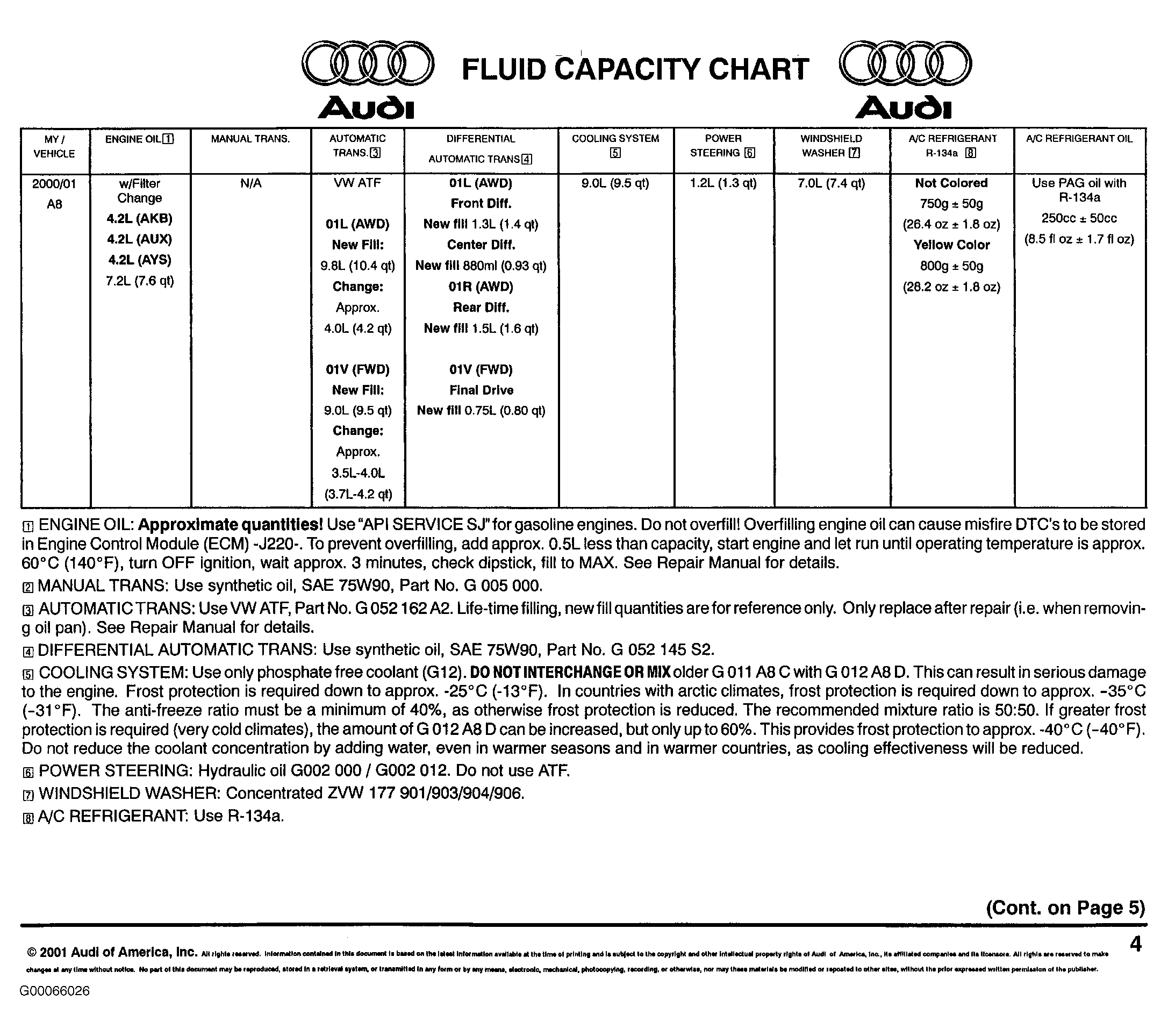

Fig 4: Page 4 of Bulletin

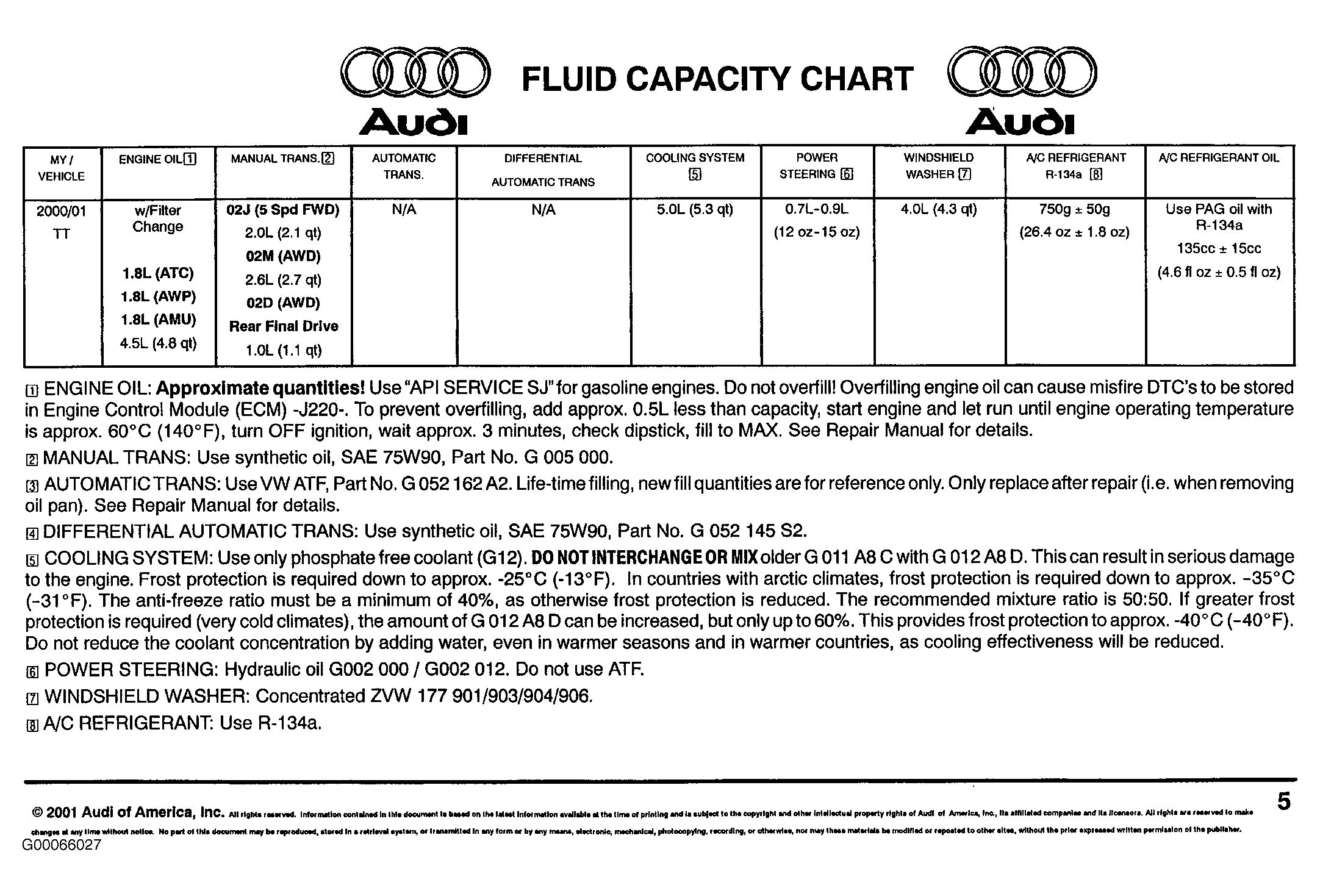

Fig 5: Page 5 of Bulletin
